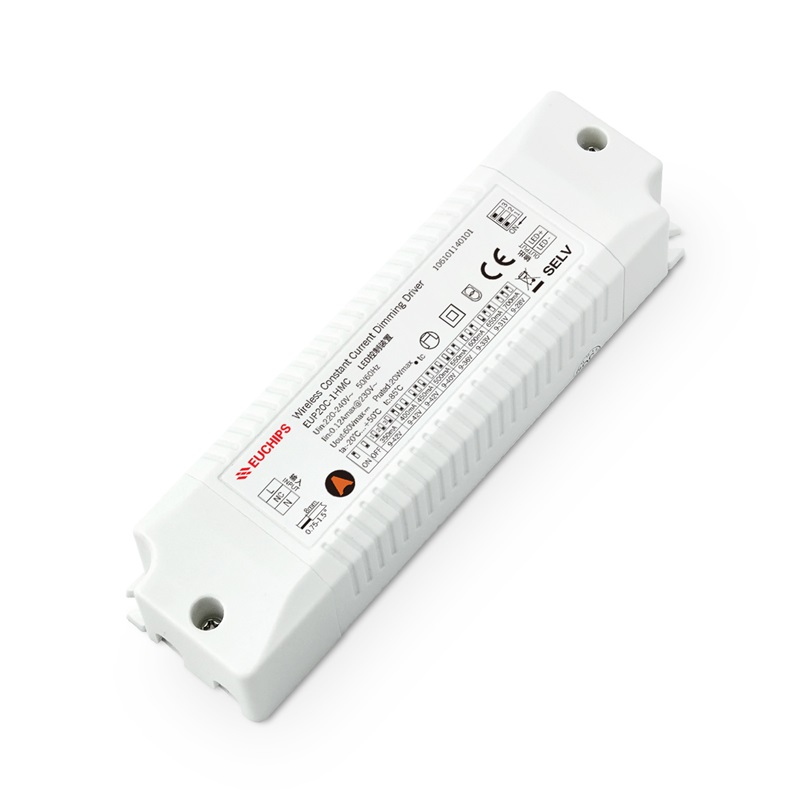

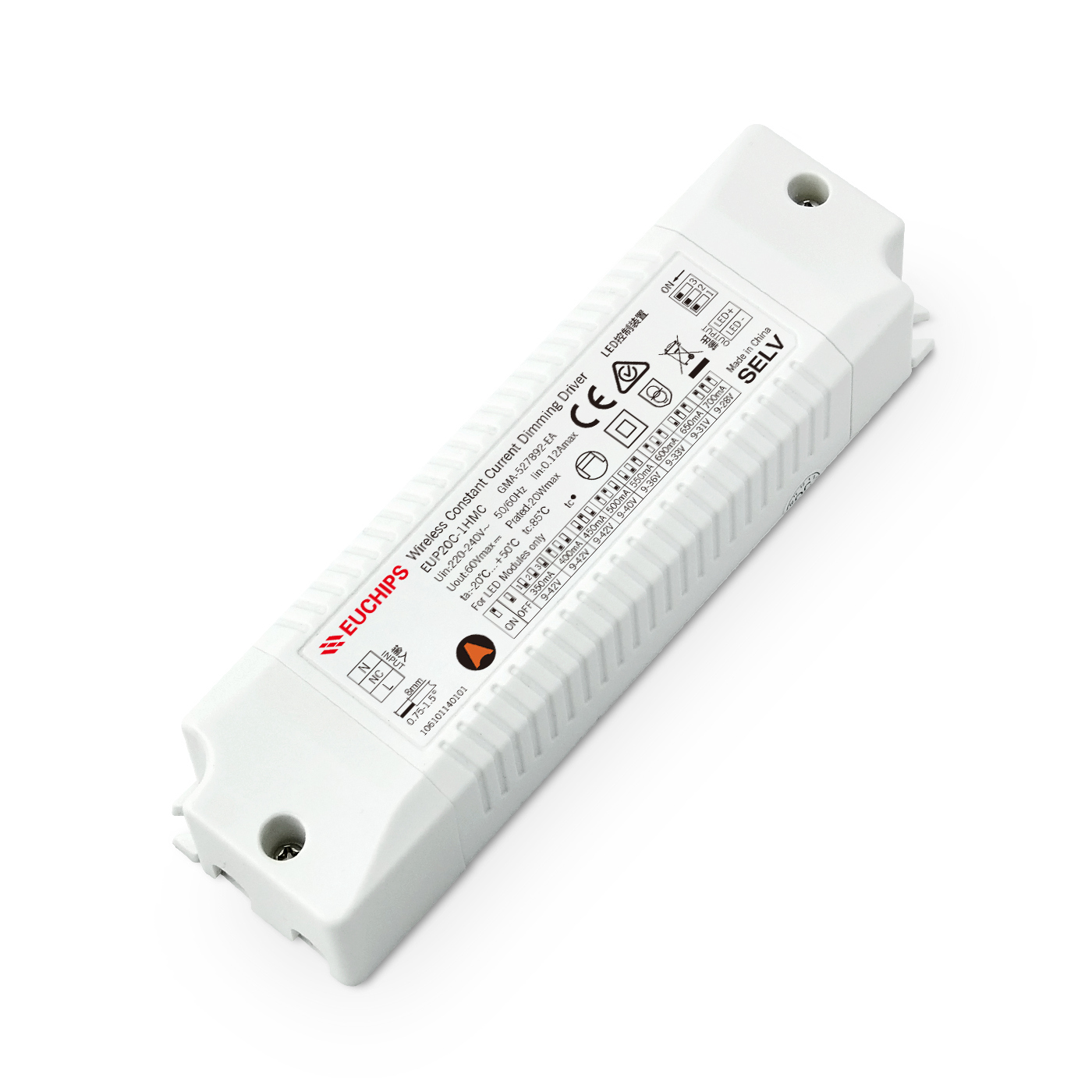

20W 350~700mA Casambi CC Dimming Driver EUP20C-1HMC
20W 350~700mA Casambi CC Dimming Driver EUP20C-1HMC
EUP20C-1HMC is a 20W AC/DC constant current mode output LED driver, multiple current selectable by DIP switch, Using Casambi wireless control and dimming, the curve is smooth and flicker free.
Features
· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Overload, overvoltage, short circuit protection
· 50,000-hour lifespan with a 5-year warranty
· IP20 protection rating, suitable for indoor Class I, II, and III luminaires
Technical Parameters
Model | EUP20C-1HMC | ||
Input | Efficiency | >84%@230VAC,Full load | |
Voltage | 220VAC-240VAC | ||
Frequency Range(Hz) | 50/60Hz | ||
Power Factor | ≥0.95@230VAC,Full load | ||
THD(full load) | <10%@230VAC, Full load | ||
AC Current(max) | 0.12Amax@230VAC | ||
Standby power | <1W | ||
Inrush Current(max) | Cold start,8.42A(twidth=20us measured at 50% Ipeak)@230VAC | ||
Output | Current(mA)/Voltage (VDC) Power(W) | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W
550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-31VDC/20.15W 700mA/9-28VDC/19.6W |
|
Ripple Current | <3% | ||
Channel | 1 | ||
Current Tolerance | ±7% | ||
No load output voltage | 60V Max<1s, at230Vac | ||
Turn on delay Time | |||
Function | Dimming Type | Bluetooth 4.0 or 5.0 Low Energy(BLE) | |
Dimming Range | 0.5%-100% Dimming to off | ||
Protection | Short Circuit | No output, self-recovery after fault resolution. | |
Overload | Hiccup, self-recovery after fault removal. | ||
Overvoltage | Hiccup, self-recovery after fault removal. | ||
Safety& EMC | Surge | L-N:2KV | |
Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
Others | Working Temp. | -20℃~50℃ | |
Storage Temp., Humidity | -40℃~85℃, 20-90%RH | ||
tc | 85℃ | ||
Material | PC | ||
IP Rating | IP20 | ||
Lifetime | 50,000h@tc:85℃ | ||
Warranty Condition | 5 Years | ||
Switch Cycle | >25,000 times | ||
Packing(weight) | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
Dimension | 150*43*29mm(L*W*H) |
