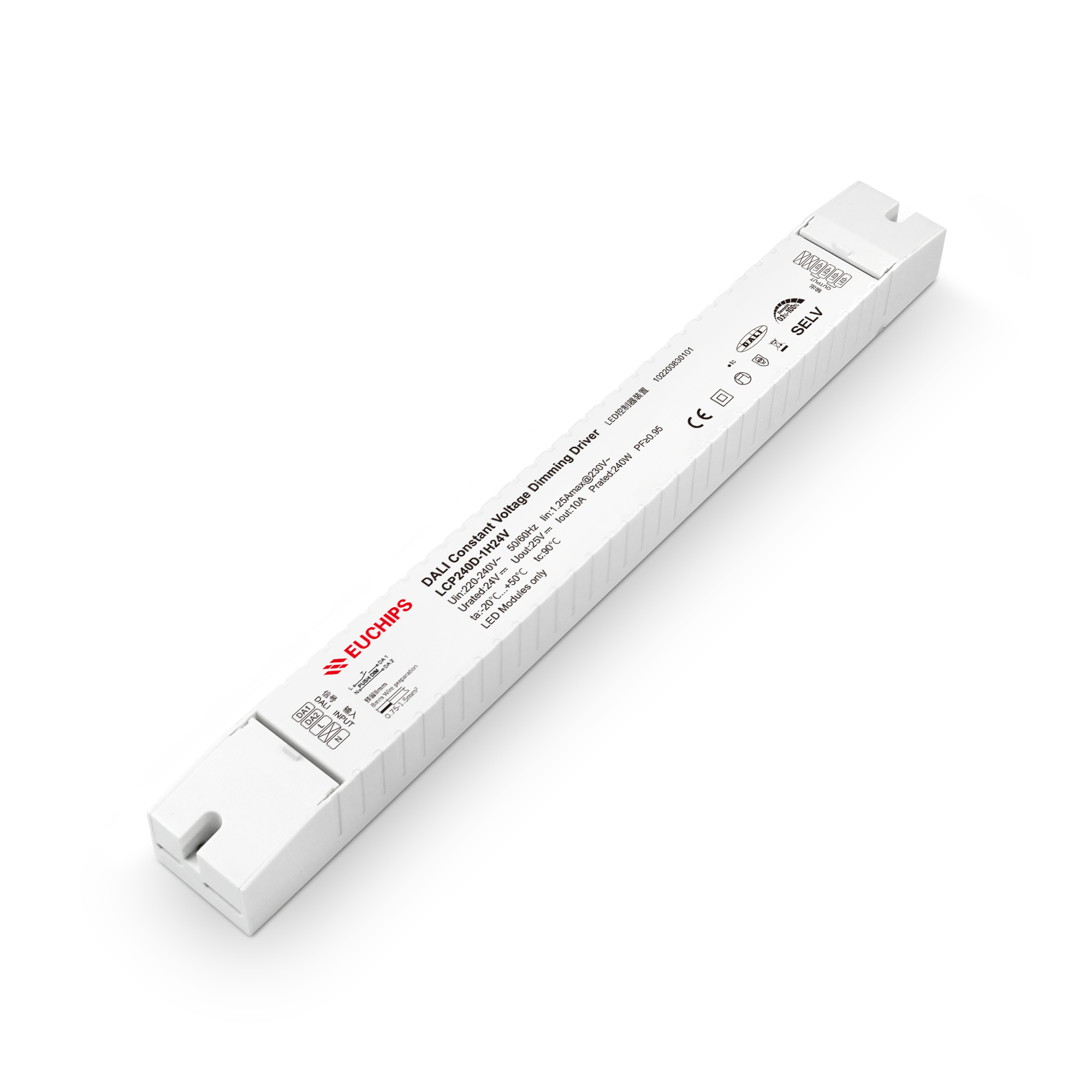

240W 24VDC DALI CV Driver LCP240D-1H24V
240W 24VDC DALI CV Driver LCP240D-1H24V
LCP240D-1H24V is a constant voltage output LED dimmer driver. The driver complies with DLAI standard protocol IEC62386 and supports DALI and Touch DIM dimming.
Features
· Single channel constant voltage output,10A Max
· High input voltage of 220VAC ~ 240VAC
· Meet DALI protocol IEC 62386
· Dimming effect smooth, no flicker
· Over load protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
|
Model |
LCP240D-1H24V | |
|
Input |
Efficiency | 93%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC,Full load | |
| THD(full load) | <8%@230VAC, Full load | |
| AC Current(max) | 1.2Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start, 60A@230VAC 439us | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 10A/24VDC/240W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 0.75s, at230Vac (When the light begins to shine) | |
| R & N (Max) | 3% | |
| Function | Dimming Type | DALI / Touch DIM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over load | Hiccup, recovers after fault condition is removed |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
|
Safety& EMC |
Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 95℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:95℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 730g±5%/PCS; 25PCS/Carton;19kg±5%/Carton; Carton Size:377*241*196mm(L*W*H) | |
| Dimension | 360*40*32mm（L*W*H） | |
