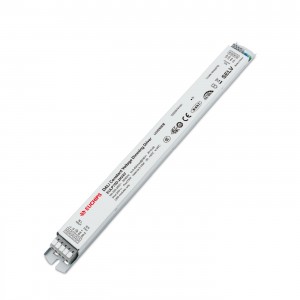

75W 24VDC 2ch DALI CV Drivers EULP75D-2H24V
EULP75D-2H24V is a constant voltage mode output LED driver. It supports DALI standard protocol and adjustment of brightness and colour temperature.
Features
· 2 channels of constant voltage output, each carrying 3.125A ; separately ; When carrying multiple loads, the cumulative load shall not exceed 6.25A
· Meet DALI protocol IEC 62386-101 102 207 209 (DT8)
· Short circuit protection, overcurrent protection, overload protection
· Dimming effect smooth, no flicker
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | EULP75D-2H24V | |
|
Input |
Rated supply voltage | 220-240VAC |
| Input voltage range | 198-264VAC | |
| Input voltage range (DC) | 180-280VDC | |
| Input Current | 0.45max @ 230VAC | |
| Input Frequency range | 50/60Hz | |
| Inrush Current | Cold start,35A@230VAC 310us | |
| Effciency | >91%@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Power factor | >0.95@230VAC, Full load | |
| Standby power | <0.5W@230VAC | |
| No load power | <0.5W@230VAC | |
| Turn on time | <0.75s, @230Vac (time-to-first-light) | |
|
Output |
Current/Voltage/Power | 3.125A/24VDC/75W |
| Voltage Accuracy | ±5% | |
| Output Channel | 2 | |
| Load Regulation | ±3% | |
| Line Regulation | ±3% | |
| Current Overshoot | 5% | |
| Output frequency | 3.3K Hz | |
| No load output voltage | 25.2VDC | |
| Protection | Short-circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over Current | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overload | Load power ≥130% protection, Current Drop, Auto-recovery after Fault Clearance | |
|
Function |
Dimming Type | DALI (Touch DIM) |
| Dimming Range | 0.5%-100% | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
| Safety& EMC | Surge | L-N: 1000VAC , L-N-PG: 2000VAC , Combine wave |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA , I/P-PG:1500Vac/1min/<5mA , O/P-PG:500Vac/1min/<5mA , | |
| O/P-DIM(Signal port):1500Vac/1min/<5mA , | ||
| Safety Standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission EMC Immunity | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
|
Others |
RoHS | RoHS Directive 2011/65/EU, directives (EU)2015/863 |
| Working Temp. | -20℃~50℃ | |
| Storage Temp. Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ for safety & 75℃ for life | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| IP Rating | IP20 | |
| Material | Metal | |
| Packing(weight) | Net weight: 335g(0.739lb)±5%/PCS; 50PCS/Carton; 17.25kg(38.03 lb)±5%/Carton; Carton Size: 370*326*127mm(14.57*12.83*5Inch)(L*W*H) | |
