24W 24V 1A*1ch CV DALI Driver EUP24D-1H24V-0

Short Description:

  • Item No.: EUP24D-1H24V-0
  • Input Voltage: 220-240
  • Output Current: 1A*1CH
  • Output Voltage: 24
  • Output Power: 24
  • Dim Mode: Touch DIM
  • G.W.: 150
  • Size: 150*43*29

Product Detail

Product Tags

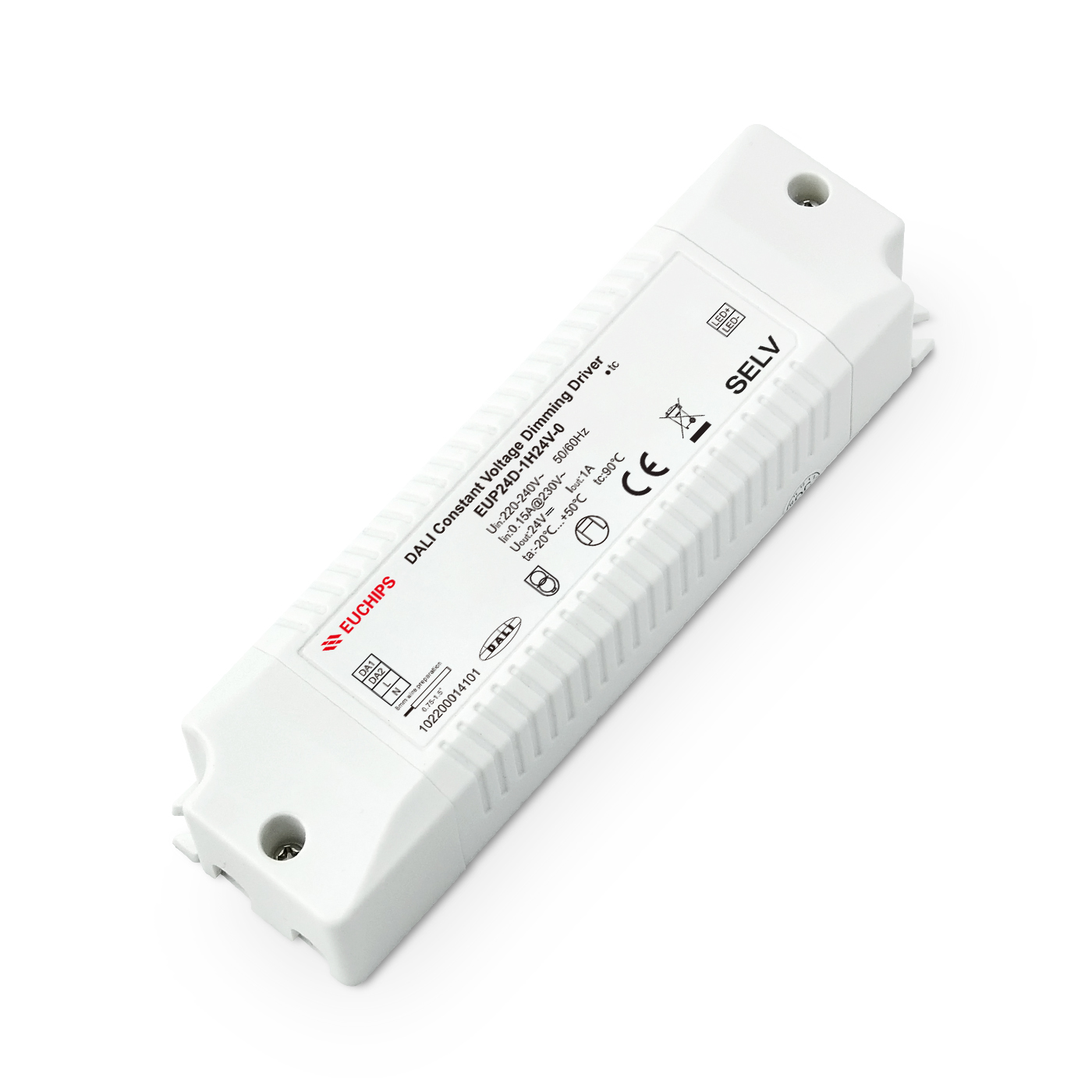

24W 1A*1ch DALI Constant Voltage LED Driver EUP24D-1H24V-0

EUP24D-1H24V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC62386. This driver can be connected to DALI main controller?or Touch DIM to achieve a smooth dimming effect.


1. Single channel constant voltage output, 1A Max

2. Meet DALI protocol IEC 62386

3. Support Touch DIM function

4. Dimming effect smooth, no flicker

5. Over load protection; over temperature protection, short circuit protection

6. IP20, suitable for indoor LED lighting

Technical Parameter

Model EUP24D-1H24V-0
Output Channels 1
Voltage 24VDC
Current 1A
Power 24W
Voltage Accuracy ㊣3%
Input Voltage 220-240VAC
Frequency 50/60HZ
Efficiency >85 %@230VAC,full load
PF >0.95@230VAC,full load
THD <10%@230VAC,full load
Current 0.15A@230VAC
Inrush Current Cold start,15A(twidth=40us measured at 50%Ipeak) @230VAC
Protections Over Temperature Close the output,automatically restore the normal temperature
Short Circuit Close output,recovers automatically after fault removed
Over Load Close output,recovers automatically after fault removed
Function Dimming Mode DALI, Touch DIM
Others Dimension 150*43*29mm
G.W. 150g
IP rating IP20
Working Temperature -20℃ ~ 50℃
Relative Humidity 20~90% RH
