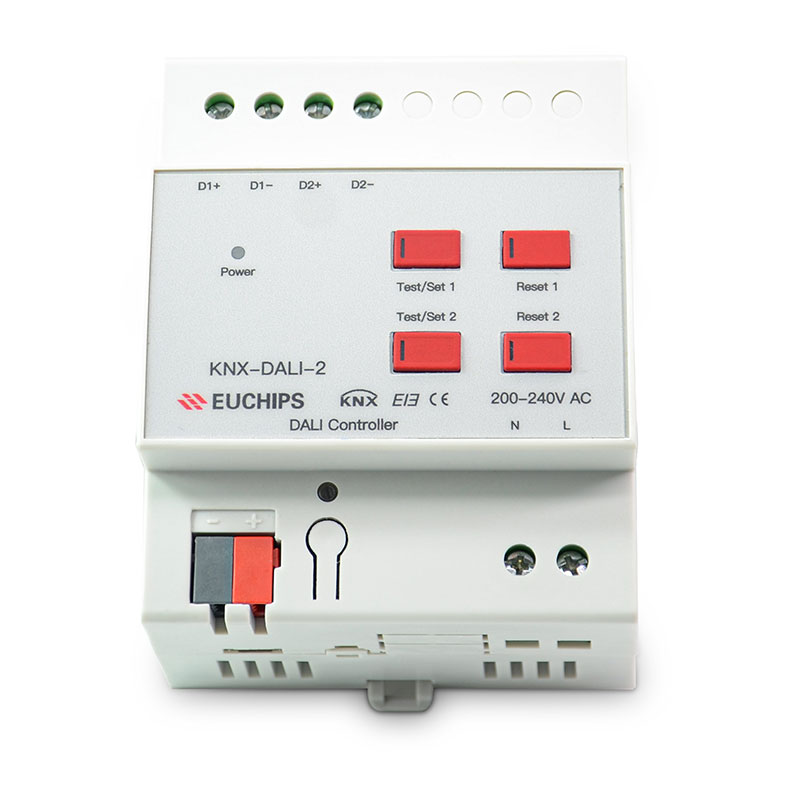

2ch DALI Gateway KNX-DALI-2

2ch DALI Gateway KNX-DALI-2

Features

· Each output channel of the KNX/DALI gateway supports 64 DALI devices, allowing for individual operations such as switching on and off, dimming, and setting brightness values for each DALI device
· Global scene control: Each output channel has 16 scenes available for invocation or storage, and the brightness values of the scenes are configured by the debugging software tool DCA or PC software
· Group control: Each output channel can be configured with 16 different groups. The allocation of devices within each group is achieved by ETS or debugging software tools. Operations such as on/off, dimming, and setting
brightness values can be performed on each group. Meanwhile, group control supports color temperature adjustment
· Group scene control: Each group can be allocated 8 KNX scenes or 16 DALI scenes. The brightness of the KNX scenes is configured by ETS, and the brightness of the DALI scenes is configured by the debugging software tool
· Each output channel can be configured with 8 operation templates. The switching and dimming control behaviors of each DALI device and DALI group can refer to the configuration of the templates or adopt the configuration of the ECG itself
· Status query and reply, such as switch, brightness, running time, etc
· Error detection of ballasts and lamps for DALI equipment
· Monitoring of DALI bus voltage, DALI bus current and DALI bus short circuit
· Channel broadcast control: Perform operations such as turning on and off, dimming, and setting brightness values for all DALI devices in the channel

Technical Parameters
