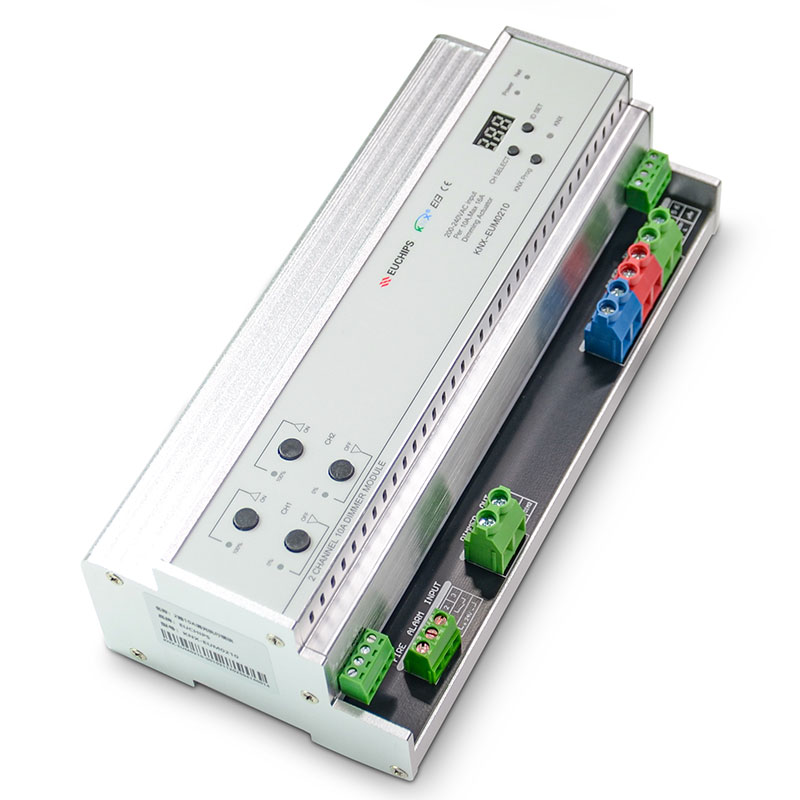

2ch Phase-cut Controller KNX-EUM0210
2ch Phase-cut Controller KNX-EUM0210
Features
· It has two independent circuit thyristor dimming outputs
· Supports manual control dimming function
· It has both relative dimming and absolute dimming functions
· It has the function of status report feedback
· It is equipped with a timed cycle function, which can achieve staircase light control and cyclic flashing control
· It has on-site preservation and restoration functions
· It has the function of scene combination control
· Dimming lamp range: LED spotlights, downlights, halogen lamps, quartz lamps, etc. Voltage dimming, output dimming type is front edge dimming
Technical Parameters
| Product model | KNX-EUM0210 |
| Main output | Two-channel thyristor dimming |
| Rated voltage | 200 ~ 240VAC |
| Working frequency | 50/60Hz |
| Bus voltage | 21-30VDC |
| Bus current | ≤12mA |
| Working power | ≤3.0 W |
| Output (for each loop) | 10A (The total maximum power of the two circuits is 3600W) |
| Shell material | Metal |
| Size | 220mm×102mm×68mm |
| Weight | 1.4KG |
| Installation method | 35mm DIN rail mounting |
| Working temperature | -5°C- 45°C |
| Storage temperature | - 25°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
| Relative humidity | Max 90% |
