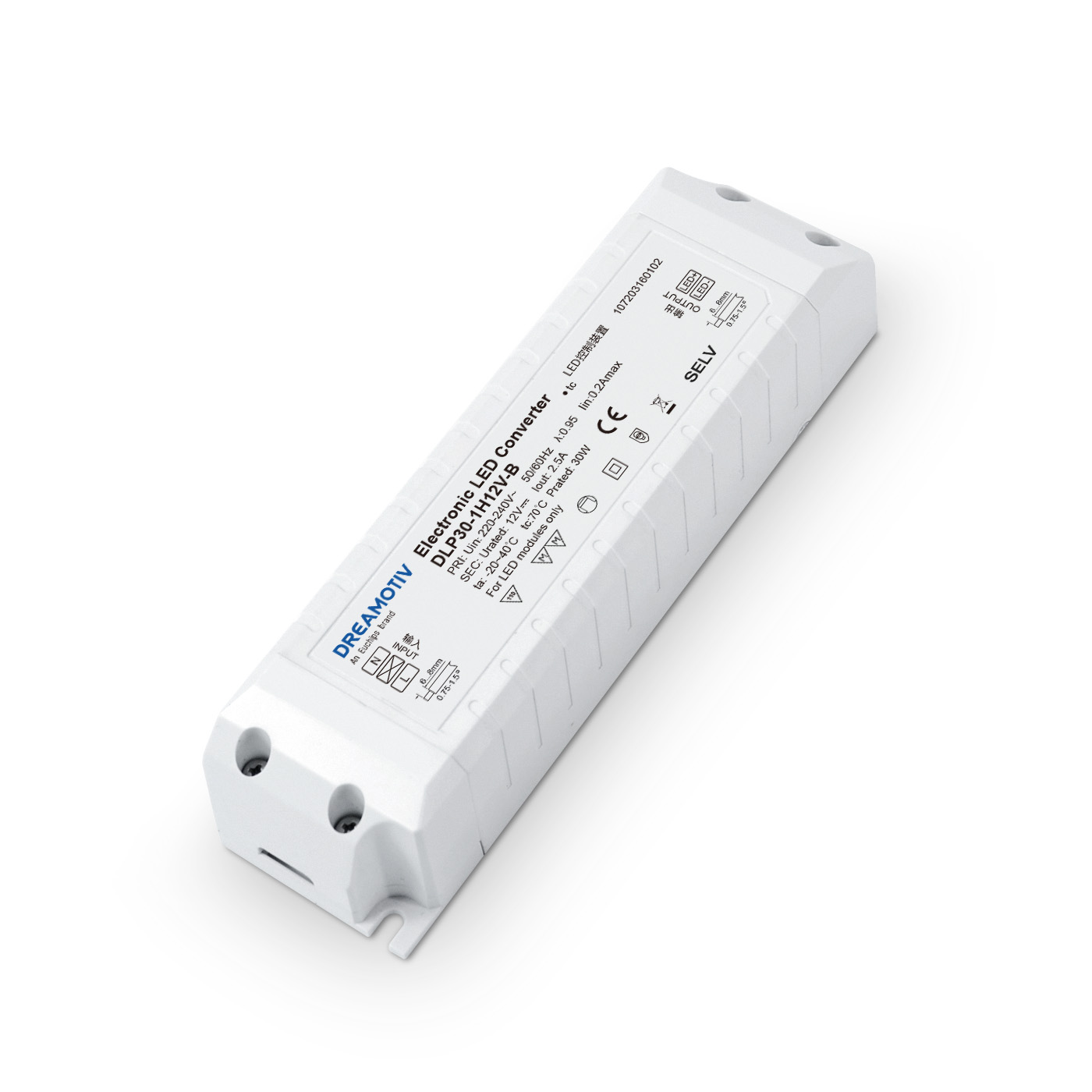

30W 12VDC Non-dimmable CV Driver DLP30-1H12V-B
30W 12VDC Non-dimmable CV Driver DLP30-1H12V-B
Feaures
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -15℃~+40℃, working temp
· Protections: Over Current, Over voltage, Over temperature, short circuit self-recovery protection
· The typical efficiency of the machine is up to 84%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Paramters
| Model | DLP30-1H12V-B | |
|
Input |
Efficiency | ≥84%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95 | |
| THD(full load) | <10% | |
| Current | 0.2Amax@230VAC | |
| No load power | <0.5W | |
| Inrush current | Cold start,40A@230VAC 130us | |
|
Output |
Current(mA) | 2.5A |
| Voltage (VDC) | 12VDC | |
| Power(W) | 30W | |
| Channel | 1 | |
| Ripple Voitage | ±5% | |
| Ripple current | ±3% | |
| Voltage Tolerance | ±5% | |
| No load output voltage | 12.6VDC max | |
| Turn on delay Time | ≤ 0.5 s, at230Vac (When the light begins to shine) | |
|
Protection |
Short Circuit | Short circuit No output, troubleshooting output normal |
| Over Current | Voltage drop, troubleshooting output normal | |
| Over load | Reduce current burp protection, troubleshoot normal output | |
| Safety& EMC | Surge | I/P-O/P:3750Vac/1min/<5mA |
| Withstand Voltage | Input-output: >3.75kV | |
| Safety Standards | IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
|
Others |
Working Temp. | -20℃~40℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 140g±5%/PCS;50PCS/Carton;8.0kg±5%/Carton; Carton Size:330*250*200mm(L*W*H) | |
| Dimension | 153*43*32mm（L*W*H） | |
