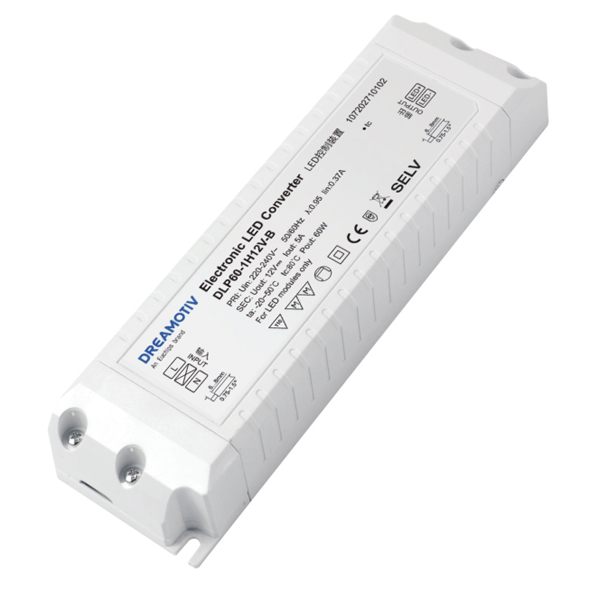

60W 12VDC Non-Dimmable CV Driver DLP60-1H12V-B
60W 12VDC Non-Dimmable CV Driver DLP60-1H12V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -20℃~+50℃, working temp
· Protections: Over Current, Over voltage, Thermal protection, Short circuit self-recovery protection
· The typical efficiency of the machine is up to 86%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Paramaters
| Model | DLP60-1H12V-B | |
|
Input |
Efficiency | ≥86%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, full load | |
| THD(full load) | <10%@230VAC, full load | |
| Current | 0.37Amax@230VAC | |
| Input Power@ None Load | 0.5W | |
| Inrush current | Cold start,17.5A@230VAC 330us | |
|
Output |
Current(mA) | 5A |
| Voltage (VDC) | 12VDC | |
| Power(W) | 60W | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | ≤0.5s, at230Vac | |
|
Protection |
Short Circuit | Hiccups, automatically recover after removal |
| Over Load | Protection, troubleshooting Output is normal | |
| Over voltage | Protection, troubleshooting Output is normal | |
| Thermal protection | 110 degree | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | Input-output: 3750Vac/1min/<5mA | |
| Safety Standards | IEC 62384:2006, GB24825-2009 | |
| EMC Eission | EN55015, EN61547 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -20℃~80℃ 5-95%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size:370*280*169mm(L*W*H) | |
| Dimension | 180*52*30mm（L*W*H） | |
