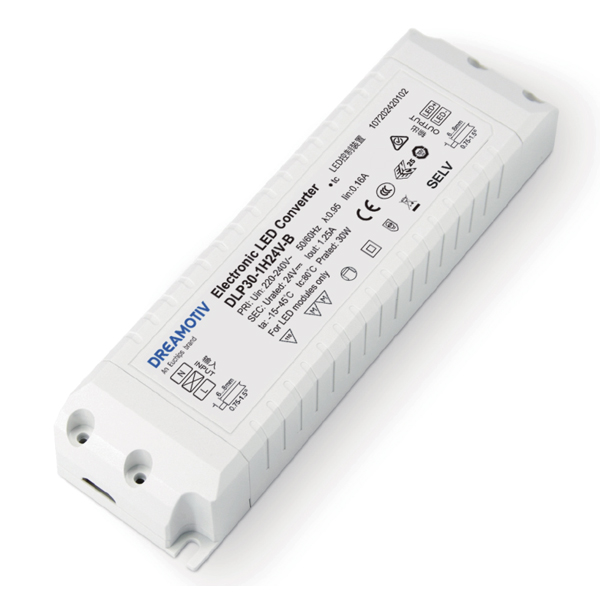

30W 24VDC Non-dimmable CV Driver DLP30-1H24V-B
30W 24VDC Non-dimmable CV Driver DLP30-1H24V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -15℃~+40℃, working temp
· Protections: Over Current, Over voltage, Over temperature, short circuit self-recovery protection
· The typical efficiency of the machine is up to 85%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Parameters
| Model | DLP30-1H24V-B | |
| Input | Efficiency | 85% |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95 | |
| THD(full load) | 10% | |
| Current | 0.16A | |
| Input Power@ None Load | 0.5W | |
| Output | Current(mA) | 1.25A |
| Voltage (VDC) | 24VDC | |
| Power(W) | 30W | |
| Voltage ripple | 300mV | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 0.5s | |
| Protection | Short Circuit | YES |
| Over Current | YES | |
| Over Voltage | YES | |
| Thermal protection | 110 degree | |
| Safety& EMC | Surge | L-N:1.2KV |
| Withstand Voltage | Input-output: >3.75kV | |
| Safety Standards | IEC 62384:2006, GB24825-2009 | |
| EMC Eission | EN55015、EN61547 | |
| Others | Working Temp. | -15℃~45℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS;50PCS/Carton;–kg±5%/Carton; Carton Size:316*234*179mm(L*W*H) | |
| Dimension | 153*43*32mm（L*W*H） | |
