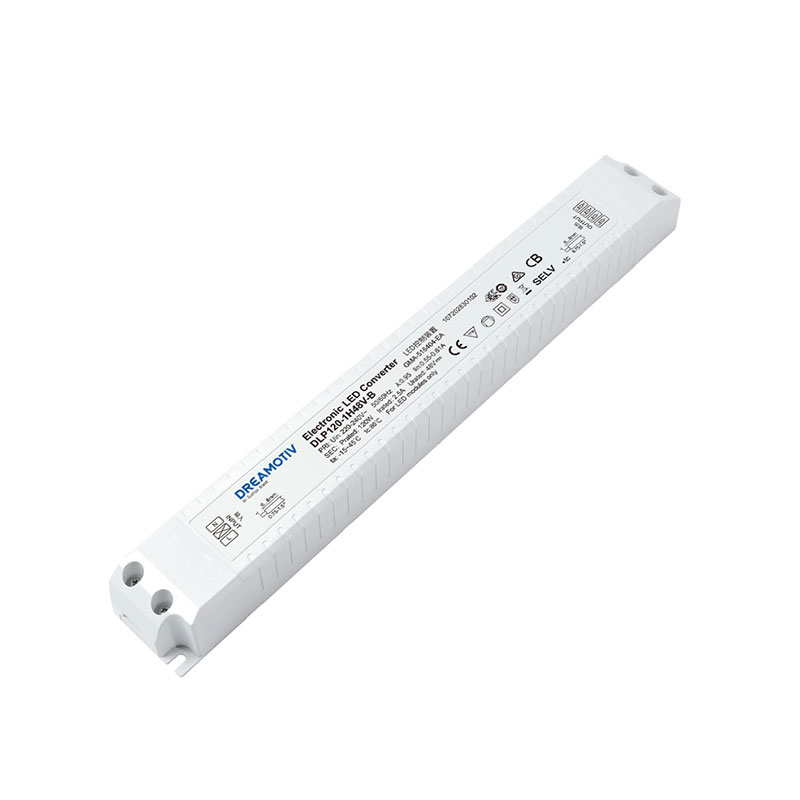

120W 48VDC Non-dimmable CV Driver DLP120-1H48V-B
120W 48VDC Non-dimmable CV Driver DLP120-1H48V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -15℃~+40℃, working temp
· Protection type: overload, short-circuit self-recovery protection
· The typical efficiency of the machine is up to 89%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Paramaters
| Model | DLP120-1H48V-B | |
|
Input |
Efficiency | ≥89%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Current | 0.67A Max | |
| THD(full load) | <10%@230VAC, Full load | |
| Inrush current | Cold start,40A@230VAC 100us | |
| Turn-on delay time | ≤ 0.5s, at230Vac (When the light begins to shine) | |
| Input Power@ None Load | 0.5W | |
|
Output |
Current(mA) | 2.5A |
| Voltage (VDC) | 48VDC | |
| Power(W) | 120W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| No load output voltage | 50.4V max | |
| Protection | Short Circuit | Short circuit no output, troubleshooting output normal |
| Over load | RReduce current burp protection and troubleshoot normal output | |
|
Safety& EMC |
Surge | L-N:1.2kV test |
| Withstand Voltage | Input-output: >3.75kV | |
| Performance standard | IEC 62384:2006, GB24825-2009 | |
| Immunity & EMI | EN55015、EN61547 | |
|
Others |
Working Temp. | -15℃~45℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Life by T case Life | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 30PCS/Carton; 10.7kg±5%/Carton; Carton Size:314*227*214mm(L*W*H) | |
| Dimension | 300*40*30mm（L*W*H） | |
