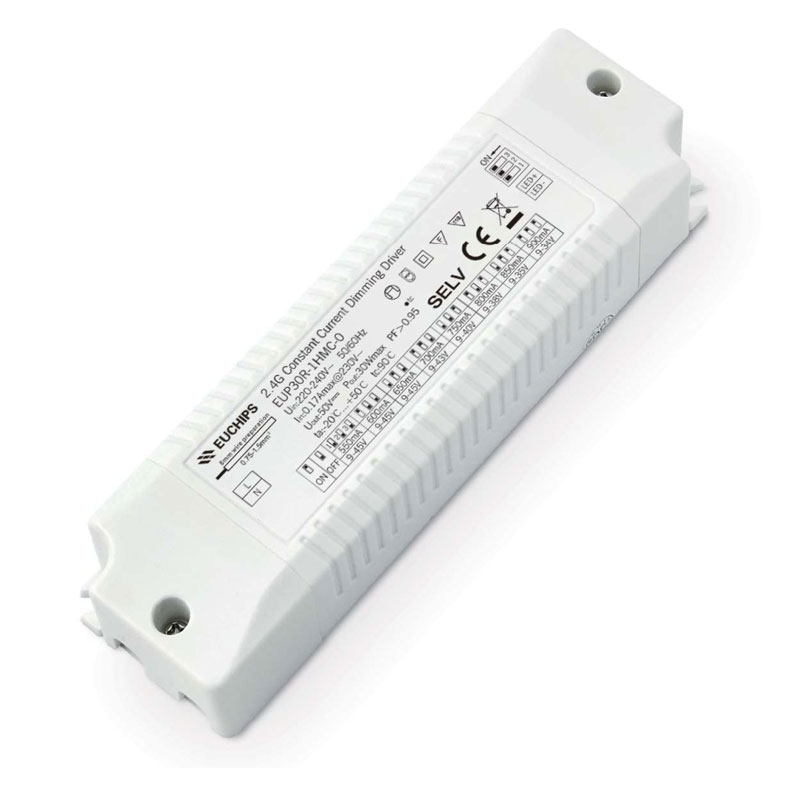

30W 550~900mA*1ch 2.4G CC LED Driver EUP30R-1HMC-0

Short Description:

  • Item No.: EUP30R-1HMC-0
  • Output Power: 30

Product Detail

Product Tags

30W 550/600/650/700/750/800/850/900mA*1ch 2.4G Constant Curent LED Driver EUP30R-1HMC-0

EUP30R-1HMC-0 is a constant output mode LED driver. The output current can be easily set via DIP switch, This driver could be controlled by the 2.4G remote to dim lightings. Each driver could at the same time be matched and controlled by 10 remotes, and one remote can match unlimited drivers.


1. Single channel output, output current level selectable by DIP S.W

2. Using 2.4GHz RF remote control

3. Built-in active PFC function

4. Class 2 power supply. Full protective plastic housing

5. Dimming effect smooth, no flicker

6. Protections: Short circuit, over load, over temperature

7. Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameter

Model EUP30R-1HMC-0
Output Current 550mA 600mA 650mA 700mA
Voltage 9-45VDC 9-45VDC 9-45V 9-43VDC
Power 25W 27W 29.25W 30.1W
Current 750mA 800mA 850mA 900mA
Voltage 9-40VDC 9-38VDC 9-35VDC 9-34VDC
Power 30W 30.4W 29.75W 30.6W
Current accuracy ±5%
Maximum output voltage 50VDC
Output LF current ripple(< 120 Hz) <3%
Channels 1
Input Voltage 200– 240VAC
Frequency 50/60Hz
Power factor >0.95@230VAC,full load
Efficiency 83%@230VAC,full load
Current 0.20Amax@230VAC
THD <15%@230VAC, full load
Inrush current Cold start,15A(twidth =22us measured at 50% lpeak)@230VAC
Protections Short Circuit Close output, recovers automatically after fault removed
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced
Over Temperature Shut down the output, recovers automatically when temp. back to normal
Function Dimming 2.4GHz RF remote control
Others Dimension 150*43*29 mm
G.W. 130g
Working temp. -20℃ ~ 50℃
Relative humidity 20~90% RH
