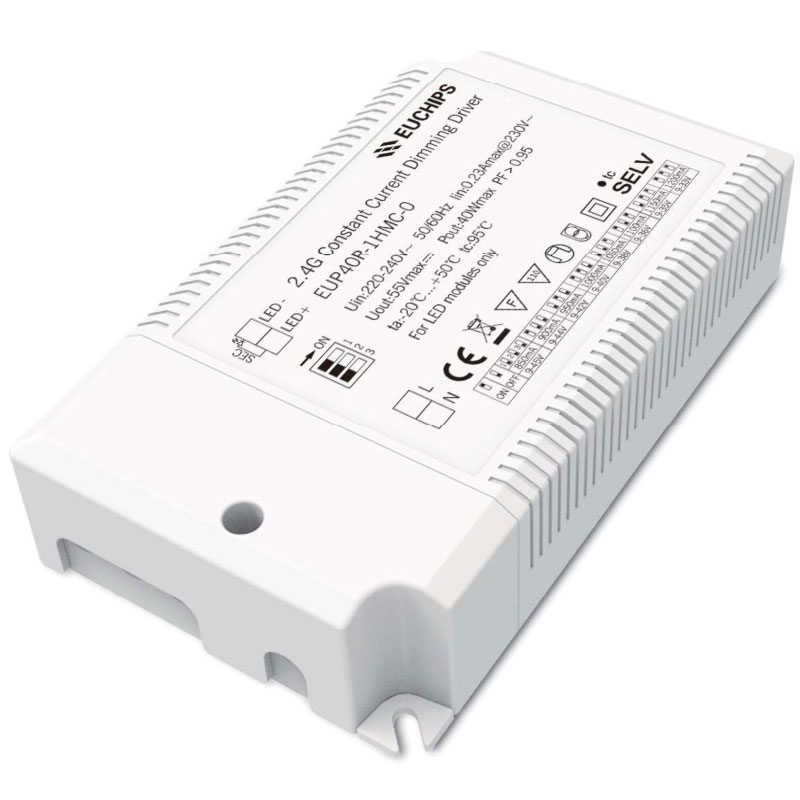

40W 850~1200mA*1ch 2.4G Constant Current LED Driver EUP40R-1HMC-0

Short Description:

  • Item No.: EUP40R-1HMC-0
  • Input Voltage: 220-240
  • Output Current: 850/900/950/1000/1050/1100/1150/1200mA*1CH
  • Output Voltage: 9-45
  • Output Power: 40
  • Dim Mode: 2.4GHz
  • G.W.: 225
  • Size: 137*82*31

Product Detail

Product Tags

40W 850/900/950/1000/1050/1100/1150/1200mA*1ch 2.4G Constant Current LED Driver EUP40R-1HMC-0

EUP40R-1HMC-0 is a constant voltage mode output LED driver. This driver could be controlled by the 2.4G remote to dim lightings. Each driver could at the same time be matched and controlled by 10 remotes, and one remote can match unlimited drivers.



Product Features

· Single channel output, output current level selectable by DIP S.W.

· Using 2.4GHz RF remote control

· Wide input voltage of 220VAC ~ 240VAC

· High efficiency up to 88%

· Built-in active PFC function

· Dimming effect smooth, no flicker

· Protections: over load, short circuit,over temperature

· Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameters

Model EUP40R-1HMC-0
Output Current 850mA 900mA 950mA 1000mA
Voltage 9-45VDC 9-44VDC 9-42V 9-40VDC
Power 38.25W 39.6W 39.9W 40W
Current 1050mA 1100mA 1150mA 1200mA
Voltage 9-38VDC 9-36VDC 9-35VDC 9-33VDC
Power 39.9W 39.6W 40.25W 39.6W
Current accuracy ±5%
Maximum output voltage 55VDC
Output LF current ripple(< 120 Hz) <3%
Channels 1
Input Voltage 220– 240VAC
Frequency 50/60Hz
Power factor ≥0.95@230VAC,full load
Efficiency 88%@230VAC,full load
Current 0.23Amax@230VAC
THD <10%@230VAC, full load
No-load powerconsumption <0.5W
Inrush current Cold start,40A(twidth =12.8us measured at 50% lpeak)@230VAC
Protections Short Circuit after fault removed Close output, the output current recovers automatically
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced
Over Temperature Shut down the output, recovers automatically when temp. back to normal
Function Dimming 2.4GHz RF remote control
Others Dimension 137*82*31 mm
G.W. 225g
Working temp. -20℃ ~ 50℃
Relative humidity 20~90% RH
