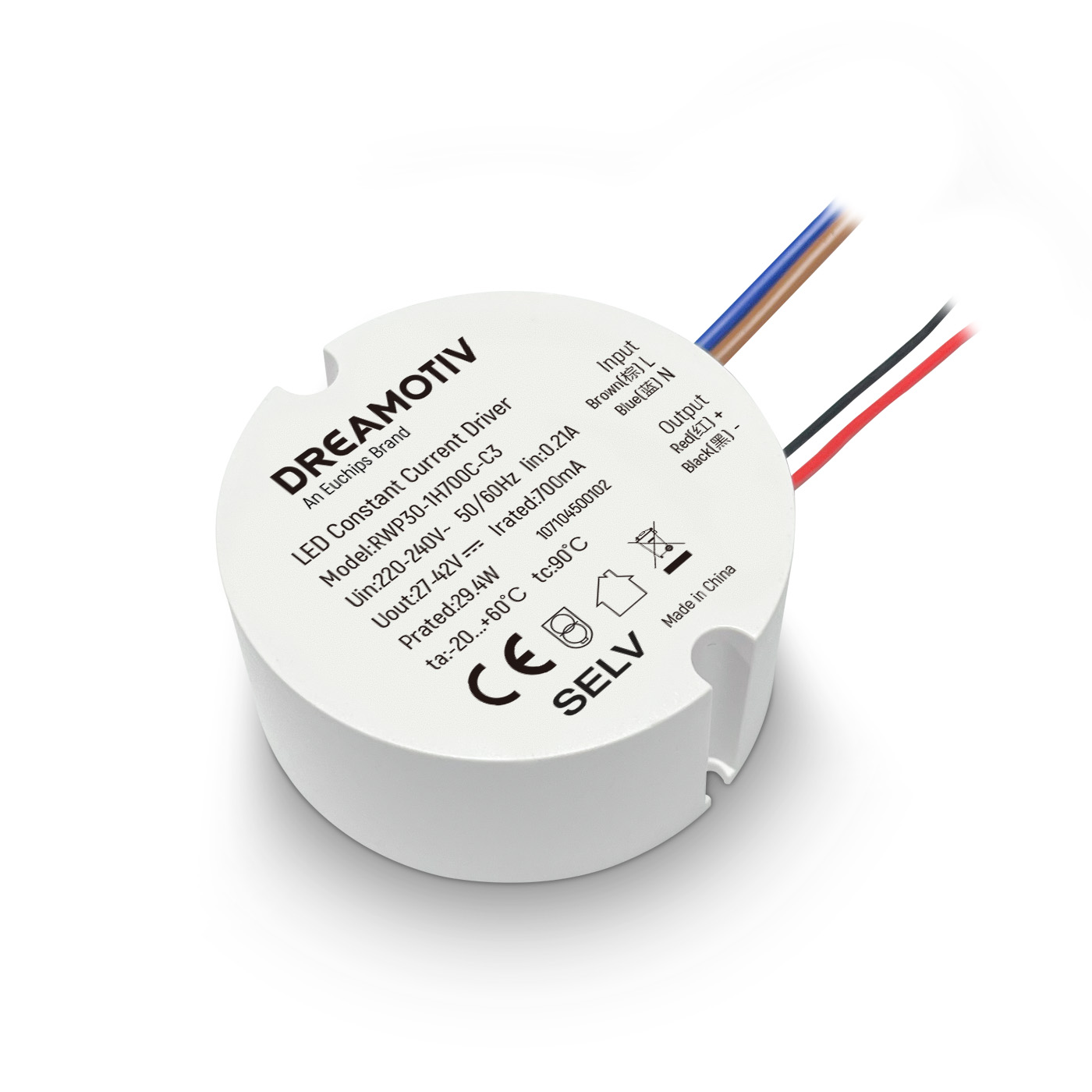

30W 700mA Non-dimmable CC LED Driver RWP30-1H700C-C3
30W 700mA Non-dimmable CC LED Driver RWP30-1H700C-C3
Features
· Isolated LED Driver for class I ，Class II LED Luminaire
· Fixed output built-in LED driver
· Simple structure, cost effective
· Flicker free LED driver
· Indoor office lighting, decorative lighting, commercial lighting, and residential lighting
· 5 years warranty
Technical Parameters
|
Model |
Input Voltage |
Input Current |
Input Power |
PF |
Output Voltage |
Output Current |
No load Voltage |
Range of
Output Power |
Eff. |
|
RWP30-1H700C-C3 |
220-240VAC |
0.21A |
33W |
0.95 |
27-42VDC |
700mA |
55VDC |
18.9-29.4W |
88% |
|
Input |
Range of Input Voltage | 198-264VAC |
| Frequency | 50/60Hz | |
| THD | <15%@230VAC, Full-load | |
| No-load Power Consumption | ≤0.5W @230VAC | |
| Inrush Current | ≤40A (230VAC, Full-load) | |
| Connected quantity of 16A Breaker | 20pcs/type B ; 32pcs/type C @ 230Vac | |
|
Output |
Current Tolerance | ±5% |
| Started Delay Time | ≤0.5S (230VAC，full load) | |
| Current Ripple | <8% | |
| Channel | 1 | |
|
Protection |
Short Circuit | Auto Recovery |
| Overload Protection | Auto Recovery | |
| Insulation voltage | I/P to O/P , 3.75KVac/1min | |
| Insulation resistance | >100M ohm @ 500VDC | |
| Leakage current | I/P to O/P < 250μA | |
|
Environment |
Ta/Operation Temperature | -20….+60℃ |
| Ts/Storage Temperature | -40….+80℃ | |
| Tc/Enclosure Temperature | 90℃ | |
| Humidity | 10%. 90%RH | |
| Atmosphere | 86-108KPa | |
|
Standards |
Safety Standards | EN 61347-1:2015/A1:2021 EN 61347-2-13:2014/A1:2017 EN 62493:2015 |
| EMC Standards | EN 61547、EN55015 、EN 61000-3-2、EN61000-3-3 | |
| Performance | EN62384 | |
| Surge | L-N/2KV | |
| Withstand voltage | I/P-O/P:3.75KVac,<5mA 60s; | |
|
Others |
RoHS | RoHS 2.0 （EU）2015/863 |
| Life Time | 30000h @60℃ (Ta) / 90℃ (Tc) | |
| Warranty | 5years，F.R.<10000ppm | |
| Packing(weight) | Net weight: –g±5%/PCS; –PCS/Carton; – kg±5%/Carton; Carton Size: –*–*–mm(L*W*H) |
