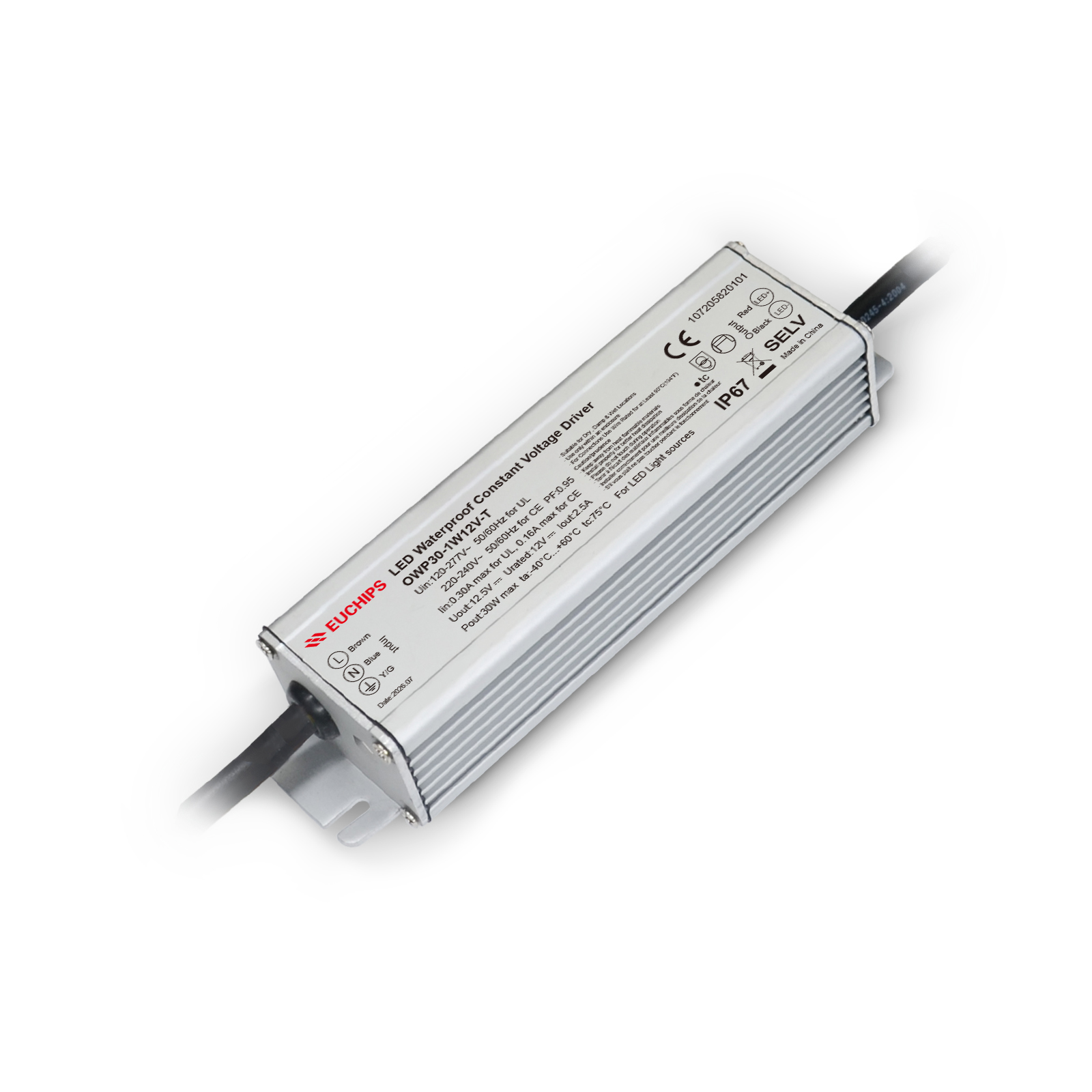

30W 12VDC Non-dimmable Waterproof CV Driver OWP30-1W12V-T

Short Description:

Item No.: OWP30-1W12V-T
Output Power: 30W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

Features

Wide input voltage range: 120–277Vac
Extended ambient operating temperature range: -40°C to +60°C
Built-in over-temperature protection with automatic power derating
Comprehensive protection: short circuit, overload, overcurrent, and over-temperature
50,000-hour lifetime at tc = 75°C
5-year warranty
Flicker-free output
Safety according to UL8750 & UL 1310
Suitable for Dry , Damp & Wet Locations

Technical Parameters

Model	OWP30-1W12V-T
Input	Efficiency	≥86%@120VAC, ≥87%@230VAC, ≥88%@277VAC, full load
	Voltage	120VAC-277VAC for UL, 220-240V~for CE
	Input voltage range	108VAC-305VAC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	0.30A@120VAC, 0.16A@230VAC, 0.135A@277VAC, full load
	PF	≥0.95@120VAC, ≥0.95@230VAC, ≥0.95@277VAC, full load
	THD	<10%@120VAC, <10%@230VAC, <10%@277VAC, full load
	Inrush Current(max)	Cold start, , 20A@120VAC 186us, 30A@230VAC 200us, 34A@277VAC 200us
	No-load power	<0.5W(@120VAC-277VAC)
	Turn on Time	<0.50s(@120VAC-277VAC)(When the light begins to shine)
Output	Current	2.5A
	Voltage	12VDC
	Voltage Range	12VDC±3%
	Power	30W
	Channel	1
	Overpower Limit	≥135%
	Ripple	≤120mV Test condition: pure resistive load, output connected via 15 cm twisted-pair wires, with a 47μF electrolytic capacitor and a 0.01μF ceramic capacitor connected in parallel at the load end (20 MHz bandwidth).
Protection	Short Circuit	Output shut down, auto-recover after fault cleared.
	Overload	Current reduction hiccup protection, auto-recover after fault cleared.
	Overcurrent	Current reduction hiccup protection, auto-recover after fault cleared.
	Overtemperature	Power reduces to 50% at 70-80°C ambient (tc 90-100°C); auto-recovery when temperature drops.
Safety&EMC	Surge	L-N: 6kV, L-PE: 6kV, N-PE: 6kV
	Withstand Voltage	I/P-O/P: 3000Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA
	Safety standards	EN61347-1, EN61347-2-13, UL8750, UL1310, UL879
	EMI	EN55015@230VAC, FCC Part 15 Class B@120/277VAC
	Insulation Resistance	5MΩ
Others	Working Temp.	-40℃~+60℃ (-40°F~140°F)
	Storage Temp., Humidity	-40℃~85℃ (-40°F~185°F), 20-95%RH
	tc	75℃ (167°F) for safety & life
	Material	Metal
	IP Rating	IP67
	Lifetime	50,000h@tc:75℃ (167°F)
	Warranty Condition	5 years
	Switch Cycle	25,000 times
	Dimension	15640.830mm(LWH) 6.141.611.18 In
	Packing(weight)	Net weight: 350g(0.77 lb)±5%/PCS; 30 PCS/Carton;11.0kg(24.3lb)±5%/Carton; Carton Size: 392x202x204mm(15.44×7.96×8.32In)(LWH)
