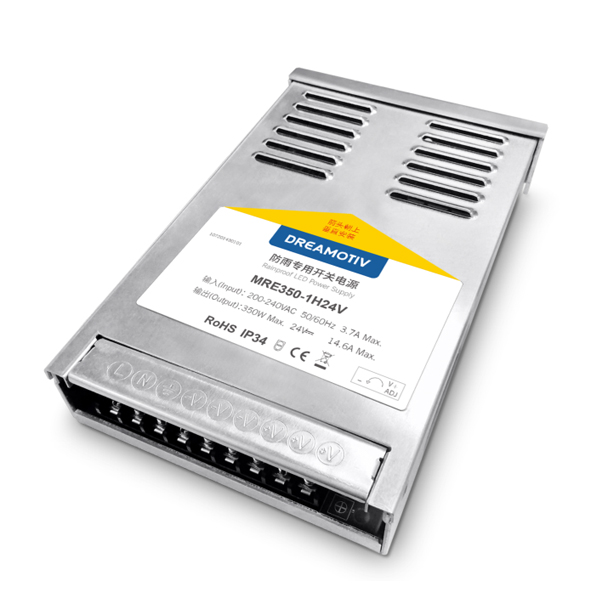

350W 24VDC Non-dimmable Rainproof CV Driver MRE350-1H24V
350W 24VDC Non-dimmable Rainproof CV Driver MRE350-1H24V
Features
·Single group constant voltage DC 24V output
·Design of built-in LED power supply indication and fine-tuning voltage
·Designed with aluminum shell to improve heat dissipation performance
·The product adopts fan free and noise free natural air cooling design
·The internal semi filling process protects the electronic components and has the function of dustproof and rainproof
·Overload, overvoltage, overcurrent, overtemperature protection, overload to constant current mode
·Ultra thin design, waterproof grade ip34, suitable for all kinds of LED constant voltage lamps
·CE (LVD + EMI), CCC certification
Technical Parameters
|
Model |
MRE350-1H24V | |
|
Input |
Efficiency | 88.5%@230VAC, Full load |
| Voltage | 200VAC~240VAC | |
| Frequency | 50~60Hz | |
| PF | >0.5@230VAC, Full load | |
| Standby Power | <0.75W | |
| Current | 3.7A max@230VAC | |
| Inrush Current | Cold start 70A@230VAC | |
|
Output |
Current/Voltage/Power | 14.6A/24V/350W |
| Ripple | 240mVp-p | |
| Channel | 1 | |
| Voltage Adjustable Range | 22-25.0V | |
| Voltage Tolerance | ±2% | |
| Protection | Short Circuit | Close output, recovers after fault condition is removed |
| Over Voltage | Shut down the output, After restart recovers automatically | |
| Over Load | Hic cup, recovers after fault condition is removed | |
|
Safety & EMC |
Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC | EN55032(CISPR32)ClassB,EN61000-3-2 ClassA EN6100-3-3,EAC TP TC020 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN55024,EAC TP TC 020 | |
|
Others |
Working Temp. | -25℃~60℃ |
| Storage Temp.; Humidity | -25℃~75℃ 5-95%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP34 | |
| Lifetime | 26,280h@tc:90℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >50,000 times | |
| Packing Size | Net weight: 1400g±5%/PCS; 10PCS/Carton; 15kg±5%/Carton; Carton Size: 324*247*200mm(L*W*H) | |
| Dimension | 228*131*48mm(L*W*H) | |
