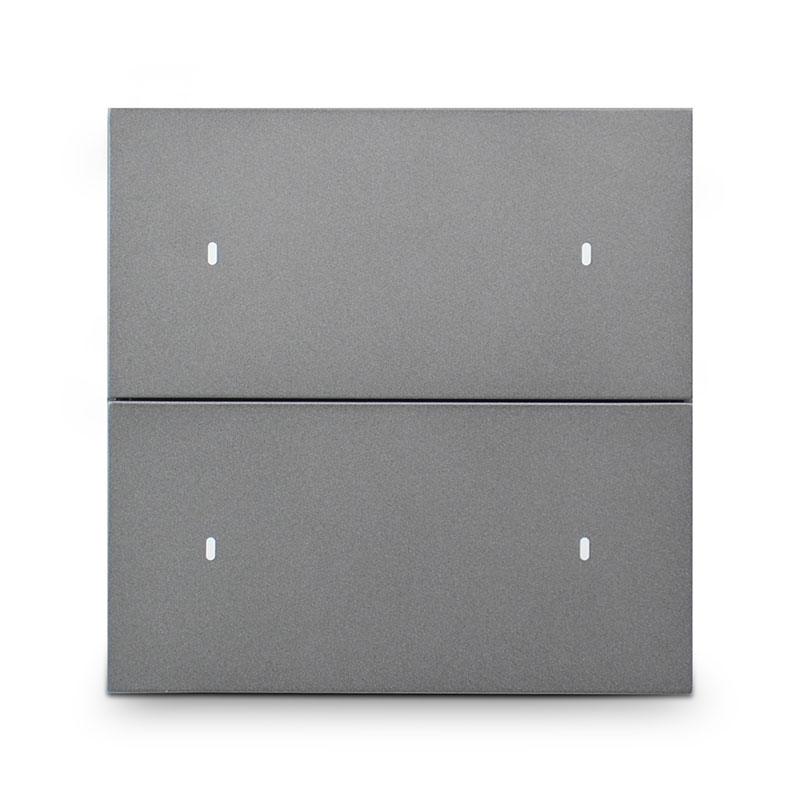

4-Key Intelligent Control Panel KNX-EUK204

Features

· Switch function, which can be used to switch on and off the lighting, and has long press, short press and reverse pick functions
· The dimming function controls the dimming equipment and has both relative dimming and absolute dimming
output functions
· The curtain control function can control the opening and closing of the curtains, the lifting and lowering of the projection screen, etc
· Value sending, values of 1bit/1byte size can be sent
· The scene control function enables 8-bit scene control and calls up the pre-set scene number
· Shift register, send values in the form of a shift register
· RGB and RGBW control, which can be controlled by long pressing or short pressing
· Multiple operation functions. Once operated, different values can be sent simultaneously and different types of functions can be called
· Delay the sending of values. During the operation, one value is sent or no value is sent. After a delay of a period of time, another value is sent
· Logical output function, supporting logical outputs such as OR, AND, XOR, NOR and NAND
· The scene module conversion function supports scene group forwarding of up to 8 channels, and each group can support up to 8 configurable outputs
· The LED indication function allows for the selection of multiple display states, such as: always on, always off, and flashing
· It has the master and slave functions of equipment lighting and can be used as a master device or a slave device as required
· The status and backlight leds have the functions of brightness wake-up and delayed off. The wake-up conditions include key pressing, radar sensing, object triggering, etc

Technical Parameters
