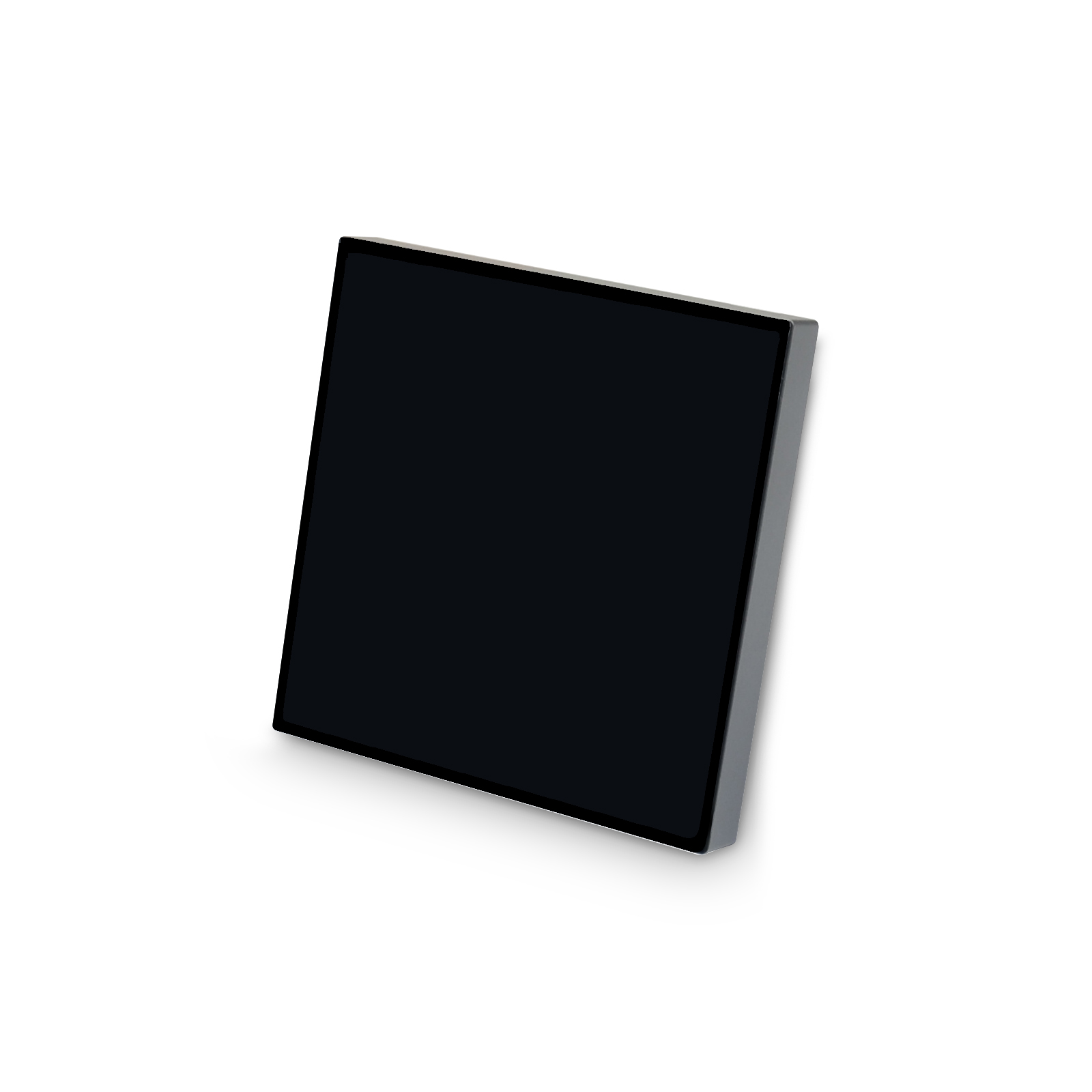

KNX Panel EUK04.1

Features

• KNX communication protocol
• Proximity detection: Built-in proximity sensor for detecting human movement. Once detecting near human movement, the touch screen auto wakes up.
• Temperature & humidity monitoring: built-in temperature & humidity sensor for monitoring real-time environment status.
• Sleep mode: Once no operation for a certain period, the sleep mode is automatically on.
• Touch screen: Backlight brightness can be set.
• Setting page lock and screen lock can be set.
• Home page: Time and environment status can be set. Moreover, 3 short-cut buttons for scenes, 4 function navigation buttons and 1 main menu button are available for the home page.
• Lighting page: Available for setting a maximum of 20 lighting devices, including relays, dimmers, RGB lamp bands, and correlated color temperature lamps.
• Curtain page: Available for setting a maximum of 8 curtain motors, including motorized curtains and roller blind motors, with control types of open/close, stop, percentage adjustment, swing angle control.
• AC (Air conditioner)/FCU (Fan Coil Unit) page: Available for setting a maximum of 6 air conditioners/FCU, with control types of on/off (only for AC), temperature up/down, fan speed up/down, mode switch, swing angle setting (only for AC).
• Fresh air page: Available for setting 1 fresh air device, with control types of on/off, fan speed up/down, mode switch.
• Floor heating page: Available for setting a maximum of 8 floor heating modes, including normal, day, night, away and auto, with control types of on/off, temperature up/down, mode switch.
• Music page: Available for setting 1 music player.
• Scene page: Available for setting a maximum of 20 scenes.
