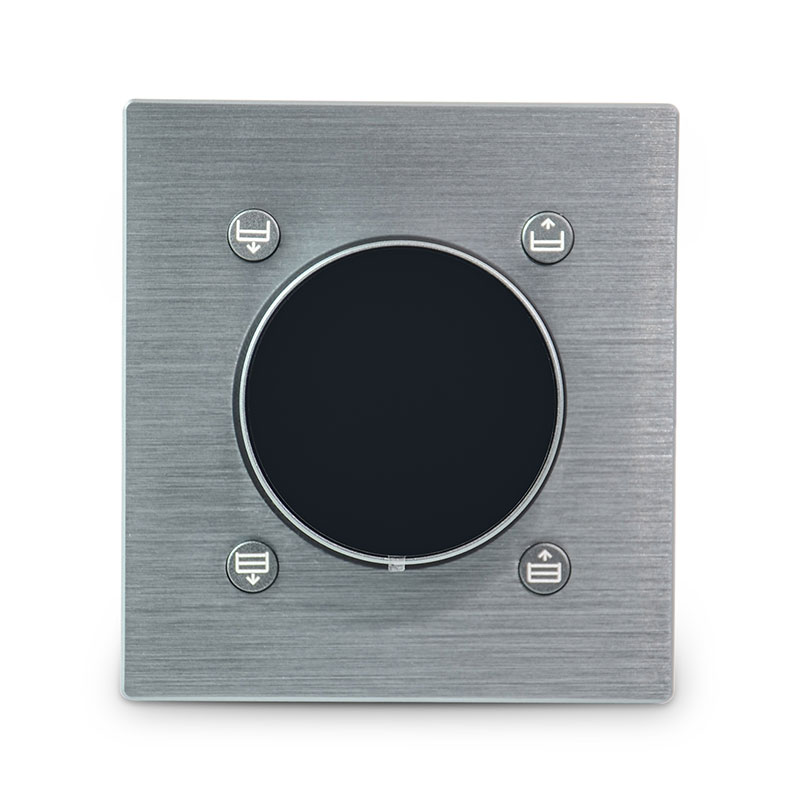

Rotary Lighting Panel KNX-EUT04
Rotary Lighting Panel KNX-EUT04
Features
· Illuminance sensing function
· Micro-movement/movement detection function
· The sensitivity of the adjustable mobile detection function
· Networking function with master-slave sensor control
· It features an illuminance sensing function with three types of output data, and the values can be sent in a loop
· It features a mobile monitoring function with three types of output data, and the values can be sent in a loop
· It has the function of turning on/off the indicator light
· Valve (threshold) (setting) function
· The functions of illuminance sensing and motion sensing are prohibited
Technical Parameters
| Product model | KNX-EUT04 |
| Bus voltage | 21-30VDC, powered on the KNX bus |
| Bus current | ≤ 12mA |
| Bus power | ≤ 360mW |
| Auxiliary voltage | 24VDC |
| Auxiliary current | <38mA |
| Auxiliary power consump | <1W |
| Working temperature | -5°C- 45°C |
| Storage temperature | - 25°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
| Relative humidity | Max 90% |
| Shell material | ABS+PC+ metal |
| Size | 86mm x 93mm x 48mm |
| Weight | 0.2KG |
| Installation method | 86 Base box |
