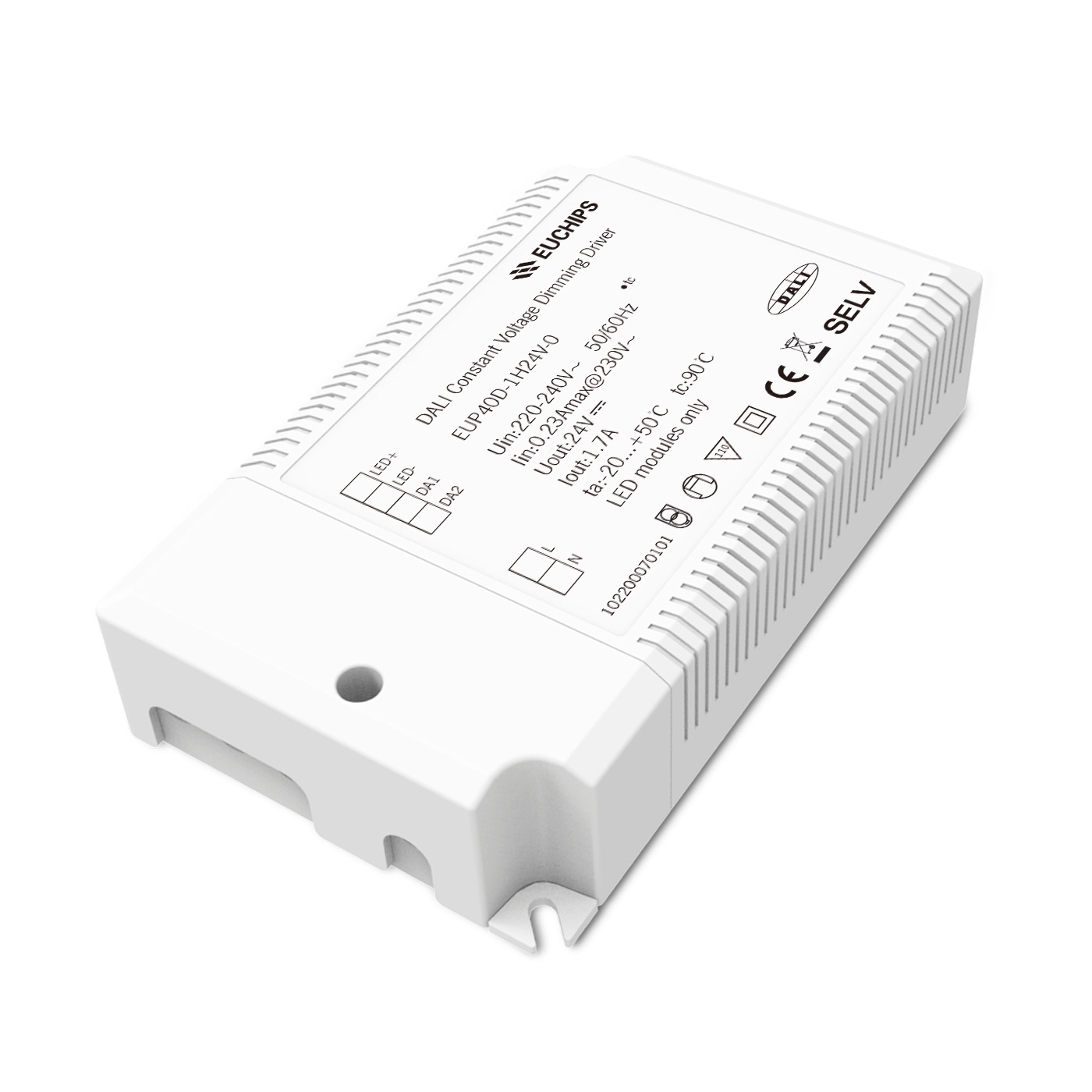

40W 24VDC 1.7A*1ch CV DALI Driver EUP40D-1H24V-0

Short Description:

  • Item No.: EUP40D-1H24V-0
  • Input Voltage: 220– 240
  • Output Current: 1.7A*1CH
  • Output Voltage: 24
  • Output Power: 40
  • Dim Mode: DALI /Touch DIM
  • G.W.: 225
  • Size: 137*82*31

Product Detail

Product Tags

40W 24VDC DALI Constant Voltage LED Driver EUP40D-1H24V-0


1. Single channel constant voltage output

2. Support a variety of dimming mode(DALI/Touch DIM) ·High range of input voltage 220VAC ~ 240VAC

3. Built-in active PFC function ·Dimming effect smooth, no flicker

4. Over load protection; Short circuit protection; Over temperature protection

5. Suitable for indoor LED lighting application, such as LED Dimension (mm) strips, spot light,wall washer,and so on

Technical Parameter


Model EUP40D-1H24V-0
Output DC Voltage 24VDC
Current 1.7A/CH
Rated Power 40W
Voltage Tolerance ±3%
R & N(max) 400mVp-p
Channels 1
Input Voltage Range 220 – 240VAC
Frequency Range 50/60Hz
Efficiency >88%@230VAC,full load
Power Factor >0.95@230VAC,full load
THD <10%@230VAC,full load
Current 0.23Amax@230VAC
Inrush current Cold start, 30A(twidth=650us measured at 50% Ipeak) @230VAC
Protection Over load Hiccup, recovers after fault condition is removed
Over temperature Shut down the output, recoverautomatically when temp. back to normal
Short circuit Hiccup, recovers after fault condition is removed
Function Dimming DALI/Touch DIM
Others Dimension 137 (L)*82(W)*31(H)mm
G.W.(g) 225g
Working Temp. -20 ~ 50℃
Relative humidity 20~90% RH
