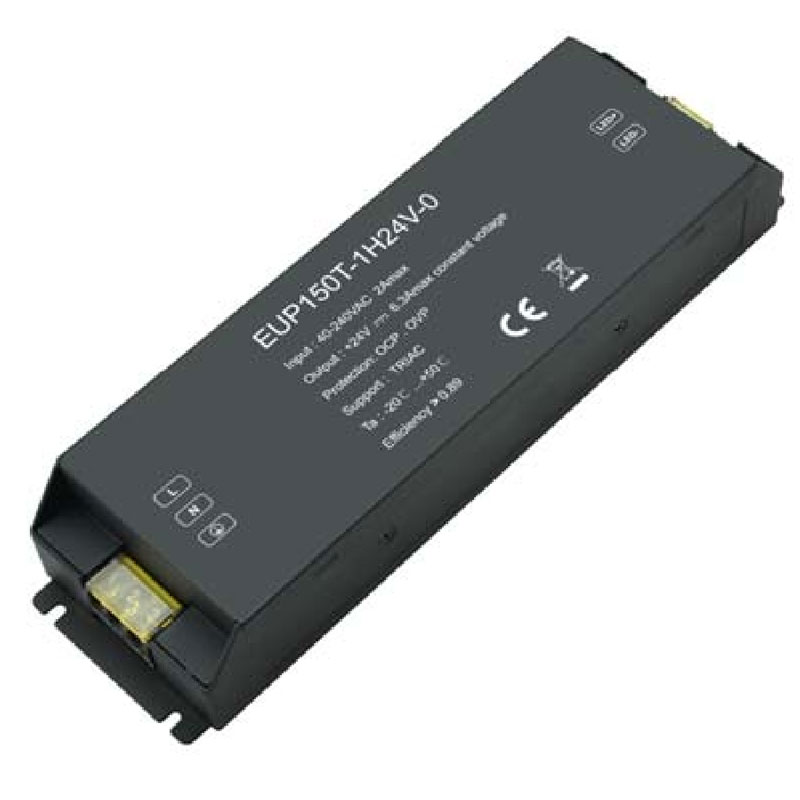

150W 24VDC Phase-cut CV Driver EUP150T-1H24V-0

Short Description:

  • Item No.: EUP150T-1H24V-0
  • Input Voltage: 200-240VAC
  • Output Current: 6.2A*1CH
  • Output Voltage: 24VDC
  • Output Power: 150W
  • Dim Mode: Triac/ELV
  • G.W.: 842g
  • Size: 270*77*45mm

Product Detail

Product Tags

150W 24VDC 6.3A*1ch Constant Voltage Driver EUP150T-1H24V-0

Feature

1. Single-channel constant voltage output,6.3A Max.

2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer

3. Dimming range from 40VAC to 240V AC.

4. Dimming effect smooth, no flicker

5. High efficiency: up to 89%.

6. Over power protection; Over voltage protection; Short circuit protection

7. Suitable for indoor LED lighting application

Technical Parameters

Model EUP150T-1H24V-0
Input Efficiency 89%(Typical)
Voltage 200VAC-240VAC
Frequency 50/60Hz
Power Factor /
Current 2A@230VAC
Dimming voltage range 40-240VAC
Inrush Current 45A@230VAC
Output Current/Voltage/Power 6.3A/24VDC/151.2W
Ripple Current 200mVp-p
Channel 1
Voltage Tolerance ±3%
Turn On Delay Time <1s, at 230Vac
Function Dimming Mode Triac

ELV

Dimming Range 1-100% Dimming to off
Protection Over Power Limit the output power to 110% - 150% of the rated power
Short Circuit Close the output, restart to recover since fault condition is removed for 10s
Over voltage Hiccup, recovers after fault condition is removed
Others Working Temp. -20℃ ~50℃
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 75℃
Material Metal
IP Rating IP20
Lifetime 30,000h@tc:75℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 842g±5%/PCS; 20PCS/Carton; 18kg±5%/Carton; Carton Size: 367*292*289mm(L*W*H)
Dimension 260*78.3*45mm(L*W*H)
