40W 600~1050mA 0-10V CC Driver RWP40AS-IHMC
40W 600~1050mA 0-10V CC Driver RWP40AS-IHMC

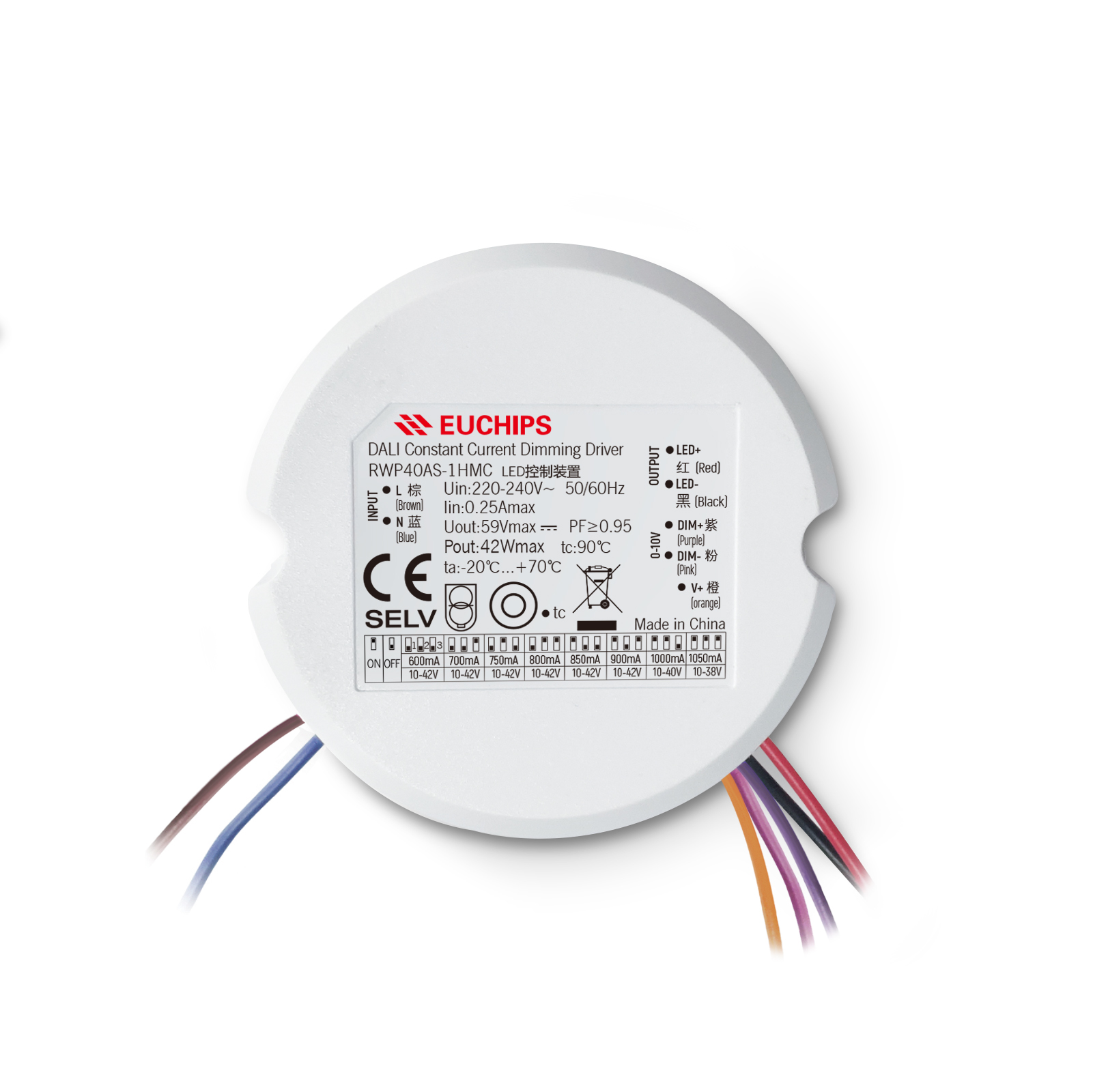

RWP40AS-IHMC is a 40W 0-10V dimming constant-current LED driver equipped with a auxiliary power supply, an 8-position current DIP switch and ultra-wide output voltage of 10-42V. With its compact body design and round shell, it is widely used in downlights and spotlights.
Features
- Single-channel constant current output
- Supports 12V 100mA auxiliary source, and can be customized to 5V 100mA
- Input voltage range: 198VAC – 264VAC
- Double-stage flicker-free isolated power supply.
- THD<10%
- TA：-20-70℃
- Dimming depth: 1%
- Lifespan of 50,000 hours, five-year warranty
- Compact housing design
- Comprehensive protection: Overload/Over-temperature protection
Technical Parameters
| Model | RWP40AS-IHMC | ||
|
Input |
Rated Input Voltage Range | 220VAC-240VAC | |
| Max. Input Voltage Range | 198VAC-264VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Input Current | 0.25Amax@230VAC | ||
| Power Factor | 0.95@230VAC, full load | ||
| Efficiency | 90%@230VAC, full load | ||
| THD | <10%@230VAC, full load | ||
| Standby power | <0.5W@230VAC | ||
| No load power | <0.5W@230VAC | ||
| Inrush Current | Cold start, 40A@240VAC 1.32us | ||
|
Output |
Current/Voltage/power | 600mA/10-42VDC/25.2W 700mA/10-42VDC/29.4W 750mA/10-42VDC/31.5W 800mA/10-42VDC/33.6W850mA/10-42VDC/35.7W 900mA/10-42VDC/37.8W 1000mA/10-40VDC/40.0W 1050mA/10-38VDC/40.0W | |
| Output current accuracy | ±5% | ||
| Output Channel | 1 | ||
| Line Regulation | ±1% @ full load | ||
| Load Regulation | ±5% @ full load | ||
| Output Voltage Ripple | High frequency >1K HZ: ±5% Low frequency <120 HZ: +5% | ||
| No load output voltage | 59V Max | ||
| Turn on delay Time | ≤0.5s, at230Vac(When the light begins to shine) | ||
|
Function |
Dimming Type | 0-10V (Turn-on Voltage: 1.05–1.15V, Turn-off Voltage: 1–1.1V) | |
| Dimming Range | 1%-100% | ||
| Dimming curve | Linearity | ||
| Flicker | Flicker free | ||
| Auxiliary Power Supply | 12VDC(0-100mA) | ||
| Protection | Short circuit Protection | Hiccup protection, Auto-resume after Dault Cleared. | |
| Overcurrent protection | Hiccup protection, Auto-resume after Dault Cleared. | ||
| Overload Protection | Overload protection at ≥130% load; current reduces, output returns to normal after fault cleared. | ||
|
Safety& EMC |
Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety Standards | CCC (China) GB19510.1，GB19510.14;TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | ||
| CB (CBmember states) IEC61347-1，IEC61347-2-13; CE (European Union) EN61347-1，EN61347-2-13，EN62384 | |||
| RCM (Australia) AS 61347-1，AS 61347-2-13;ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | |||
| EMC Emission | CCC (China) GB/T17743，GB17625.1 | ||
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Environment | Working Temp | -20℃~70℃ | |
| Storage Temp | -25℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
|
Others |
RoHS | Comply with 2011/65/EU | |
| tc | 95℃ for safety & 90℃life | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:90℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 64*64*28mmmm(L*W*H) | ||
| Packing(weight) | Net weight: 160g±5%/PCS;80PCS/Carton;13.3kg±5%/Carton; Carton Size: 362*300*155mm(L*W*H) | ||
| Noise | In a quiet environment，No noise outside 30-50cm | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
