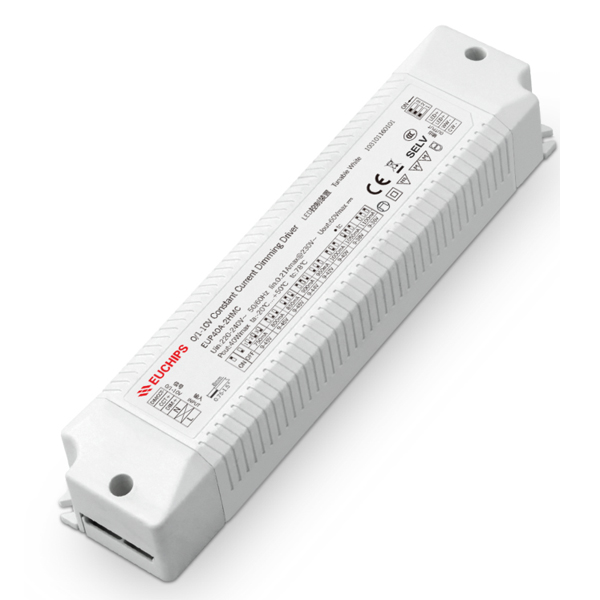

40W 750~1100mA*2ch 0/1-10V CC Driver EUP40A-2HMC

Short Description:

  • Item No.: EUP40A-2HMC
  • Input Voltage: 220-240VAC
  • Output Current: 750/800/850/900/950/1000/1050/1100mA
  • Output Voltage: 9-45VDC
  • Output Power: 40W
  • Dim Mode: 0/1-10V
  • G.W.: 151g
  • Size: 185*42.5*28.5mm

Product Detail

Product Tags

40W 750~1100mA*2ch 0-10V CC Driver EUP40A-2HMC

EUP40A-2HMC is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.

Features

·Two channel output, output current level selectable by DIP S.W.
·High efficiency up to 88 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameters

Model EUP40A-2HMC




Input

Efficiency 88%@230VAC,Full load
Voltage 220VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load) <10%@230VAC, Full load
AC Current(max) 0.21Amax@230VAC
Standby power <0.5W
Inrush Current(max) Cold start,18.5A@230VAC


Output

Current(mA)/Voltage (VDC) Power(W) 750mA/9-45VDC/33.75W 800mA/9-45VDC/36W 850mA/9-45VDC/38.25W 900mA/9-44VDC/39.6W 950mA/9-42VDC/39.9W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W
Ripple Current <3%
Channel 2
Current Tolerance ±5%
No load output voltage 60V Max
Turn on delay Time <0.75s, at230Vac
Function Dimming Type 0/1-10V
Dimming Range 0.2%-100%
color temperature 3000k-6000k
Protection Short Circuit Close output, recovers automatically after fault removed
Over Load Reduce the output current and burp
over Voltage Reduce the output current and burp


Safety& EMC

Surge L-N:1KV
Withstand Voltage I/P-O/P: 3750VAC/1min/5mA
Safety Standards EN61347, GB19510
EMC Eission EN55015, EN61000-3-2
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547




Others

Working Temp. -20℃~50℃
Storage Temp., Humidity -40℃~85℃, 20-90%RH
tc 75℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:75℃
Warranty Condition 5 Years
Switch Cycle >25,000 times
Packing(weight) Net weight: 151g±5%/PCS; 50PCS/Carton; 8.05kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H)
Dimension 185*42.5*28.5mm(L*W*H)
