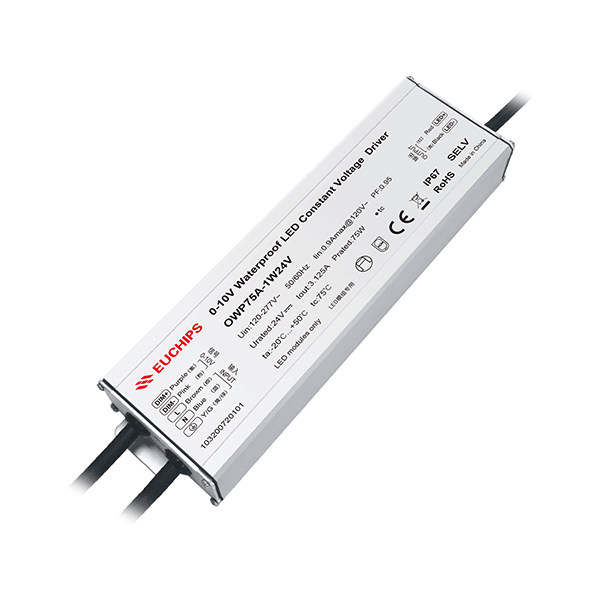

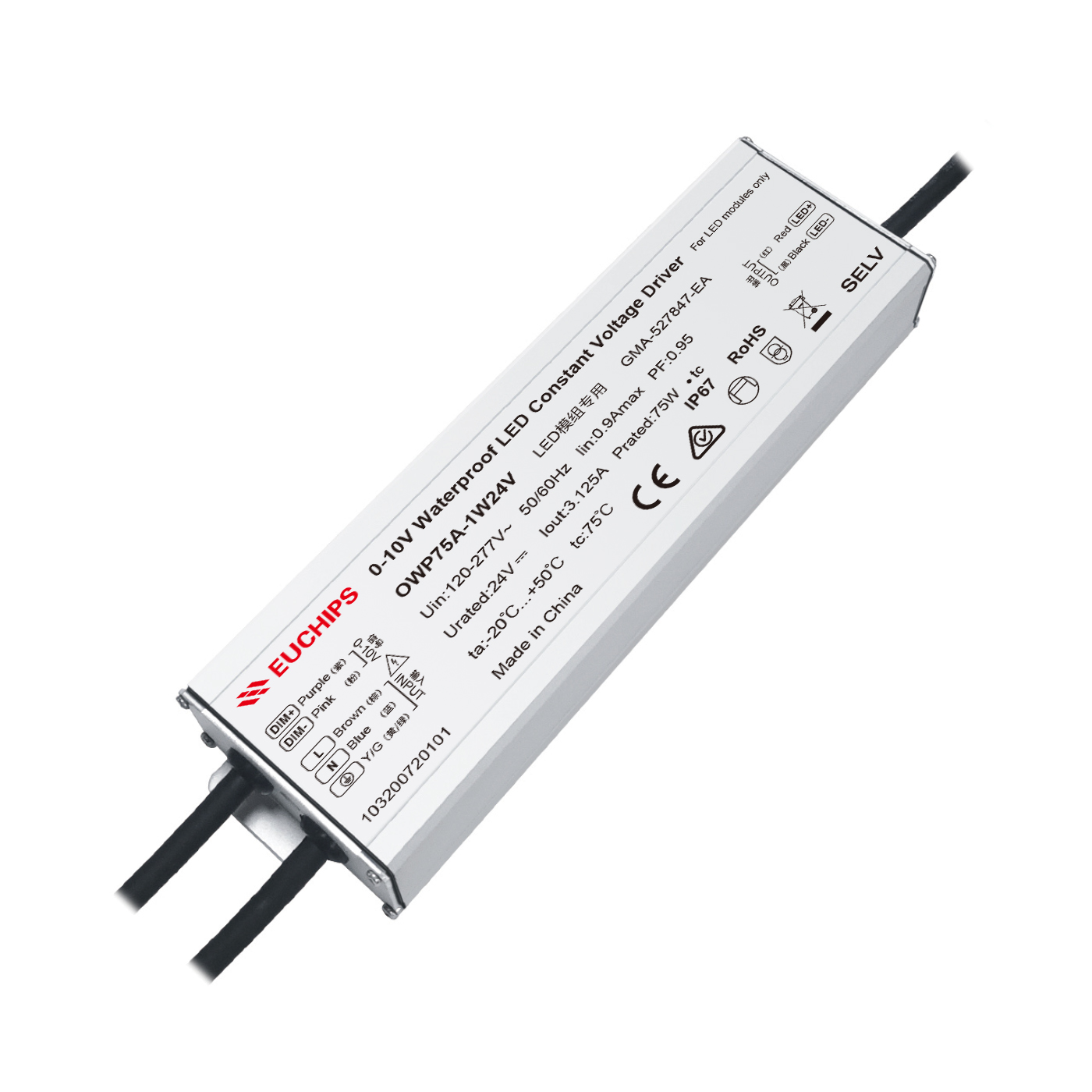

75W 24VDC 0/1-10V Waterproof CV Driver OWP75A-1W24V

Short Description:

Item No.: OWP75A-1W24V
Output Power: 75W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

75W 24VDC 0/1-10V Waterproof CV Driver OWP75A-1W24V

Features

· Single channel constant voltage output, maximum output current 3.125A
· Lightning protection, short circuit, overvoltage, metal shell
· Protection class IP67, suitable for outdoor lighting
· Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
· Life of 50,000 hours, 5 years warranty
· Customizable dimming curve
· Wide voltage input with active PFC, full power output
· Suitable for LED constant voltage lamps, lamp strips, lamp strips, etc

Technical Parameters

Model	OWP75A-1W24V
Input	Input Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.9Amax@120VAC 0.4Amax@277VAC
	Power Factor	≥0.95@120VAC, Full load ≥0.95@277VAC, Full load
	Efficiency	≥87%@120VAC, Full load ≥89%@277VAC, Full load
	THD	≤10%@230VAC, Full load ≤10%@277VAC, Full load
	Standby power	<0.5W
	No-load power	<1W
	Inrush Current	Cold start,16.8A@120VAC 236us 68A@277VAC 156us
Output	Output Voltage	24VDC
	Voltage Accuracy	±5%
	Output Current	3.125A Max.
	Current Accuracy	/
	Output Power	75W Max.
	Output Power Range	0W~75W
	PstLM	≤1
	SVM	≤0.4
	Dimming frequency	20KHz
	Line Regulation	±1% @Full load
	Load Regulation	±1% @Full load
	Turn on delay Time	0.75s, at230Vac (When the light begins to shine)
Function	Dimming Type	0-10V
	Dimming Range	0.1%-100% Dimming to OFF
	Dimming Curve	Logarithm
	Flicker free	Flicker free
Protection	Short circuit	Hiccups, troubleshooting after self-recovery
	Over Current	/
	Over load	Load current more than 130% reduce current burp protection, troubleshooting normal output
	Over Voltage	/
	Over temperature	/
Safety& EMC	Surge	L-N 6KV L-PE 10KV N-PE 10KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA I/P-0-10V( Signal port ):500Vac/1min/<5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~50℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	75℃
	material	Metal
	IP Rating	IP67
	Lifetime	50,000h@tc:75℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	1876433mm (LWH)
	Packing(weight)	Net weight: 630g±5%/PCS; 20PCS/Carton; 13kg±5%/Carton; Carton Size: 340226200mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
