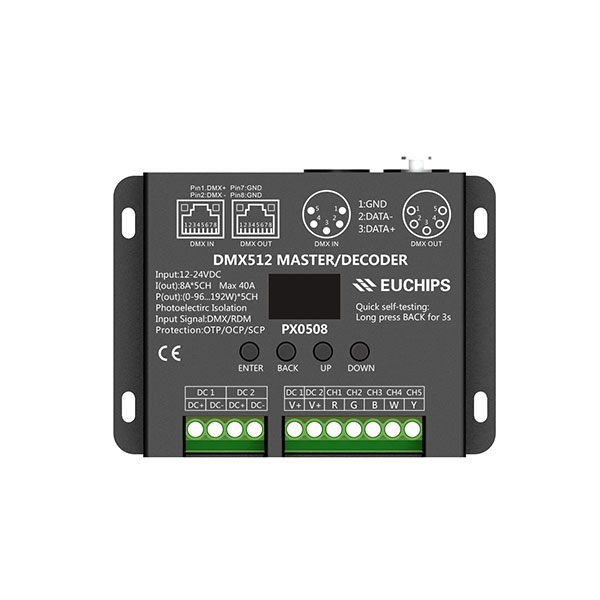

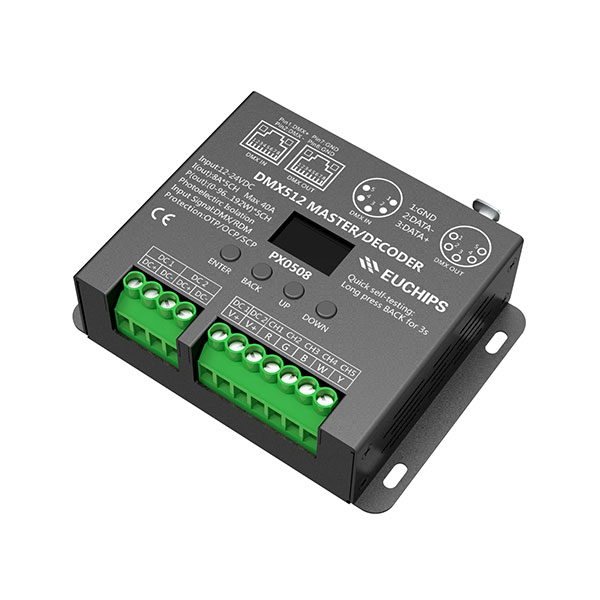

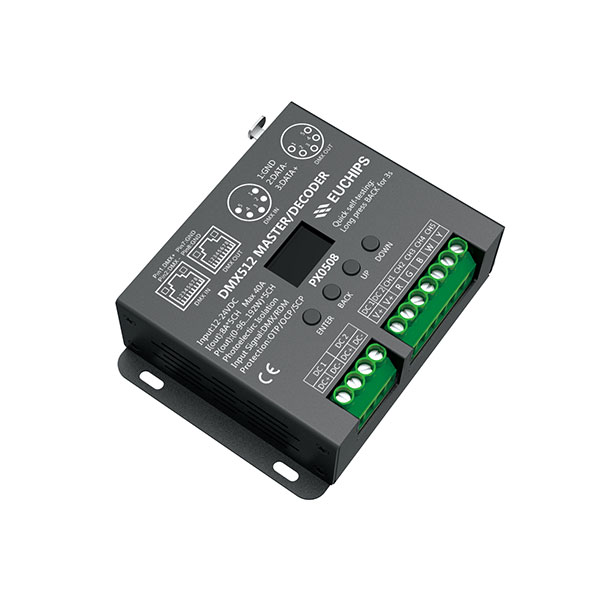

12-24VDC 8A*5ch DMX512 Decoder PX0508-OLED

Short Description:

  • Item No.: PX0508-OLED
  • Input Voltage: 12-24
  • Output Current: 8A*5CH
  • Output Voltage: 12-24
  • Output Power: 480-960
  • Dim Mode: DIM/CT/RGB/RGBW/RGBWY
  • G.W.: 365
  • Size: 125*93*36

Product Detail

Product Tags

12-24VDC 8A*5ch DMX512 Decoder & Master PX0508-OLED

Summary

Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced microcomputer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~5 channels output for option and each channel able to achieve 256 or 65536 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Feature

﹞ 5 channels output, the maximum current of 8A /ch for RGBWY decoder, up to 960W

﹞ Can be used as stand alone DMX Master controller

﹞ OLED Screen and touch button, more convenient operation

﹞ 27 sence modes built-in, with speed and brightness adjust function

﹞ 5 kinds of optional: DIM, CT, RGB, RGBW, RGBWY

﹞ 2 kinds of DMX ports: XLR-5, RJ45

﹞ Short-circuit protection,overload protection,over-temperature protection

﹞ Fast self-testing function

﹞ 8 bit / 16 bit resolution optional(master mode support 8bit only)
﹞ 400 / 1000 / 2000HZ PWM frequency optional
﹞ Multiple dimming curve: (0.1~9.9), liner, log

﹞ Meets DMX512/1990,RDM /2009 protocol

﹞ Supported RDM parameters:

DISC_UNIQUE_BRANCH

DISC_MUTE

DISC_UN_MUTE

DEVICE_INFO

SOFTWARE_VERSION_LABEL

DMX512/RDM_START_ADDRESS

IDENTIFY_DEVICE

MANUFACTURER_LABEL

SUPPORTED_PARAMETERS

Technical Parameter

Model : PX0508-OLED

Input Signal : DMX512 1990/RDM 2009

Input Voltage : 12~24V

Output Voltage : 12~24V

Output Current :

8A*5CH/400HZ MAX. 40A

7A*5CH/1000HZ MAX.35A

6A*5CH/2000HZ MAX.30A

Output Powet : (0~96W…192W)*5CH MAX. 960W

Control Mode : DIM/CT/RGB/RGBW/RGBWY

Dimming Curve : 0.1~9.9/Liner/Log

Grey Level : 8Bit (256 levels) / 16Bit (65536 levels)

Protection : Short-Circuit / Over Load / Over Temperature

Dimension : 125*93*36 mm (L * W * H)

Packing Size : 145* 104*42 mm (L * W * H)

G.W. : 365g

Operation Temperature : – 20 – 50 ⊥

Relative humidity : 20% – 90% RH
