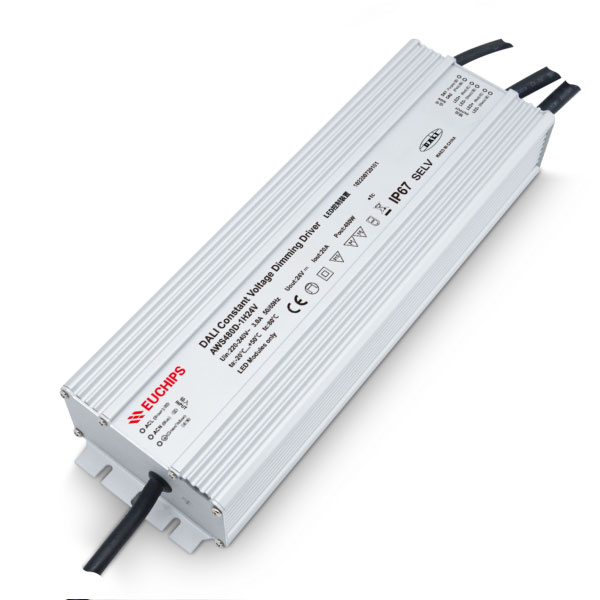

480W 24VDC DALI Waterproof CV Driver AWS480D-1H24V
480W 24VDC Constant Voltage DALI Driver AWS480D-1H24V
AWS480D-1H24V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. Use DALI master or DALI panel dimming , with smooth dimming curve and are flicker free.
Features
· Single channel output with 24V CV direct current
· With built-in active PFC function
· Meet DALI protocol IEC 62386-207
· Ultra-thin design, Waterproof level IP67, High effciency up to 93%
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over voltage, lightning protection
· Suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on
Technical Parameter
| Model | AWS480D-1H24V | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥93%@230VAC, full load | |
| PF | ≥0.95@230VAC, full load/span> | |
| Current | 3Amax@230VAC | |
| THD(full load) | ≤10%@230VAC, full load | |
| Inrush Current | Cold start,,100A@230VAC 100us | |
| Output | Channel | 1 |
| Voltage (VDC) | 24VDC | |
| Current | 20A | |
| Voltage tolerance | 480W | |
| No load output voltage | 25VDC MAX | |
| Current Tolerance | ±5% | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI |
| Dimming Range | 0.3%-100% | |
| Protection | Short Circuit | Turn off the output. After removing the fault, it needs to be powered on again to have output |
| Over Voltage | nothing | |
| Over Load | Hiccup protection, self recovery after fault removal | |
| Safety & EMC | Surge | L-N 6KV L-PE 10KV |
| Withstand Voltage | I/P-O/P: 3KVAC/1min＜5mA,I/P-FG:1.5KVAC,OP-GND：500VAC, O/P-DIM:1.5KVAC | |
| Safety Standards | EN61347-1, EN61347-2-13,UL8750 | |
| EMC Eission | EN50515, EN61000-3-2,FCC Part 15 Class B | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃@230Vac | |
| Material | Metal Shell | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:80℃ | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 1800g ± 5% / PCS; 10PCS/Carton; 18.5kg ± 5% / box; Outer box size: 327*281*246mm (length * width * height) | |
| Dimension | 289 *89.5*46.5mm Shell size(L*W*H) | |
