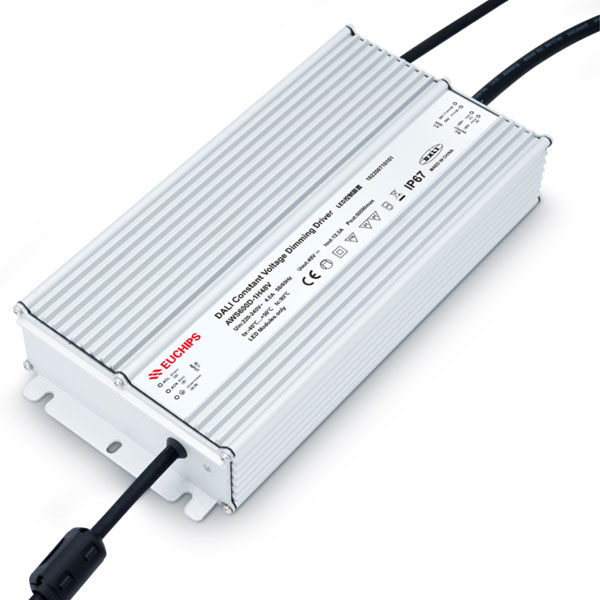

600W 48VDC DALI Waterproof CV Driver AWS600D-1H48V
600W 48VDC Constant Voltage DALI Driver AWS600D-1H48V
AWS600D-1H48V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. Use DALI master or DALI panel dimming , with smooth dimming curve and are flicker free.
Features
· Single channel output with 48V CV direct current
· With built-in active PFC function
· Meet DALI protocol IEC 62386-207
· Ultra-thin design, Waterproof level IP67, High effciency up to 94%
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over voltage, lightning protection
· Suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on
Technical Parameter
| Model | AWS600D-1H48V | |
| Input | Efficiency | 94%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.96@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Standby Power | ≤2W | |
| AC Current(max) | 4Amax@230VAC | |
| Inrush Current(max) | Cold start,73.5A@230VAC 160us | |
| Output | Current | 12.5A |
| Voltage (VDC) | 48VDC | |
| Power | 600W | |
| Channel | 1 | |
| No load output voltage | 48V ±5% | |
| Current Tolerance | ±5% | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI |
| Dimming Range | 5%-100% | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Voltage | Reduced current hiccup protection | |
| Over Load | Reduced current hiccup protection | |
| Safety & EMC | Surge | L-N 6KV L-PE 10KV N-PE 10KV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA I/P-GND:1500Vac/1min/<5mA O/P-GND:500Vac/1min/5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS; 10PCS/Carton; –kg±5%/Carton; Carton Size:595*320*168mm(L*W*H) | |
| Dimension | 271*131*50mm（L*W*H） | |
