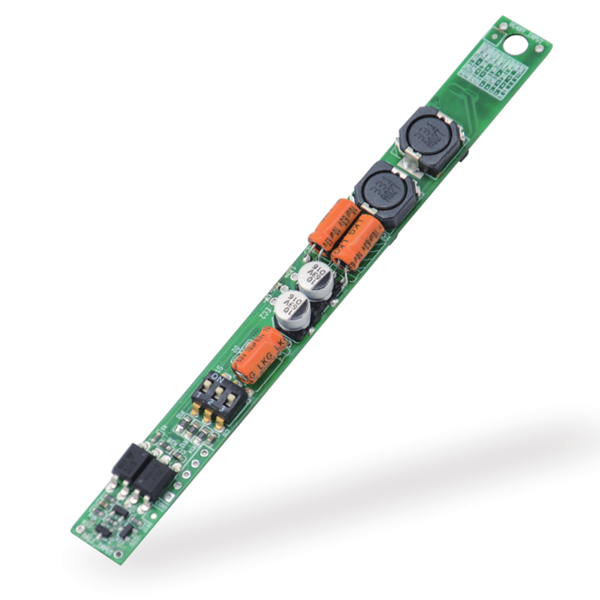

14W 120~350mA*2ch DALI DC-DC CC Driver BMP14D-2SMC
14W 120~350mA*2ch DALI DC-DC CC Driver BMP14D-2SMC
Features
·Two channel output, output current level selectable by DIP S.W.
·Meet DALI Protocol IEC 62386-209
·High efficiency up to 93 %
·Built-in active PFC function
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, Input reverse connection
·Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
|
Model |
BMP14D-2SMC | |
|
Input |
Efficiency | 93%@48VDC, full load |
| Voltage | 48VDC | |
| Current | 0.32Amax@48VDC, full load | |
| Standby Power | <0.5W | |
| Current/voltage/power | 120mA/9-40VDC 180mA/9-40VDC 240mA/9-40VDC 300mA/9-40VDC | |
| 150mA/9-40VDC 200mA/9-40VDC 270mA/9-40VDC 350mA/9-40VDC | ||
| Ripple Current | <5% | |
|
Output |
Channel | 2 |
| Current Tolerance | ±8%(9-40VDC) | |
| No-load Output Voltage | / | |
| Turn On Delay Time | <0.5s, at 48VDC | |
|
Function |
Dimming Type | DALI |
| Dimming Range | 7%-100% | |
| color temperature | 3000k-6000k | |
|
Protection |
Short circuit | Shut down the output self-recovery after removing the fault |
| Over load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Input reverse connection | Operation normally | |
|
Others |
Working Temp. | -20℃~60℃ |
| Storage Temp., Humidity | -40℃ ~85℃ 20-90%RH | |
| Tc | 80℃ | |
| Material | PC | |
| Ip Rating | IP20 | |
| Lifetime | 50,000h@ta:50℃ | |
| Warranty Condition | 5 Year | |
| Switch Cycle | 25,000 times | |
| Packing(Weight) | Net weight: 15g±5%/PCS; 200PCS/Carton; 3.7kg±5%/Carton; Carton Size: 276*180*136mm(L*W*H) | |
| Dimension | 126*11*7.2mm(L*W*H) | |
