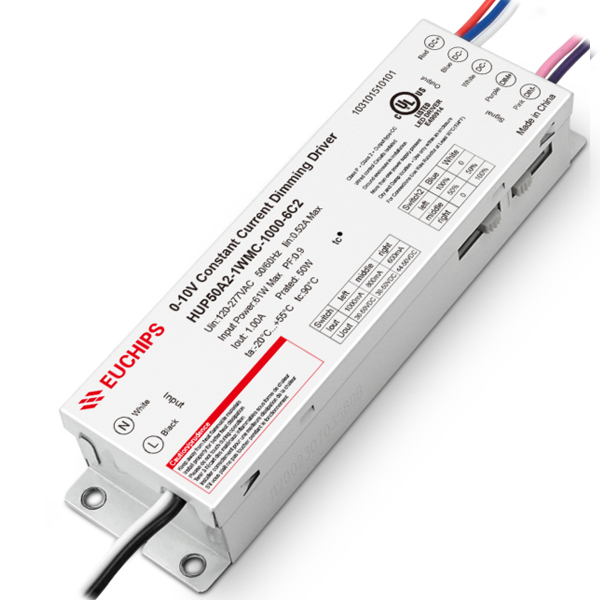

50W 1000mA 0-10V CC Driver HUP50A2-1WMC-1000-6C2
50W 1000mA 0-10V CC Driver HUP50A2-1WMC-1000-6C2
Features
• Wide input voltage of 108-305Vac
• Great Surge 2.5kV(ringwave)
• 50,000Hour Life @ Tc=90C
• 5 Years Warranty @ Tc<=90C
• ±5% Output Current Accuracy
• 0-10V
• UL Class P, Class 2
• Safety according to UL8750 &UL 1310
Technical Parameters
| Model | HUP50A2-1WMC-1000-6C2 | ||||
|
Input |
Efficiency | 86%@120Vac&Full-Load | |||
| Voltage | 120~277VAC | ||||
| Frequency | 47~63Hz | ||||
| Power Factor | >0.9@120Vac&Full-Load | ||||
| THD | <20%@120Vac&Full-Load | ||||
| Current | 0.52Amax@120Vac & Full-Load, | ||||
| Inrush Current | 40A peak, 1.2ms duration, <0.25A2s@120Vac, Cold Start | ||||
| Leakage Current | 0.75mA max @277Vac 60Hz, UL8750 | ||||
|
Output |
Switch | left | Middle | right | |
| Current(mA) | 1000mA | 800mA | 600mA | ||
| Voltage (VDC) | 30-50Vdc | 38-50Vdc | 44-50Vdc | ||
| Power(W) | 50W | 40W | 30W | ||
| Current Accuracy | ±5%Io | ||||
| Channel | 1 | ||||
| Ripple Current | Ip-p:8%Io max | ||||
| Setup Time | 0.75s max | ||||
| Auxiliary Power (Vaux) | N/A | ||||
| Function | Dimming Type | 0-10V | |||
|
Protection |
Surge Protection | L-N 2.5KV L/N-PE 2.5KV | |||
| Short Circuit | Auto recovery. The output recovers when short is removed. | ||||
| EMC | EMC | FCC Part 15 Class A | |||
|
Others |
Operating Temperature | -20℃～+55℃ ；10%RH～100%RH | |||
| Storage Temperature | -40℃～+85℃； 5%RH～100%RH | ||||
| MTBF | ≥320,000 hours, 75℃ case temperature (MIL-HDBK-217F) | ||||
| Lifetime | ≥50,000 hours, 90℃ case temperature, refer to life vs. Tc curve | ||||
| Case Temperature | 90℃ max, marked in the Tc point of label | ||||
| Dimensions | 6×1.8×1.1 by inch (body) | ||||
| Net Weight | 380g | ||||
| Packing | N/A | ||||
Notes: Unless specified, all the test results are measured in 25℃ room temperature.
* marked items are optional contact sales people to get the functions
