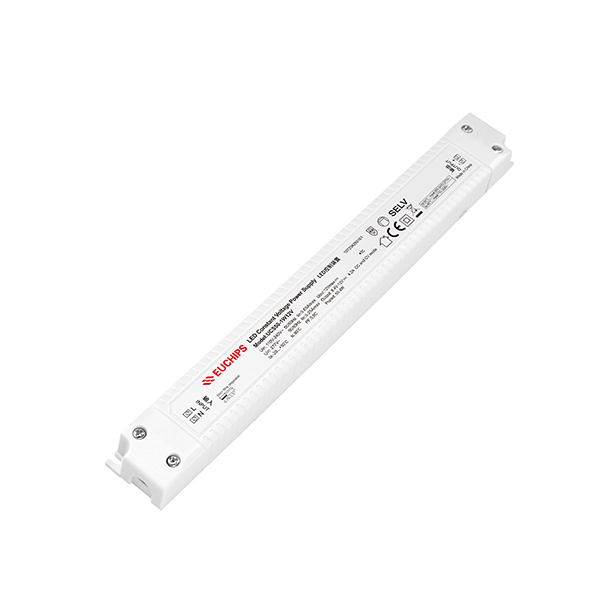

50W 12VDC Non-Dimmable CV LED Driver UCS50-1W12V

Short Description:

Item No.: UCS50-1W12V
Output Power: 50W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

50W 12VDC Non-Dimmable CV LED Driver UCS50-1W12V

Features

·Current + Voltage Output Mode
·Short circuit, overcurrent, overload protection, V0 flame-retardant housing
·Slim-profile linear design for easy installation in confined spaces
·50,000-hour lifespan with a 5-year warranty
·100% full-load burn-in testing
·IP20 rating for indoor LED strip applications

Technical Parameters

Model	UCS50-1W12V
Input	Rated Voltage Range	110VAC-305VAC
	Rated Voltage	110VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.55Amax@110VAC, 0.29Amax@230VAC, 0.25Amax@277VAC
	Power Factor	≥0.95@110-277/VAC, Full load
	Efficiency	>86%@110VAC, >89%@277VAC, Full load
	THD(full load)	<10%(@load≥60%/115VC,230VAC; @load≥75%/277VAC)
	Leakage current	<0.25mA / 277VAC
	Standby power	<0.5W
	No load power	<0.5W
	Inrush Current	Cold start 19A(Test twidth=158us at 50% Ipeak)/110VAC; Per NEMA 410
Output	Output Voltage	12VDC
	Constant Current Range	8.4 ~12V
	Output Voltage Tolerance	±3%
	Output Current	4.2A
	Output Power Range	50.4W
	Strobe (depth of fluctuation)	IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard（IEEE Std 1789-2015）
	Line regulation	±0.5% @Full load
	Load regulation	±1.5% @Full load
	Turn on Time	500ms, 80ms/115VAC, 230VAC
Protection	Short circuit	Hiccup Protection, Auto-recovery after Fault Clearance
	Overcurrent	Hiccup Protection, Auto-recovery after Fault Clearance
	Overload	Overload protection (≥110% rated power), Auto-recovery after Fault Clearance
	overvoltage	18~26V
Safety & EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA
	Safety standard	UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,
	Safety standard	BS EN/EN62384; EAC TP TC 004,GB19510.1,GB19510.14,IS15885(Part2/Sec13) ,EN60335-1 Certification passed
	EMC	CCC (China) GB/T17743，GB17625.1
	EMC	CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~+50℃
	Storage Temp.	-40℃~+85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	90℃
	material	Metal
	IP Rating	IP20
	Lifetime	50,000h@tc:75℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	2503017mm (LWH)
	Packing(weight)	Net weight: 115g±5%/PCS; 50PCS/Carton; 6.25kg±5%/Carton; Carton Size: 43528595mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
