5A*3ch 12-24VDC Connector CV DMX Decoder DIM101M-DIN

Short Description:

  • Item No.: DIM101M-DIN
  • Input Voltage: 12-24
  • Output Current: 5A*3CH
  • Output Voltage: 12-24
  • Output Power: 180-360
  • Dim Mode: DMX512
  • G.W.: 120
  • Size: 112*35*67

Product Detail

Product Tags

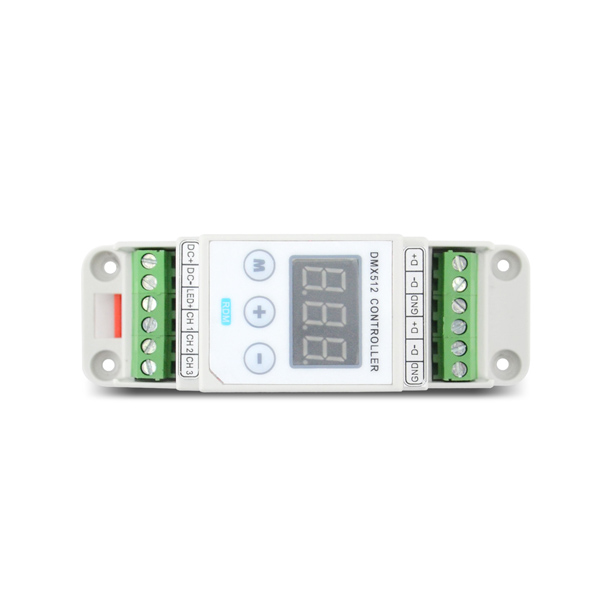

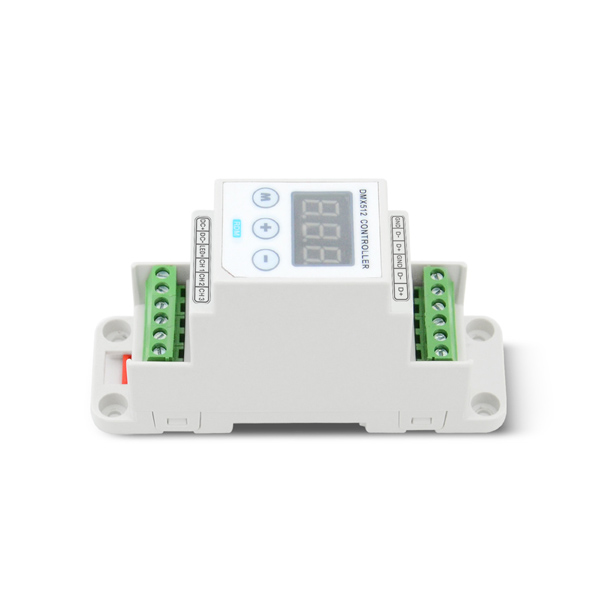

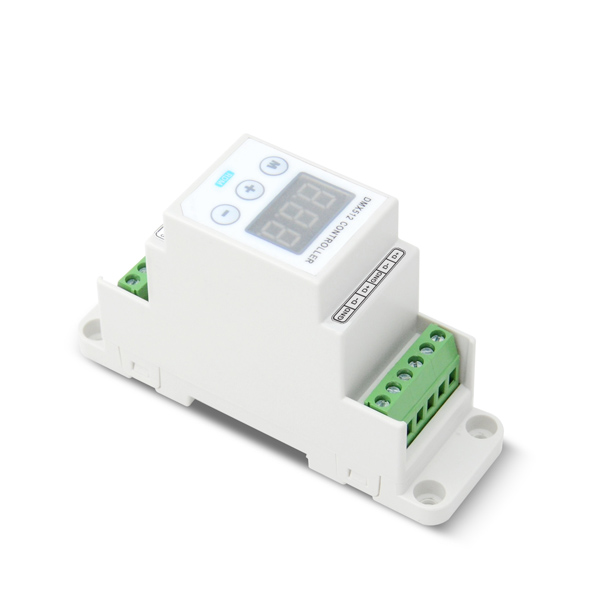

5A*3channel 12-24VDC Button Connector Constant Voltage DMX Decoder DIM101M-DIN


01. Meet DMX512 (1990)/RDM (2009) Protocol.
02.?3 channels PWM output, the max current of each channel up to 5A
03. With the light color selected mechanism, and be able to control the light with 1-3 colors
04.?DMX address can be set manually by button or RDM master if it works on RDM mode.
05. DC power supply
06. Support over current protection, short circuit protection function

Technical Parameter

Product Name 5A*3channel 12-24VDC Connector Constant Voltage DMX Decoder
Item DIM101M-DIN
Input Voltage 12-24VDC
Input Signal DMX/RDM Dimming signal
Output Current 5A*3Ch (Max)
Output Power 180W(12V)/360W(24V)
Output Channels 3
Dimming Output PWM
Dimming Range 0-100%

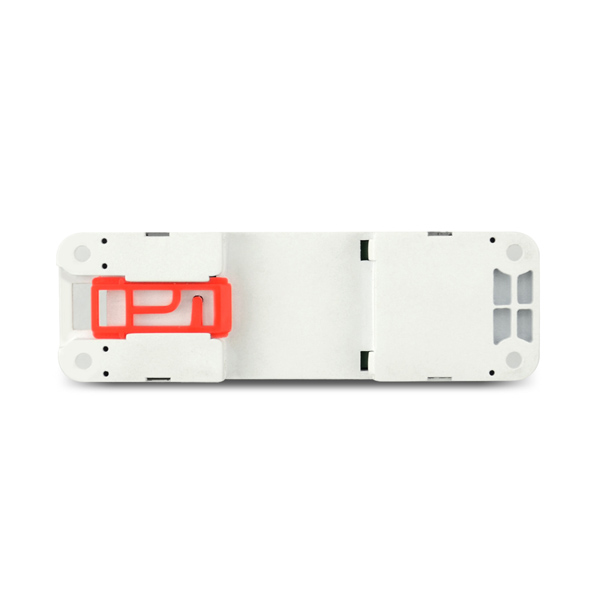

Installation Rail or Screw fixing
Mounting Rail TS-35/7.5 or TS-35/15
Product Size 112(L)*35(W)*67(H)mm
Pack Size 354(L)*234(W)*232(H)mm ??60Pcs/6.5kg/Carton
G.W 90g
Work Temperature -30 ~ 50


DMX / RDM 12-24V LED Decoder DIN Rail



DMX / RDM 12-24V LED Decoder DIN Rail



Wiring Diagram
