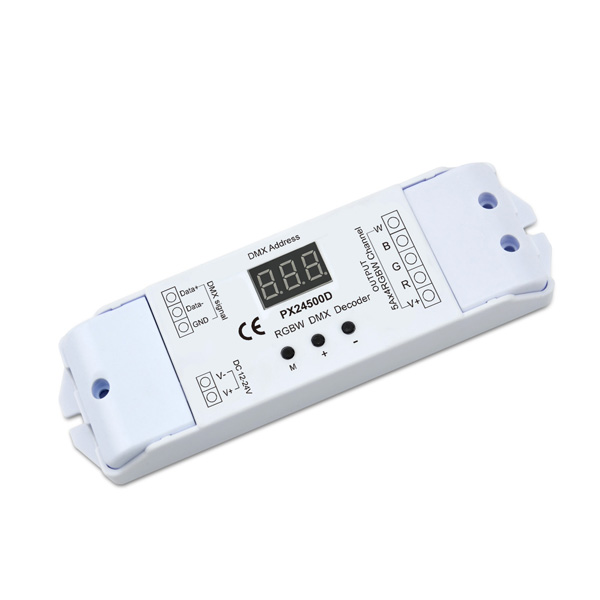

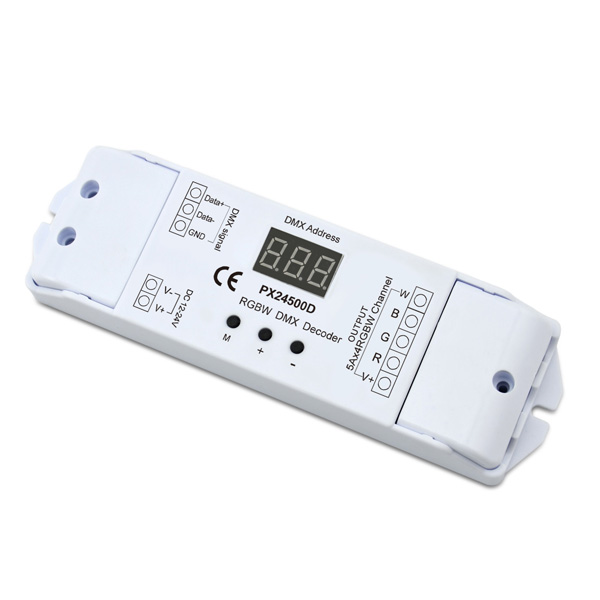

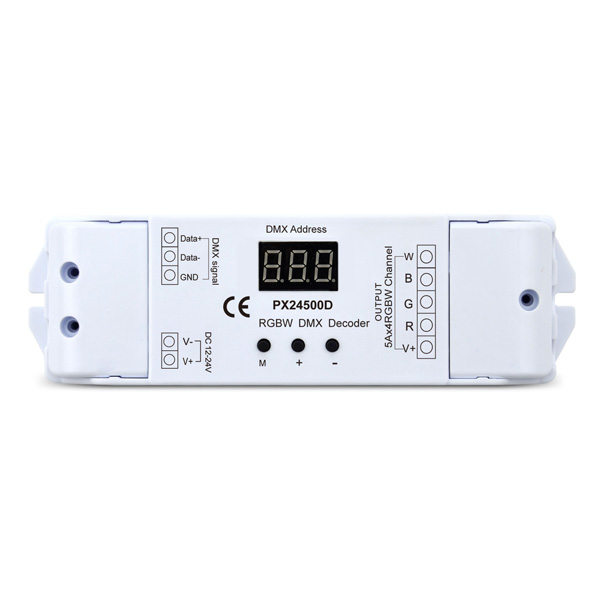

5A*4ch 240~480W 12-24VDC Connector Button Constant Voltage DMX Decoder PX24500D

Short Description:

  • Item No.: PX24500D
  • Input Voltage: 12-24
  • Output Current: 5A*4CH
  • Output Voltage: 12-24
  • Output Power: 240-480
  • Dim Mode: DMX512/1990
  • G.W.: 165
  • Size: 168*51*22

Product Detail

Product Tags

5A*4ch 240~480W 12-24VDC Connector Button Constant Voltage DMX Decoder PX24500D

Features

01. Meets DMX512/1990

02. With 4 channels output and Max.5A/CH output

03. Decoder can Diagnose & Indicate DMX512 signal status(Not Connected, Pause, Normal), easy for using

04. Can set the DMX address more easily by Keys

05. With the light color selected mechanism, and be able to control the light with 1~4 colors

06. 256-level brightness,full-color control,with control system,can express perfect effect

07.Use Logarithmic dimming curve, smooth dimming effect

08. For customer setup and use easily, the default address code is 1

Technical Parameter



Product Name DMX512 Constant Voltage Decoder
Item PX24500D
Decode CH. 4CH
Input Signal DMX-512/1990 digital signal
Output Signal can drive 5A max(Each CH.)
Power Supply DC 12~24V
Power Dissipation <1W
Power Output <480W(24V);<240W(12V)
Operating Tempeture -20~50℃
Size 168(mm)*51(mm)*22(mm)
Weight 160g
