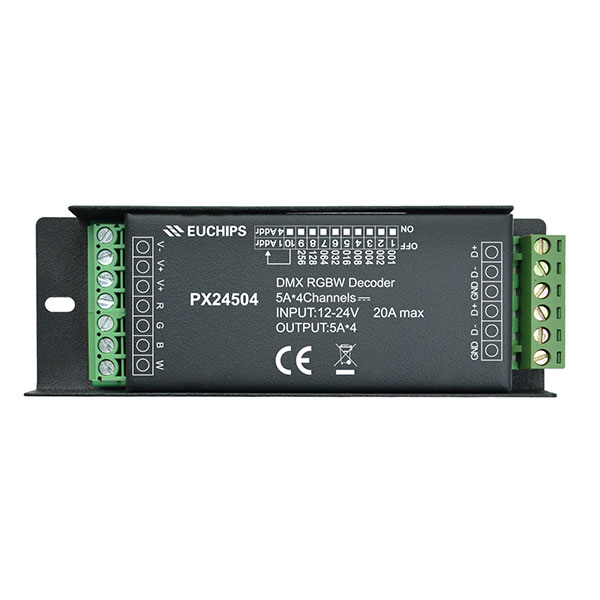

5A*4ch 240~480W 12-24VAC Connector DIP Switch CV DMX Decoder PX24504
5A*4ch 240~480W 12-24VAC Connector DIP Switch Constant Voltage DMX Decoder PX24504
Feature
1. Designed to comply with DMX512/1990
2. DMX address can be set manually via dip-switch
3. Constant voltage output and the maximum current of 5A /ch
4. European terminals for input/output ports & Plug-in Terminals for DMX signal ports
5. 256 grade brightness adjustment
Technical Parameter
| Product Name | Constant Voltage DMX Decoder | |
| Model | PX24504 | |
| Output | Voltage | 12-24VDC |
| Current | 5A/ch | |
| Power | 240W(12V)/480W(24V) | |
| Channel | 1-4 | |
| Input | Voltage | 12-24VDC |
| Standby loss | ＜1W | |
| Others | Dimension | 120*42*23mm |
| Packaging Size | 123*45*27mm | |
| G.W. | 150g | |
| Working temperature | -20℃ ~ 50℃ | |
| Relative humidity | 20~90% RH | |
