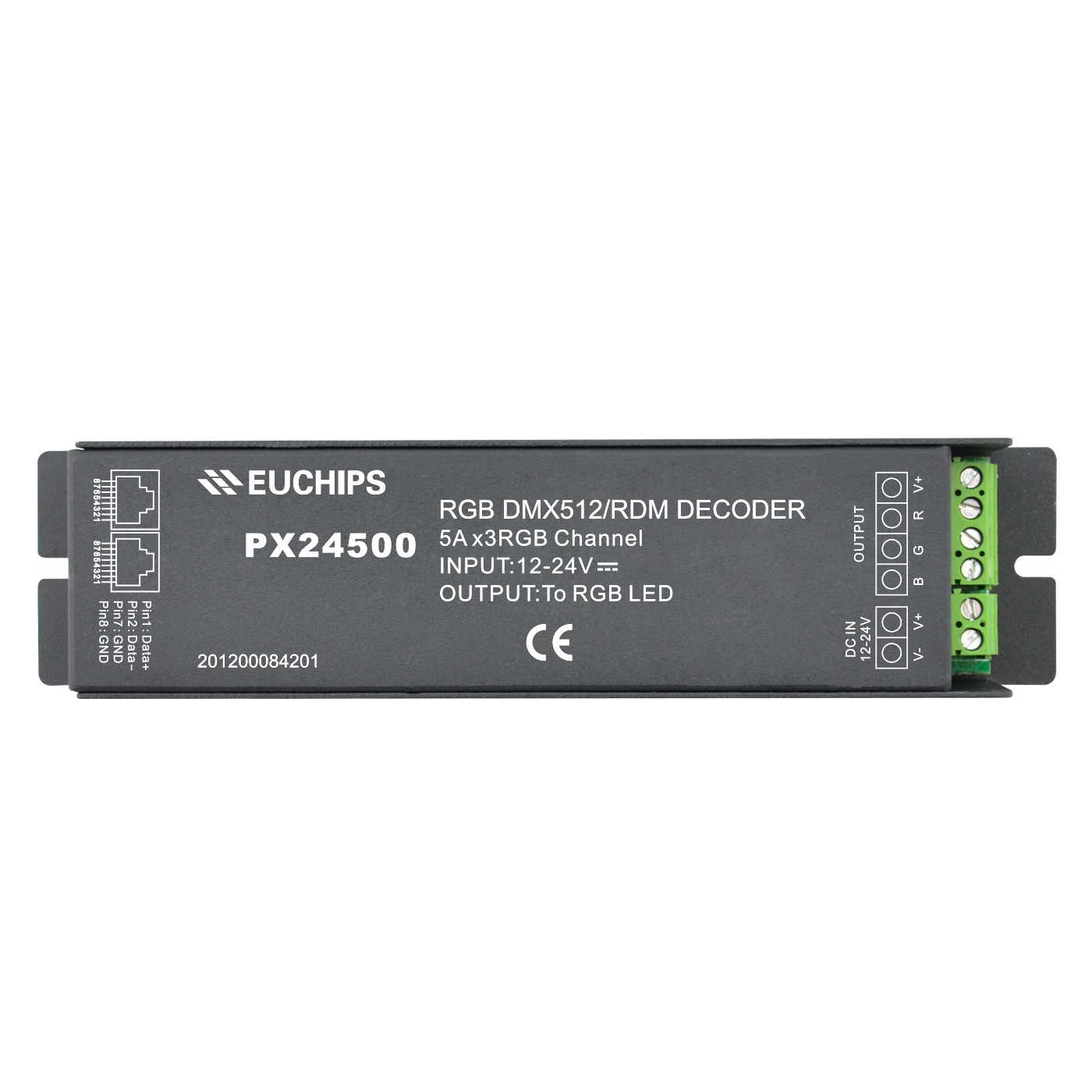

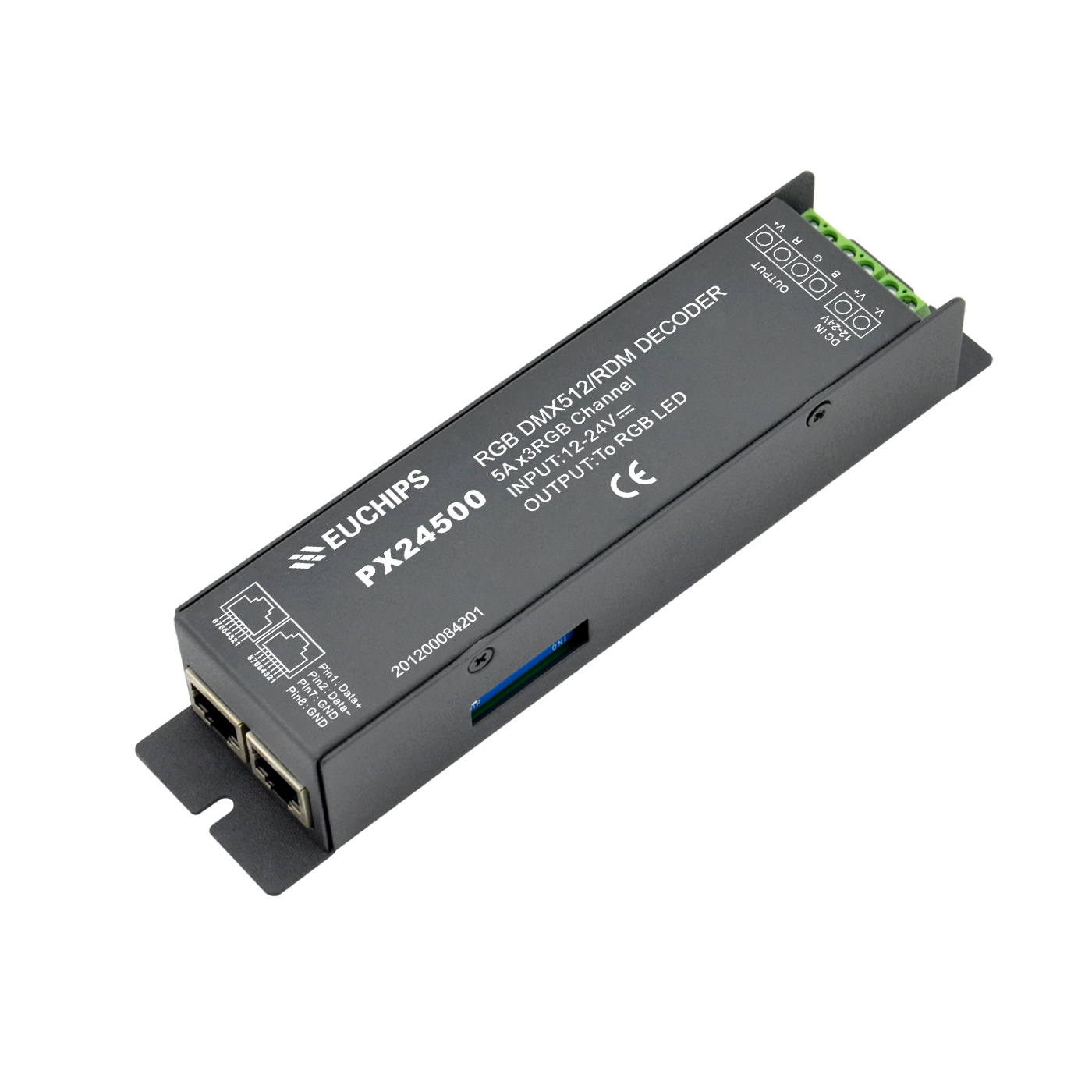

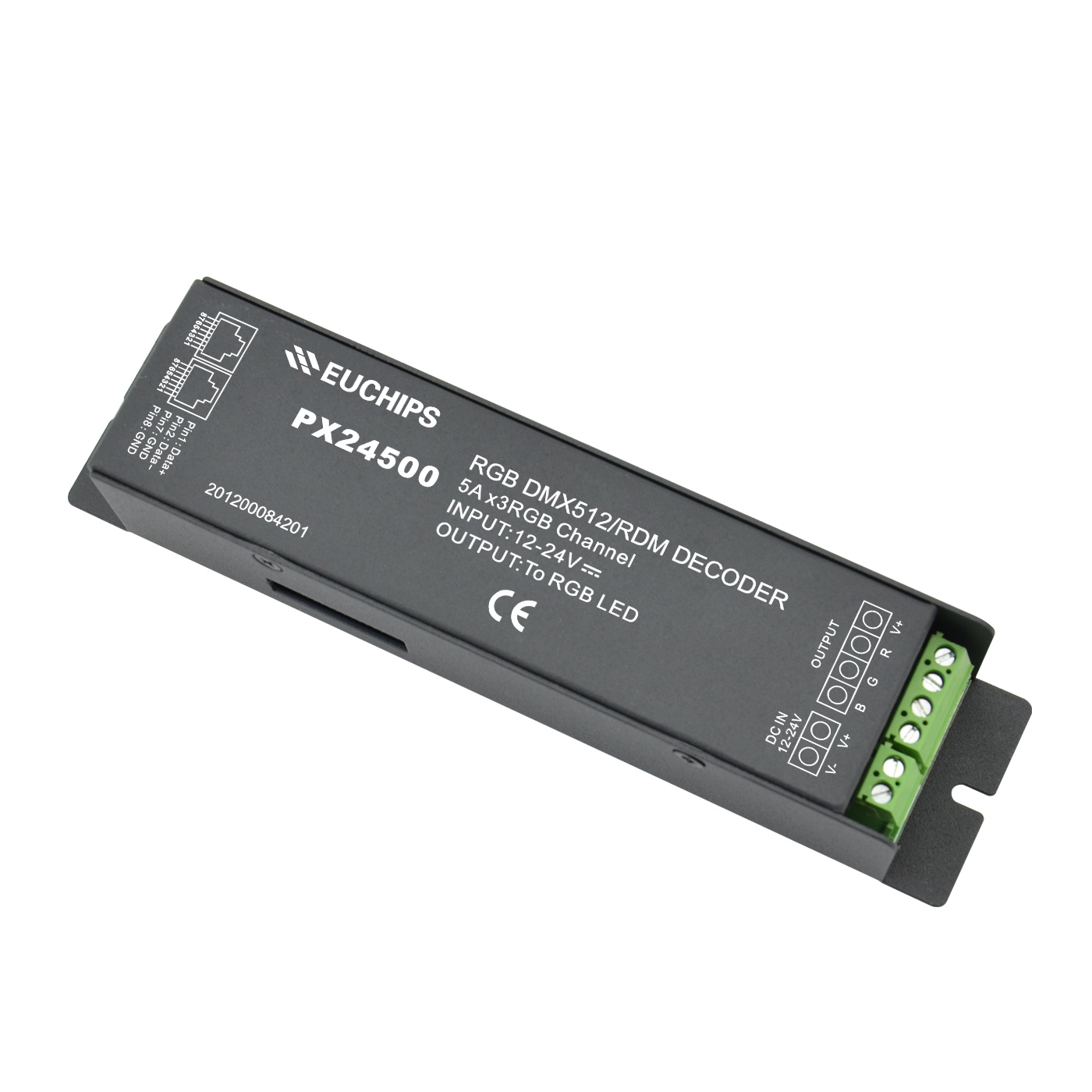

5A*3ch Constant Voltage DMX Decoder PX24500

Short Description:

Item No.: PX24500
G.W.: 263g

Product Detail

Product Tags

5A*3ch Constant Voltage DMX Decoder PX24500

Thank you for using PX series DMX512 decoder.With advanced micro-computer controltechnology,PX series convert the widely used DMX512/1990 signal to analog signal.Can choose 1~3 outputchannel,256-level brightness control.For connecting of light consoleand analog device,or lighting&building lamps controlling.

Features
·Meets DMX512/1990
·256-level brightness,full-color controlP
·3 output CH.,can drive 5A(Each CH.)
·With control system,can express perfect effec
·Can drive 1~3 channel of each lamp
·Can set the DMX address freely
·High interference resistant, short circuit and over-currentprotect,self-recovery function available
·With RDM remote management protocol, it can be used for parameter browsing and setting, DMX address modification, device identification and other operations through RDM master Can be custom-made

Technical Parameters
Decode CH: 1-3
Input Signal: DMX-512/1990 digital signal
Output Signal: 0~24V PWM signal,can drive 5A(Each CH.)
Power Supply: DC,+12~24V
Power Dis: <1W
Power Output: <360W(24V);<180W(12V)
Working temperature: 0~70℃
Equipment dimensions: 177(mm)*41.5(mm)*33.5(mm)
Packing measurement: 180(mm)*43(mm)*38(mm)
Net Weight: 242.5g
Gross weight: 263g
