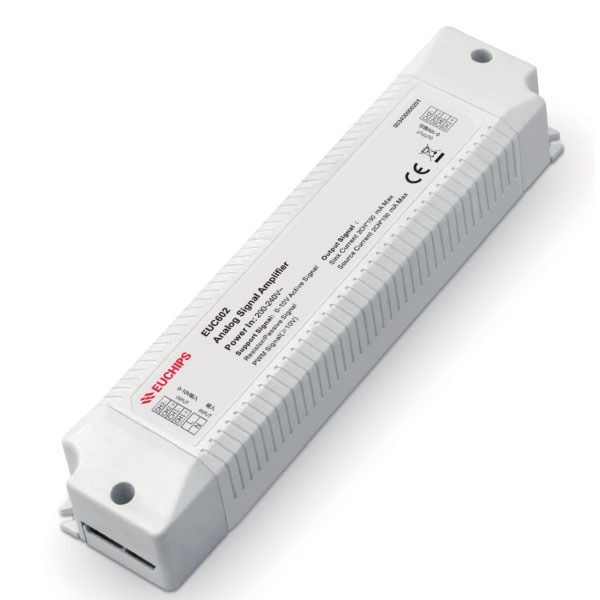

0-10V Analog Signal Amplifier EUC602
0-10V Analog Signal Amplifier EUC602
Features
Amplify driving ability of 0-10V signal, or convert PWM, passive signal to 0-10V signal
Support active and passive 0-10V color temperature (adjustable resistance) and PWM signal input
High quality amplifier, output current of 150mA
Used for the situation that the main controller’s driver ability isn’t enough
Technical Parameters
| Model | EUC602 | |
| Output | Accuracy Channels | 2 |
| Voltage | 0-10VDC | |
| Current | 150mA | |
| Input | Voltage | 200-240VDC |
| Signal | 0-10V active signal, resistance/passive signal, or PWM signal | |
| Others | Dimension | 185*42.5*28.5 mm（L*W*H) |
| Packing Size | 430*306*168 mm(L*W*H),50pcs/6.2kg/Carton | |
| G.W. | 115g | |
| Working temp. | -20℃~50℃ | |
| Relative Humidity | 20~90% RH | |
