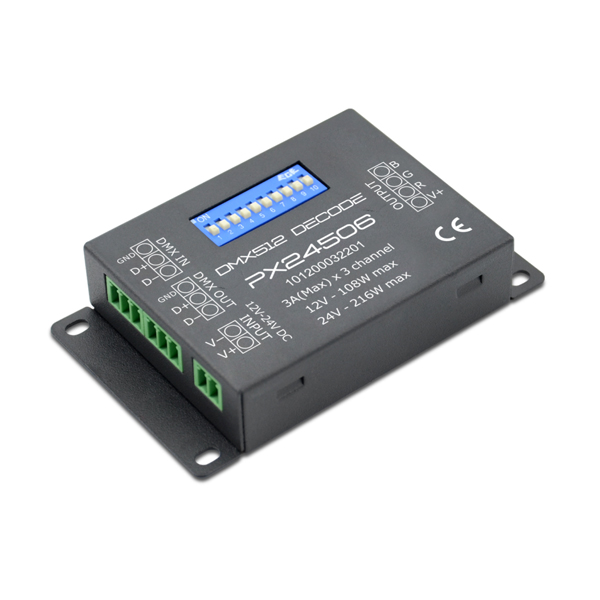

3A*3ch DMX512/RDM Decoder PX24506
3A*3ch DMX512/RDM Decoder PX24506
Features
· Meets DMX512/1990
· 256-level brightness,full-color control
· With 3 channels output and Max.3A/CH output
· With control system,can express perfect effect
· With the light color selected mechanism, and be able to control the light with 1~3 colors
· Can set the DMX address freely
· Can be custom-made
Technical Parameters
Decode CH.： 3CH
Input Signal： DMX-512/1990 digital signal
Output Signal： can drive 3A(Each CH.)
Power Supply： DC 12~24V
Power Dis.： <1W
Power Output： <216W(24V);<108W(12V)
Operating Temp.： 0~50℃
Size： 86(mm)*51(mm)*17.8(mm)
Weight： 136g
