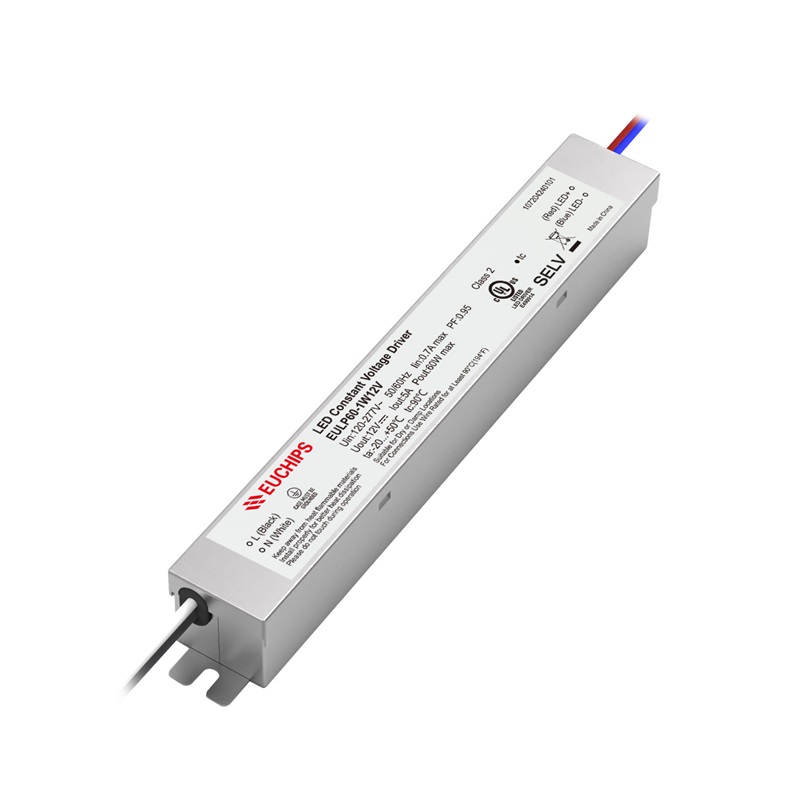

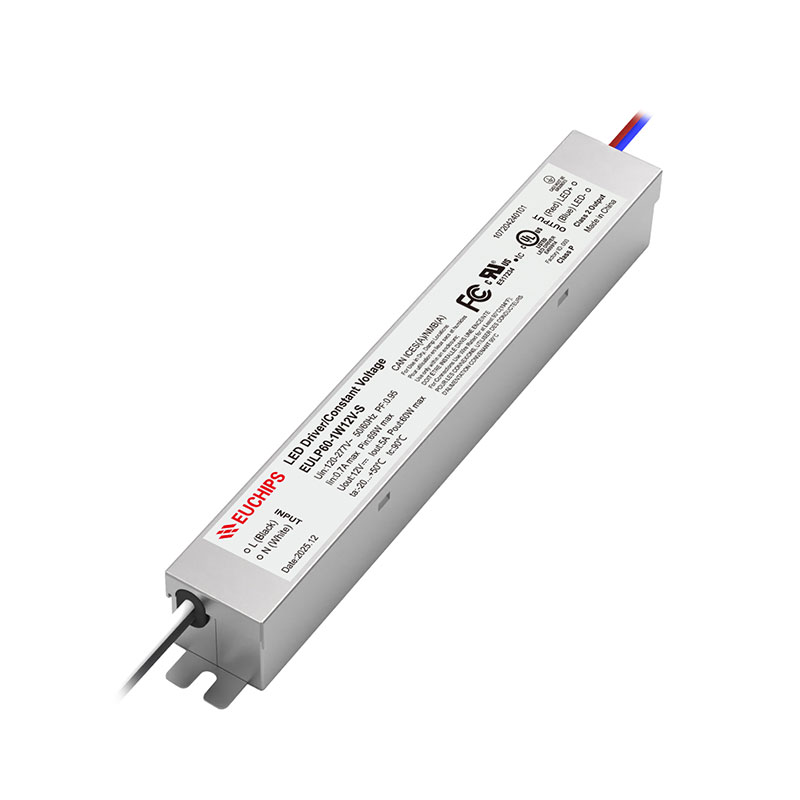

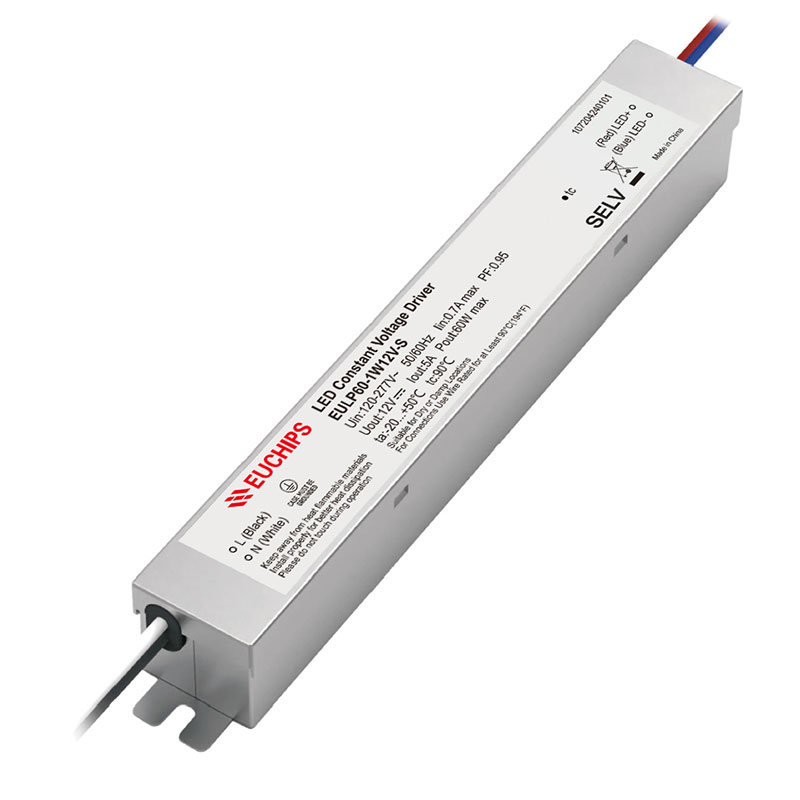

60W 12VDC Non-dimmable CV Driver EULP60-1W12V
60W 12VDC Non-dimmable CV Driver EULP60-1W12V
EULP60-1W12V is a constant voltage output LED driver. The compact body is easy to install in small spaces, with stable output and high efficiency.
Features
• Supply Voltage: 120-277Vac
• Protection:Short-circuit, Over load, Over Current, Over Temperature
• 50,000Hour Life @tc=70℃
• 5 Year Warranty
• Safety according to UL8750
• Suitable for Dry , Damp Locations
• Suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP60-1W12V | |
| Input | Efficiency | >88%@120VAC, full load |
| Rated Voltage | 120~277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Electric current | 0.70Amax@120VAC 0.40Amax@230VAC 0.30Amax@277VAC | |
| Power Factor | ≥0.95@120VAC, full load | |
| THD | <20%@120VAC, full load | |
| Inrush Current(max) | 14.8A@120VAC,1.6US 26A@277VAC,1.56US | |
| Standby power | <2.5W [@120VAC] | |
| No load power | <2.5W [@120VAC] | |
| Turn on Time | <0.5S [@120VAC, When the light begins to shine] | |
| Output | Output Current | 5A |
| Output Voltage | 12VDC | |
| Voltage range | 12VDC±5% | |
| Output Power Range | 60W | |
| Channel | 1 | |
| Over power limit | ≥130% | |
| Ripple Voltage | ≤600mv | |
| frequency | 20KHz PWM | |
| Protection | Short-circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Over load | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over Temperature | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Safety& EMC | Surge | L-N:2000VAC, L-N-PG:2000VAC |
| Withstand Voltage | I/P-O/PI:2000Vac/1min/<5mA, I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA | |
| Safety standard | UL8750 listed Class 2 | |
| EMC | FCC PART15 class A | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | [-20~+50]°C [-4°F~122°F] |
| Storage Temp., Humidity | [-40~+85]°C [-40°F~185°F] 5~90%RH | |
| tc | 90°C [ 194°F ] | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50000h, @tc:70°C [ 158°F ] | |
| Warranty Condition | 5years | |
| Switch Cycle | 25000times | |
| Packing(weight) | Net weight:120g | |
| Dimension | 144*20.4*20mm(L*W*H) | |
