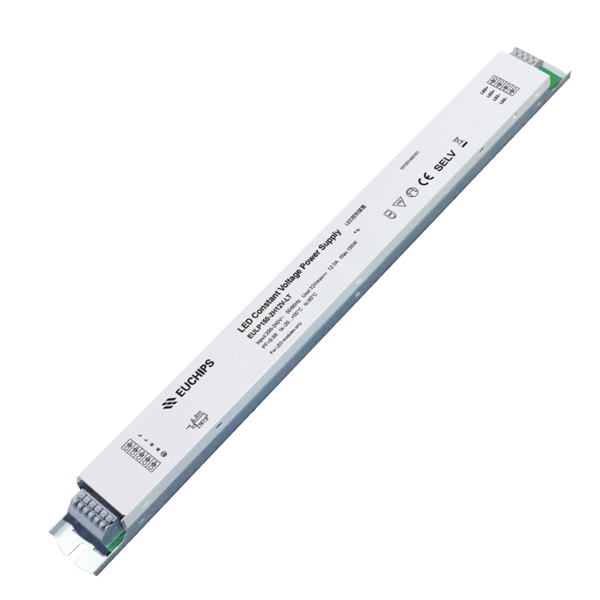

150W 12VDC 2ch Non-dimmable CV Driver EULP150-2H12V-LT
150W 12VDC 2ch Non-dimmable CV Driver EULP150-2H12V-LT
Features
·Single channel output, Constant Voltage output
·Built-in active PFC function
·No flicker
·Protections: Over load, short circuit
·Suitable for indoor LED lighting application, vapor light, and so on
Technical Paramaters
| Model | EULP150-2H12V-LT | |
|
Input |
Efficiency(Full load) | 90%@230VAC |
| Voltage | 200VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor(Full load) | ≥0.98@230VAC | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.8Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start, 60A@230VAC | |
| Output | Current(mA)/Voltage(VDC)/Power(W) | 12.5A/12V/150W |
| Ripple Current | <3% | |
| Channel | 2 | |
| Voltage Tolerance | ±3% | |
| No load output voltage | 12V±5% | |
| Protection | Short circuit | Close output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
|
Safety & EMC |
Surge | L-N:2KV; L&N-G:4KV |
| Withstand Voltage | I/P-O/P:3.75kVac; I/P-FG:1.9kVac; O/P-FG:1.0Vac; | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20°C~50°C |
| Storage Temp., Humidity | -20°C~50°C, 20-90%RH | |
| tc | 90°C | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc: 80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(mm L*W*H) | N.W: 396g±5%/PCS; 50PCS/Carton; 20.3kg±5%/Carton; Carton Size:502*418*149mm(L*W*H) | |
| Dimension | 360*30*21mm(L*W*H) | |
