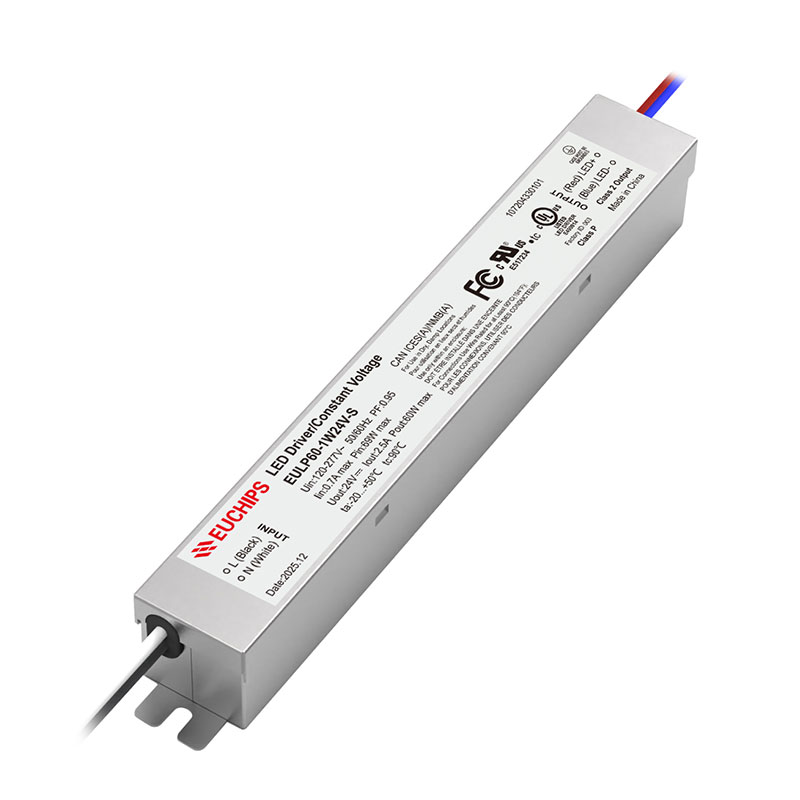

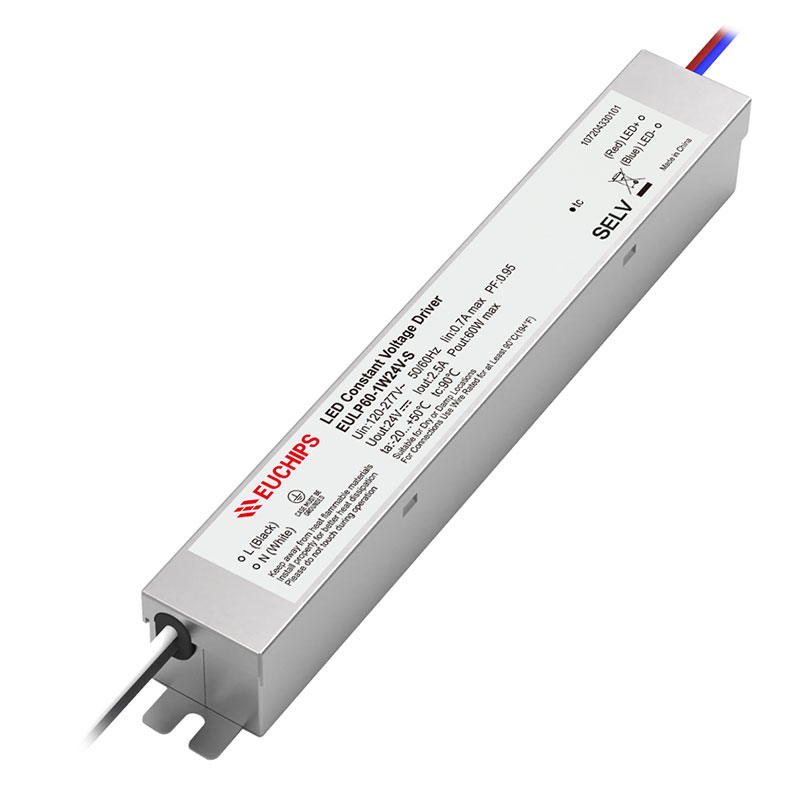

60W 24VDC Non-dimmable CV Driver EULP60-1W24V-S
60W 24VDC Non-dimmable CV Driver EULP60-1W24V-S
Features
· Input voltage range: 120-277Vac
· Protection: Short-circuit, Over load, Over Current, Over Temperature
· Lifespan: 50,000 hours @ tc 75℃
· Class 2 output
· Complies with UL8750 and UL 879 safety standards
· It is suitable for both dry and damp places
· It is suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP60-1W24V-S | |
| Input | ≥89%@120VAC , ≥91%@277VAC , Full load | |
| Voltage | 120~277 VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.70Amax @120VAC , 0.40Amax@230VAC , 0.30Amax@277VAC | |
| PF | >0.95@120V-277AC , Full load | |
| THD | <20%@From 100% to 60% of rated power | |
| Inrush current | Cold start , 19.9A@120VAC, 1.48US 49.2A@277VAC, 1.48US | |
| Standby power consumption | ≤2.5W@120VAC | |
| No load power | ≤2.5W@120VAC | |
| Turn on delay Time | <0.5s, at120VAC (When the light begins to shine) | |
| Output | Current | 2.5A |
| Voltage | 24VDC | |
| Output Voitage | 24VDC±5% | |
| Power | 60W | |
| Channel | 1 | |
| Over power limit | ≥130% | |
| Ripple Voitage | ≤600mV | |
| Protection | Short-circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Over load | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over Temperature | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Safety&EMC | Surge | L-N:2000VAC, L-N-PG:2000VAC |
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA, I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA | |
| Safety standard | UL8750 listed Class 2 | |
| EMC | FCC PART15 ClassA | |
| Insulation Resisance | 5Mfi | |
| Others | Dimension | 144*20.4*20mm (5.66*0.80*0.787Inch) (L*W*H) |
| Packing size | Net weight: 120g(0.26 lb)±5%/PCS; 60PCS/Carton; 7.7kg(16.98 lb)±5%/Carton; Carton Size: 313*197*154mm (L*W*H) | |
| Working temp. | ta:-20~+50℃ , (-4°F-122°F) | |
| tc | 90℃ (194°F) | |
| Storage Temp Humidity | -40℃ ~85℃ (-40°F-185°F) , 5-90%RH | |
| Lifetime | 50,000h@tc:75℃ (167°F) | |
| Warranty | 5years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | >25000 times | |
