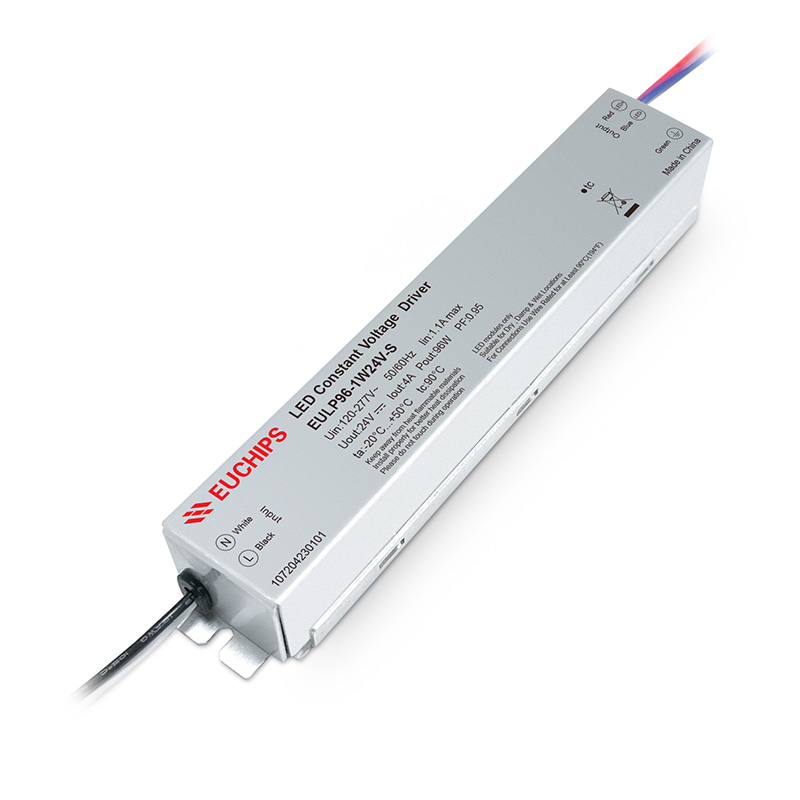

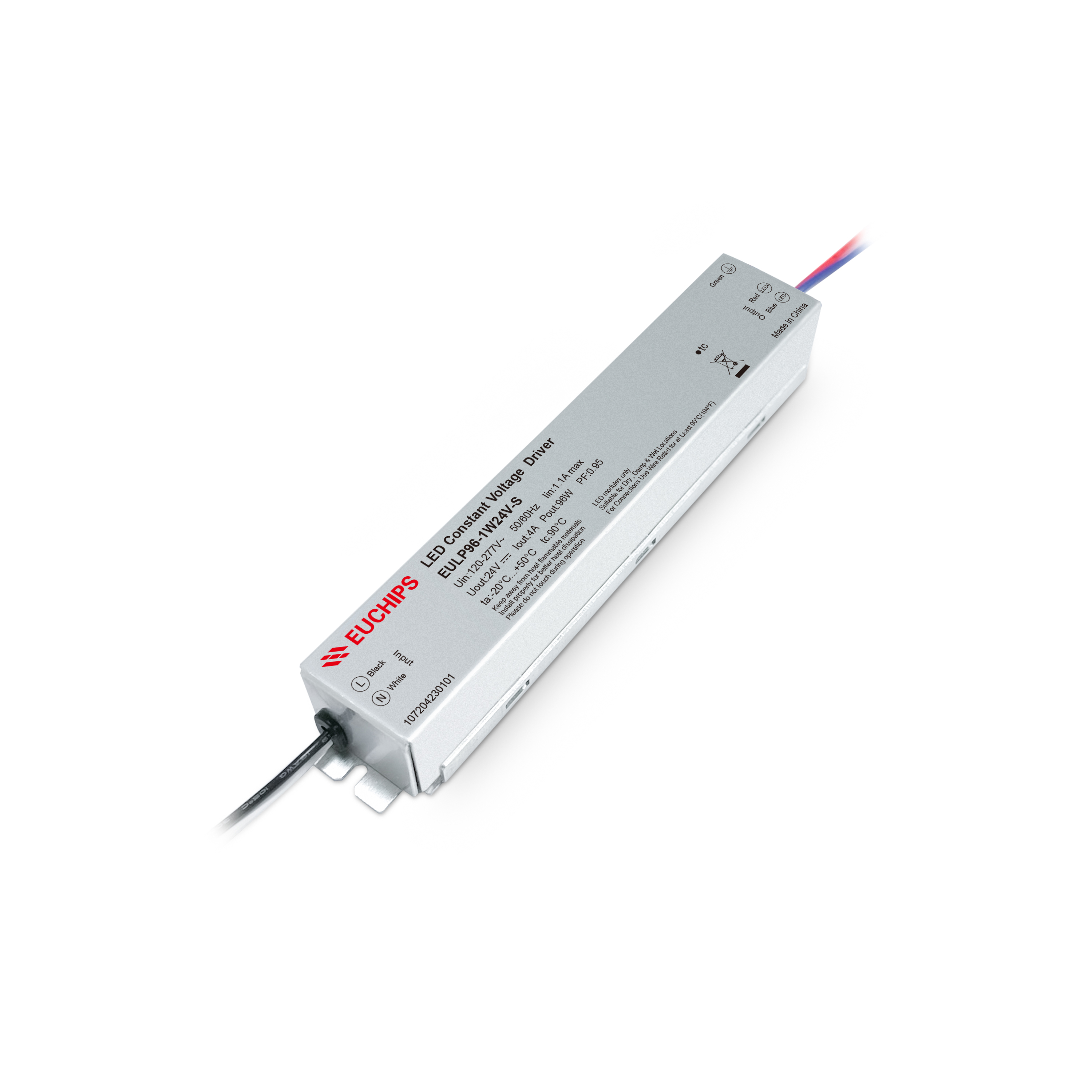

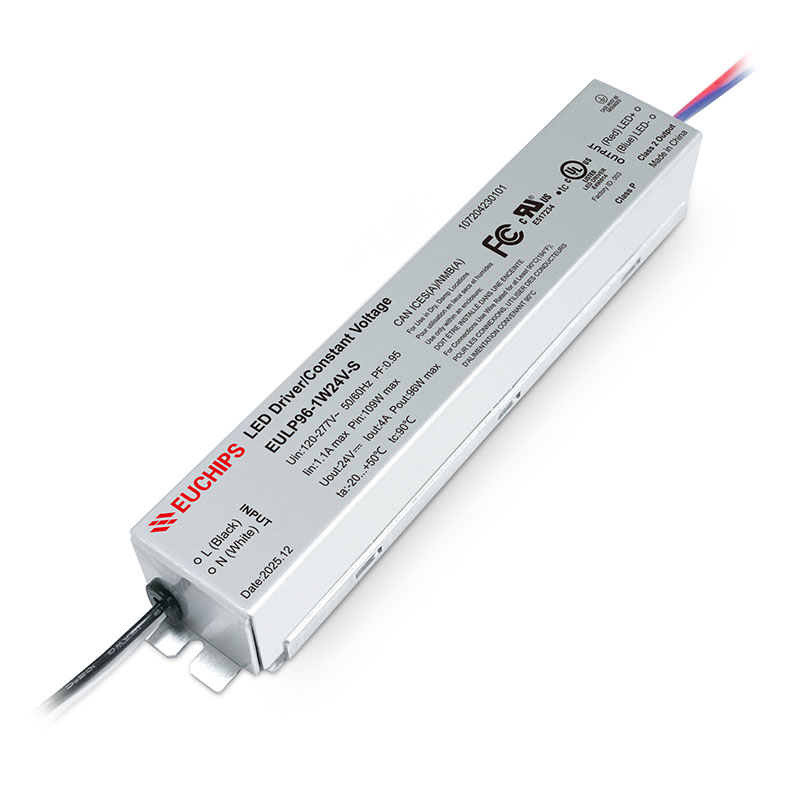

96W 24VDC Non-dimmable CV Driver EULP96-1W24V-S
96W 24VDC Non-dimmable CV Driver EULP96-1W24V-S
Features
· Input voltage range :120-277Vac
· Protection: Overload, short circuit, overcurrent, over-temperature
· Lifespan: 50,000 hours @ tc 70 ℃
· Class 2 output
· Complies with UL8750 and UL 1310 safety standards
· The compact body makes it easy to install in narrow Spaces
· It is suitable for both dry and damp places
· It is suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP96-1W24V-S | |
| Input | Voltage | 120~277 Vac |
| Frequency Range(Hz) | 50/60Hz | |
| ≥88%@120VAC, ≥92%,277VAC | ||
| PF | >0.95@120VAC, >0.95@277V , full load | |
| Current | 1.1Amax @120VAC 1.1Amax@277VAC , full load | |
| THD | <10%@120VAC , <20%@277VAC , full load | |
| Inrush current | Cold start , 8.6A@120VAC 140us , 3.6A@277VAC 120us | |
| No load power | ≤2.5W@120VAC | |
| Standby power consumption | ≤2.5W@120VAC | |
| Turn on delay Time | 0.5s, at 120Vac (When the light begins to shine) | |
| Output | Channel | 1 |
| Voltage | 24V | |
| Current | 4A | |
| Output Voltage | 24V±2% | |
| Power | 96W | |
| Ripple Voltage | ≤700mV | |
| Protection | Over load | Current reduction hiccup protection, self-recovery after fault elimination |
| Short circuit | Turn off the output and it will recover automatically after the fault is eliminated | |
| Over current | Current reduction hiccup protection, self-recovery after fault elimination | |
| Over temperature | Current reduction hiccup protection, self-recovery after fault elimination | |
| Safety&EMC | Surg | L-N : 2KV, L-N-PG : 2KV |
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA , I/P-G:1500Vac/1min/<5mA , O/P-G:500Vac/1min/<5mA | |
| Safety standards | UL8750 listed Class 2 | |
| EMC Emission | FCC PART15 ClassA | |
| Insulation Resistance | 5MΩ | |
| Others | Dimension | 151*29*22mm (5.94*1.14*0.866 Inch) ((L*W*H) |
| Packing size | Net weight: —g±5%/PCS; —PCS/Carton; —kg±5%/Carton; Carton Size: —*—*—mm(L*W*H) | |
| Working temp. | ta:-20~+50℃ , (-4°F-122°F) | |
| tc | 90℃ (194°F) | |
| Storage Temp., Humidity | -20℃ ~90℃ (-4°F-122°F) , 20-90%RH | |
| Lifetime | 50,000h@tc:70℃ (158°F) | |
| Warranty | 5years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | >25000 times | |
