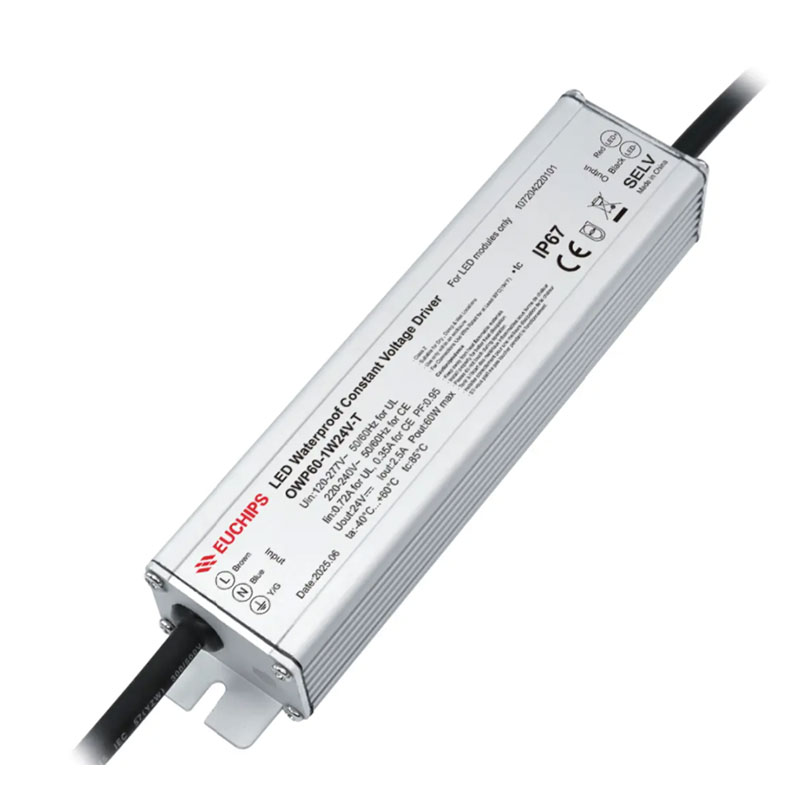

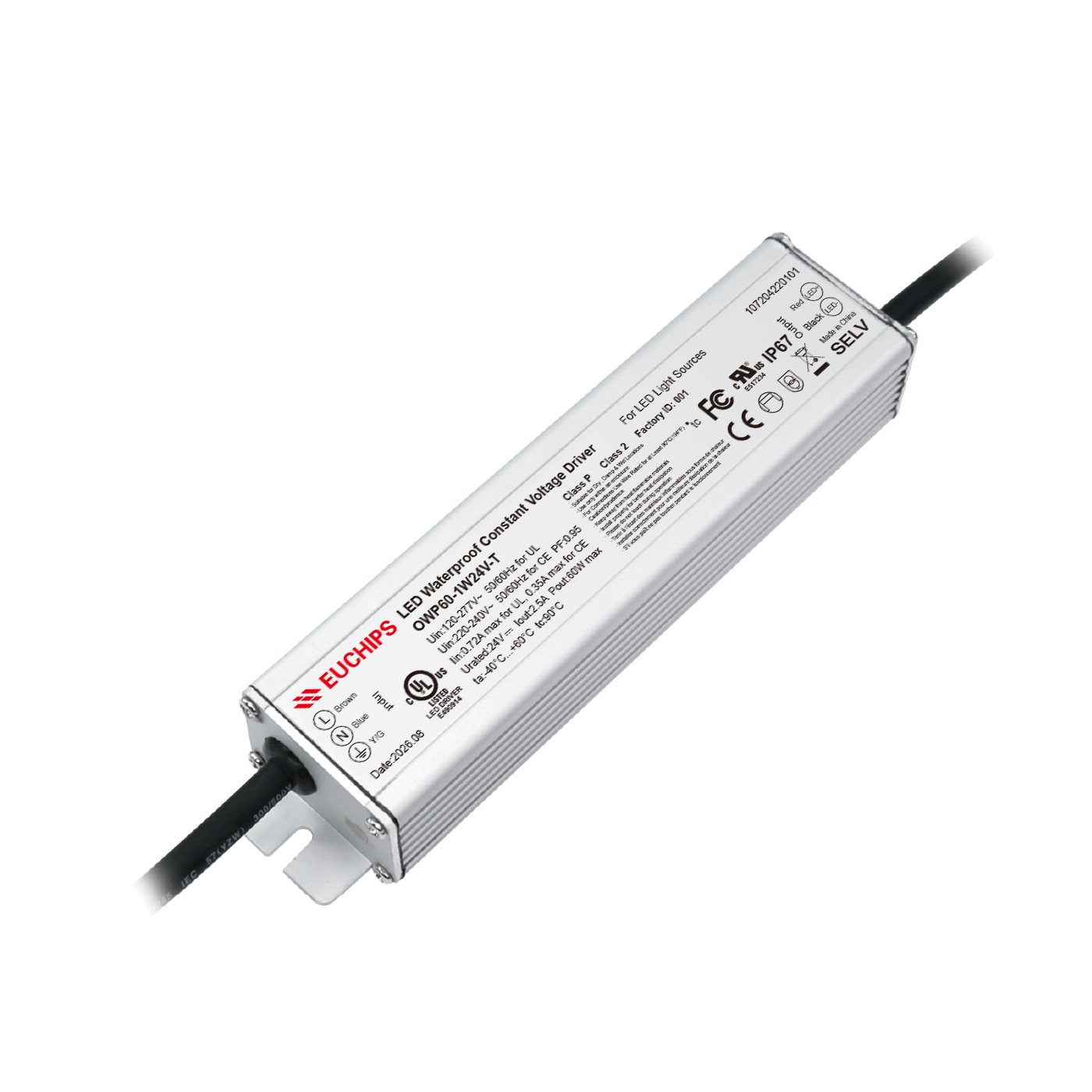

60W 24VDC Non-dimmable Waterproof CV Driver OWP60-1W24V-T
60W 24VDC Non-dimmable Waterproof CV Driver OWP60-1W24V-T
Features
· Ambient Temperature: (-40 to +60) ℃
· Ripple: ≤240mV (p-p)
· Certifications: CE + UL compliant
· Surge Protection:L-N 6KV，L/N-G 6KV
· Compact Size
· Waterproof Connector Supported
· Short circuit, Overload, Overcurrent, Over-Temperature Protection (OTP)
· Suitable for Dry, Damp & Wet Locations
Technical Parameters
|
Input |
Voltage | UL Rated 120-277Vac，CE Rated 220-240Vac |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥88%@120VAC, ≥89%@230VAC, ≥90%@277VAC, full load | |
| PF | ≥0.95@120V-277VAC,full load | |
| Current | 0.7A max@120VAC, 0.35A max@230VAC, 0.28A max@277VAC, full load | |
| THD | <10%@120-277VAC, full load | |
| Inrush current | Cold start, 18A@120VAC 200us, 36A@230VAC 200us, 46A@277VAC 210us, | |
| No load power | <0.5W | |
| Turn on Time | ≤ 0.5 s, at120-270Vac (When the light begins to shine) | |
|
Output |
Voltage | 24VDC |
| Voltage Accuracy | ±3% | |
| Current | 2.5A | |
| Power | 60W | |
| Channel | 1 | |
| Ripple Voltage | ≤240mV(p-p) | |
|
Protection |
Over load | Hiccup Protection, Auto-recovery after Fault Clearance |
| Short circuit | No Output, Auto-recovery after Fault Clearance | |
| Over Current | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over temperature | Output power drops to 50% at 75-80°C ambient (Tc ≈95°C-100°C ), recovering automatically when temperature normalizes. | |
|
Safety&EMC |
Surge | L-N 6KV L/N-G 6KV |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA, I/P-G:1800Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA, | |
| Safety standards | EN61347-1，EN61347-2-13 ，UL8750，UL1310，UL879 | |
| EMC Emission | EN55015， FCC Part 15 Class B | |
| EMC immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Dimension | 181*40.8*30mm(7.13*1.61*1.18 Inch)(L*W*H) |
| Packing size | Net weight: 385g (0.849 lb)±5%/PCS; 30PCS/Carton; 12.05kg (26.57 lb)±5%/Carton; Carton Size: 425x185x170mm(7.13*1.61*1.18 Inch)(L*W*H) | |
| Working temp. | ta:-40-60℃(-40°F~140°F) | |
| tc | 85℃(185°F) | |
| Storage Temp., Humidity | -40℃~85℃(-40°F~185°F), 20-90%RH | |
| Lifetime | 50,000h@tc:85℃(185°F) | |
| Warranty | 5 years | |
| IP rating | IP67 | |
| Material | Metallic/Silver | |
| Switch cycle | >25000 times |
