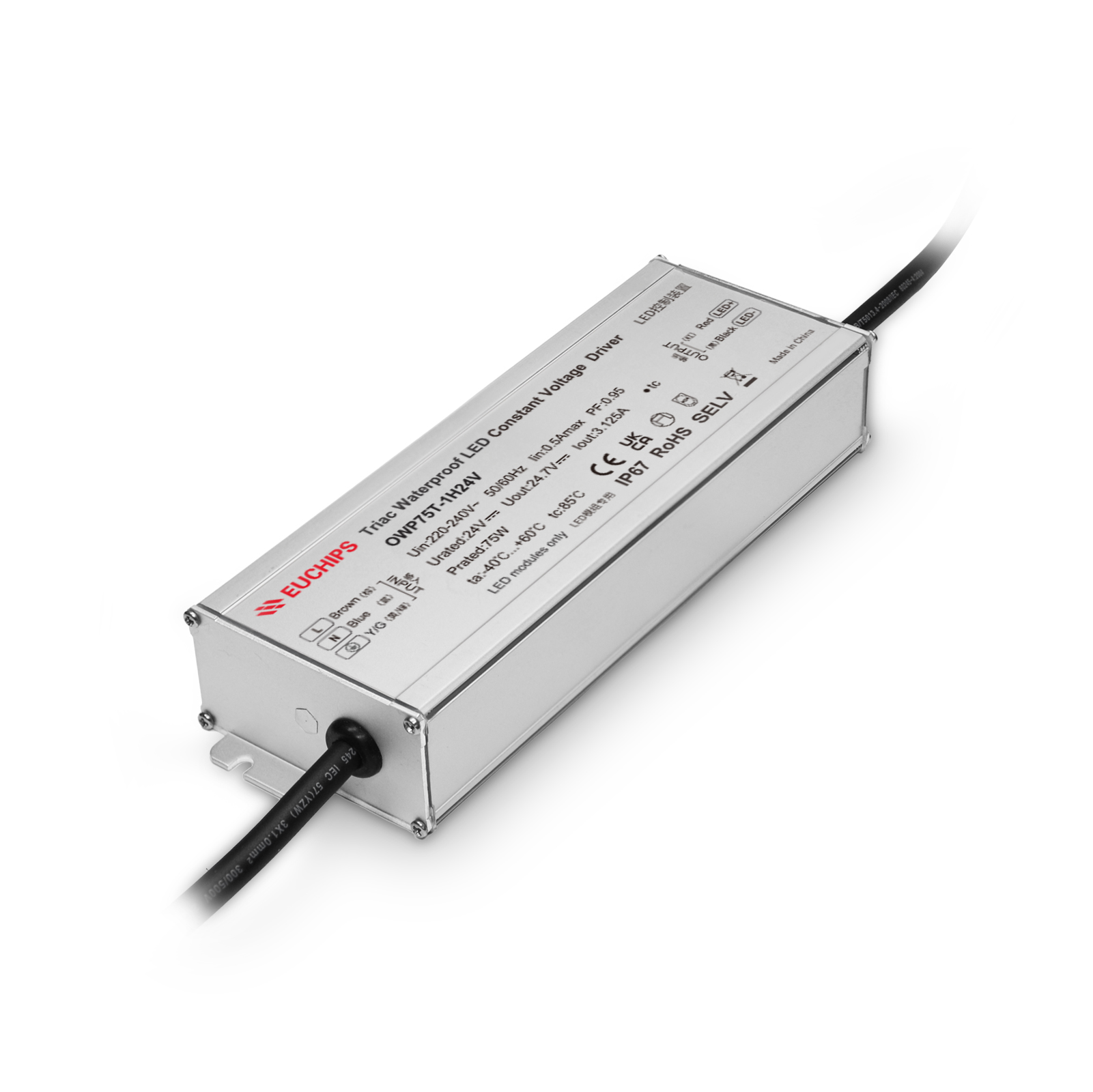

75W 24VDC Phase-cut Waterproof CV Driver OWP75T-1H24V
75W 24VDC Phase-cut Waterproof CV Driver OWP75T-1H24V
OWP75T-1H24V is a Triac/ELV constant voltage output LED dimming driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, to achieving a smooth dimming effect
Features
·Single-channel constant voltage output, with a maximum output current of 3.125A
·Supports Triac dimming, leading-edge and trailing-edge phase-cut dimming
·Waterproof rating of IP67, suitable for outdoor lighting
·Protection: overload, overcurrent, and short circuit protection
·With a lifespan of 50,000 hours and a 5-year warranty
Technical Parameters
| Model | OWP75T-1H24V | |
|
Input |
Efficiency | ≥87%@230VAC, full load |
| Frequency | 50/60Hz | |
| Voltage | 220VAC-240VAC | |
| Power Factor | ≥0.98, full load | |
| THD(full load) | <10%, full load | |
| Current | 0.38A@230VAC | |
| Inrush Current | Cold start, 38.2A@230VAC 490us, | |
| No load power | ≤2.3W@230VAC | |
| Turn on delay Time | <1.5s (@230VAC, When the light begins to shine) | |
|
Output |
Current | 3.125A |
| Voltage | 24VDC | |
| Output voltage range | 24VDC±3% | |
| Output power | 75W max | |
| Channel | 1 | |
| Overpower limit | ≥130% | |
| Ripple Voltage | ≤118mV（p-p） | |
| Frequency | 4KHz PWM | |
|
Protection |
Short Circuit | Output shutdown, auto-resume after fault cleared. |
| Over Current | Turn off the output, and it will recover automatically after the fault is eliminated | |
| Over Load | Turn off the output, and it will recover automatically after the fault is eliminated | |
|
Function |
Dimming Type | Triac Leading edge and trailing edge phase-cut dimming |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
|
Safety & EMC |
Surge | L-N: 6K VAC L-PE: 6K VAC N-PE: 6K VAC |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA | |
| Safety standards | EN61347-1，EN61347-2-13，EN62384 | |
| EMI Emission | EN55015，EN61000-3-2，EN61000-3-3，EN61547; | |
| Insulation Resisance | 5Mfi | |
|
Others |
Working Temp. | -40~+60°C |
| Storage Temp., Humidity | -40~+85°C, 20~90% RH | |
| tc | 85℃ for safety & life | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Material | Metal | |
| IP Rating | IP67 | |
| Dimension | 187*64*33mm (L*W*H) | |
| Packing(weight) | Net weight: TBDg±5%/PCS; 20PCS/Carton; TBDkg±5%/Carton; Carton Size: 347*233*214mm(L*W*H) | |
