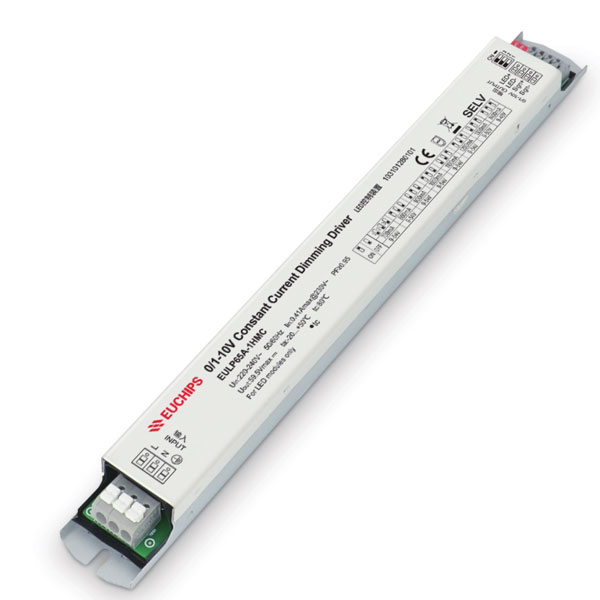

65W 700~1400mA*1ch 0/1-10V CC Driver EULP65A-1HMC
65W 700/800/900/1000/1100/1200/1300/1400mA Constant Current 0/1-10V Driver EULP65A-1HMC
EULP65A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to ≥87%
5. 100% output when no dimming signal input, can be used as normal power supply
6. Protections: Short circuit, over load
Technical Parameters
| Model | EULP65A-1HMC | |
| Input | Efficiency | ≥87%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | ≤10%@230VAC,Full load | |
| AC Current(max) | 0.41Amax@220VAC | |
| Inrush Current(max) | Cold start,25A@230VAC 120us | |
| No load Power | <0.5W | |
| Standby power | <0.5W | |
| Turn on delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
| Output | Current(mA)/Voltage (VDC)/Power(W) | 700mA/9-54V/37.8W 800mA/9-54V/43.2W 900mA/9-54V/48.6W 1000mA/9-54V/54W 1100mA/9-54V/59.4W 1200mA/9-54V/64.8W 1300mA/9-50V/65W 1400mA/9-46V/64.4W |
| Current Accuracy | ±5% | |
| Channel | 1 | |
| Ripple current | 3% | |
| No load output voltage | 59.5VDC max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.2%-100% | |
| Dimming curve | Linearity | |
| Flicker | No Flicker | |
| Protection | Short Circuit | Short circuit no output, troubleshooting output normal |
| Over Load | Reduce current hiccup protection, troubleshoot normal output | |
| Over Voltage | Reduce current hiccup protection, troubleshoot normal output | |
| Safety&EMC | Surge | L-N 1000VAC L/N-GND 2000VAC |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA O/P-Signal:1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-3-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20°C~50°C |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size:488*324*135mm(L*W*H) | |
| Dimension | 280*30*21mm（L*W*H） | |
