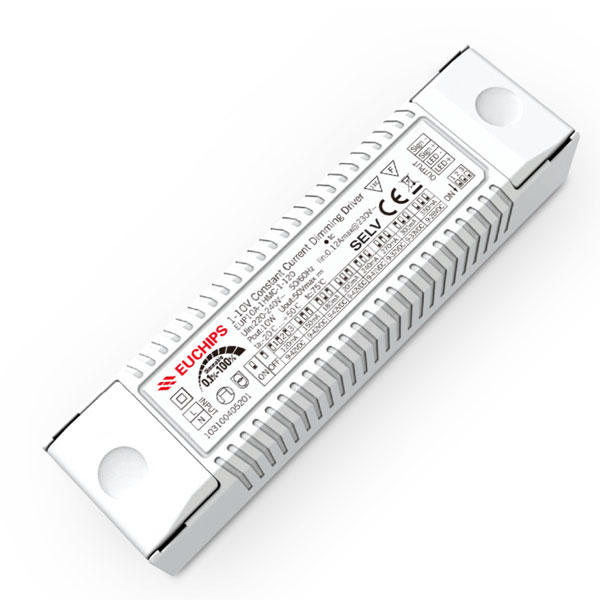

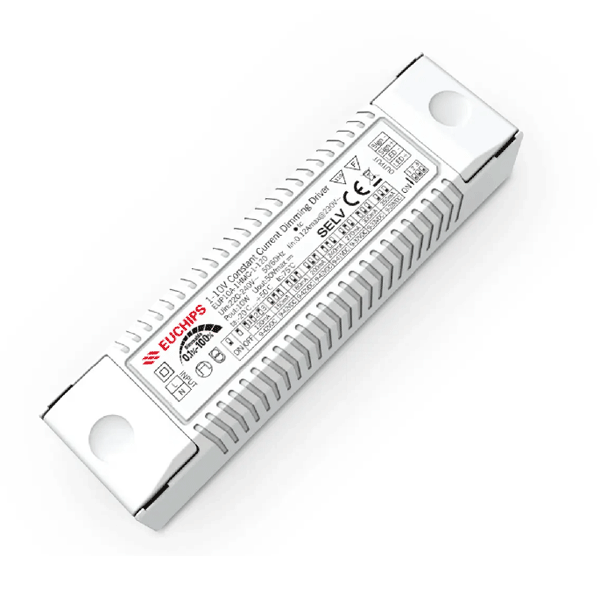

10W 120~350mA*1ch 0/1-10V CC Driver EUP10A-1HMC-1-120
10W 120~350mA 1-10V Constant Current Driver EUP10A-1HMC-1-120
EUP10A-1HMC-1-120 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal, or adjustable resistance to achieve the smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 75%
5. 100% output when no dimming signal input, can be used as normal power supply
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP10A-1HMC-1-120 | |
| Input | Efficiency | 75%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.5@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.12Amax@230VAC | |
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
| Output | Current/Voltage/Power | 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-40VDC/7.56W 200mA/9-42VDC/8.4W 240mA/9-41VDC/9.84W 270mA/9-37VDC/9.99W 300mA/9-33VDC/9.99W 350mA/9-28VDC/9.8W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% (*120mA±7% , *150mA±7%) | |
| No Load Output Voltage | 50V Max | |
| Standby Power | <1.5W | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.3%-100% Dimming to off | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 75℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:70℃ | |
| Warranty Condition | 3 years | |
| Warranty Condition | >15,000 times | |
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 515*235*140mm(L*W*H) | |
| Dimension | 110*30*22mm(L*W*H) | |
