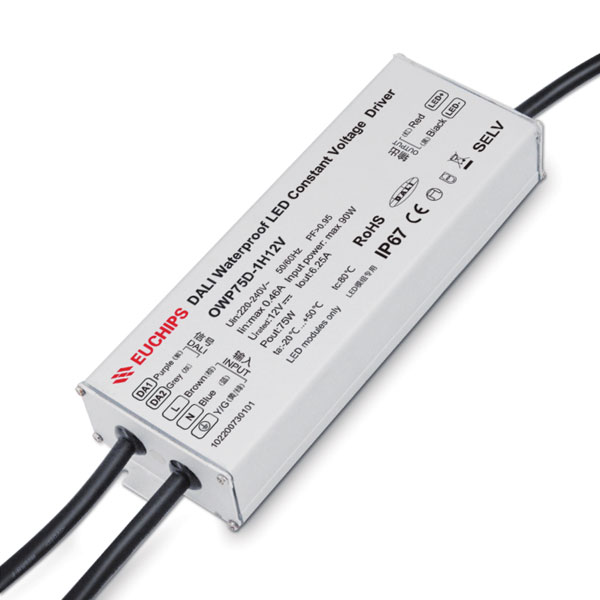

75W 12VDC DALI Waterproof CV Driver OWP75D-1H12V
75W 12VDC Waterproof DALI Constant Voltage Driver OWP75D-1M12V
OWP75D-1H12V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. LED driver featuring the dimming by DALI master/Touch DIM(PushDIM) switch, with smooth dimming curve and are flicker free.
Features
1. Single channel output with 12V CV direct current
2. Voltage input range from 220VAC to 240VAC
3. Built-in active PFC function
4. Meet DALI protocol IEC 62386-207
5. Support Touch DIM (Push DIM) function
6. Ultra-thin design, waterproof level IP67, high efficiency up to ≥85%
7. Dimming effect smooth, no flicker
8. Protections: short circuit, over load, over voltage, lightning protection
9. Suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on.
Technical Parameters
| Model | OWP75D-1H12V | |
| Input | Efficiency | ≥85%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%230VAC, Full load | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Current | 0.46Amax@230VAC | |
| Inrush Current | Cold start,45A@230VAC 240us | |
| Output | Direct voltage | 12VDC |
| Rated current | 6.25A | |
| Rated Power | 75W | |
| Ripple Voitage | ±3% | |
| Channel | 1 | |
| Protection | Short Circuit | Close output，recovers after fault condition is removed |
| Over Current | Reduce current hiccup protection, troubleshooting normal output | |
| Over Load | Hiccup recovers after fault condition is removedReduce current hiccup protection, troubleshooting normal output | |
| Safety&EMC | Surge | L-N 6000VAC L-N-PG 10000VAC |
| Withstand Voltage | I/P-O/P:3750VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Function | Dimming mode | DALI/Touch DIM(Push DIM) |
| Dimming range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Others | Working Temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 730g±5%/PCS; 20PCS/Carton; 15.1kg±5%/Carton; Carton Size: 347*233*214mm(L*W*H) | |
| Dimension | 187*64*33mm(L*W*H) | |
