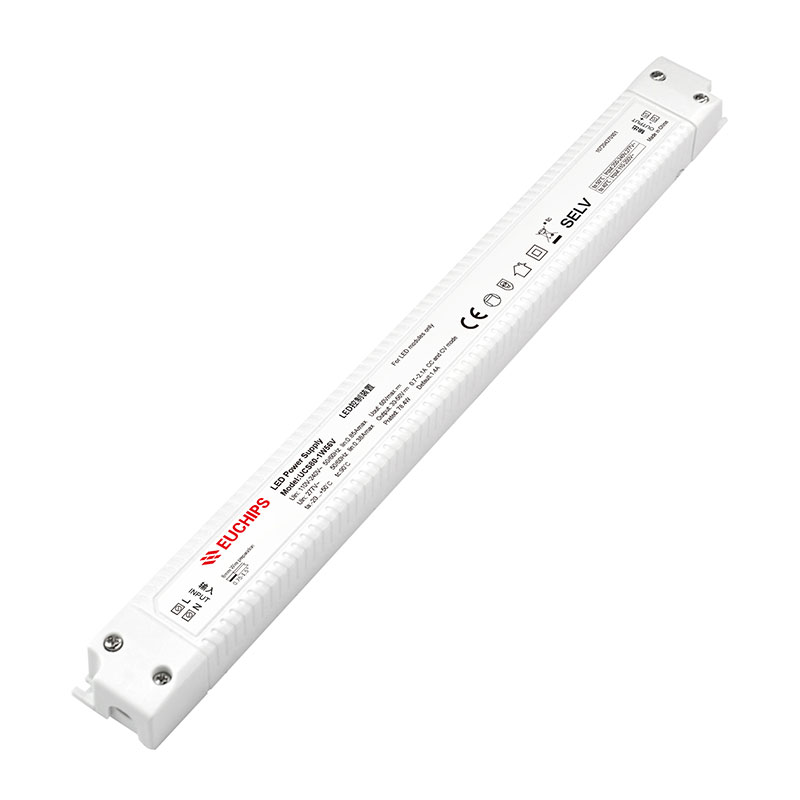

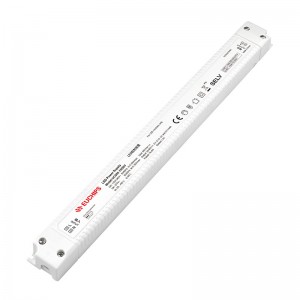

80W 56VDC Non-dimmable CV Driver UCS80-1W56V
80W 56VDC Non-dimmable CV Driver UCS80-1W56V
Features
· Current + Voltage Output Mode
· Short circuit, overcurrent, overload protection, V0 flame-retardant housing
· Slim-profile linear design for easy installation in confined spaces
· 50,000-hour lifespan with a 5-year warranty
· 100% full-load burn-in testing
· IP20 rating for indoor LED strip applications
Technical Parameters
| Model | UCS80-1W56V | |
| Input | Rated Voltage Range | 110VAC-305VAC |
| Rated Voltage | 110VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.85Amax@110VAC、0.45Amax@230VAC、0.38Amax@277VAC | |
| Power Factor | ≥0.97@230VAC, Full load | |
| Efficiency | >90%@110VAC , >92%@277VACFull load | |
| THD(full load) | <10%(@load≥60%/115VC,230VAC; @load≥75%/277VAC) | |
| Leakage current | <0.25mA / 277VAC | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Inrush Current | Cold start 50A(Test twidth=270us at 50% Ipeak)/230VAC; Per NEMA 410 | |
| Output | Output Voltage | 56VDC |
| Constant Current Range | 30-56V | |
| Current adjustment range | 0.7~2.1A | |
| Full power current range | 1.4~2.1A | |
| Output current accuracy | ±5% | |
| Output default current | 1.4A | |
| Output Power Range | 78.4W | |
| Strobe (depth of fluctuation) | IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard（IEEE Std 1789-2015） | |
| Line regulation | ±0.5% @Full load | |
| Load regulation | ±1.5% @Full load | |
| Turn on Time | 500ms, 80ms/115VAC, 230VAC | |
| Protection | Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overload | 110-150% hiccup mode can automatically recover after the abnormal load conditions are removed | |
| overvoltage | 60-70V belching mode can automatically recover after the abnormal load conditions are removed | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standard | UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, | |
| BS EN/EN62384; EAC TP TC 004,GB19510.1,GB19510.14,IS15885(Part2/Sec13) ,EN60335-1 Certification passed | ||
| EMC | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMI | RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |
| EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 90℃ | |
| material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 312*30*18mm (L*W*H) | |
| Packing(weight) | Net weight: 170g±5%/PCS; 50PCS/Carton; 9kg±5%/Carton; Carton Size:435*346*100mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
