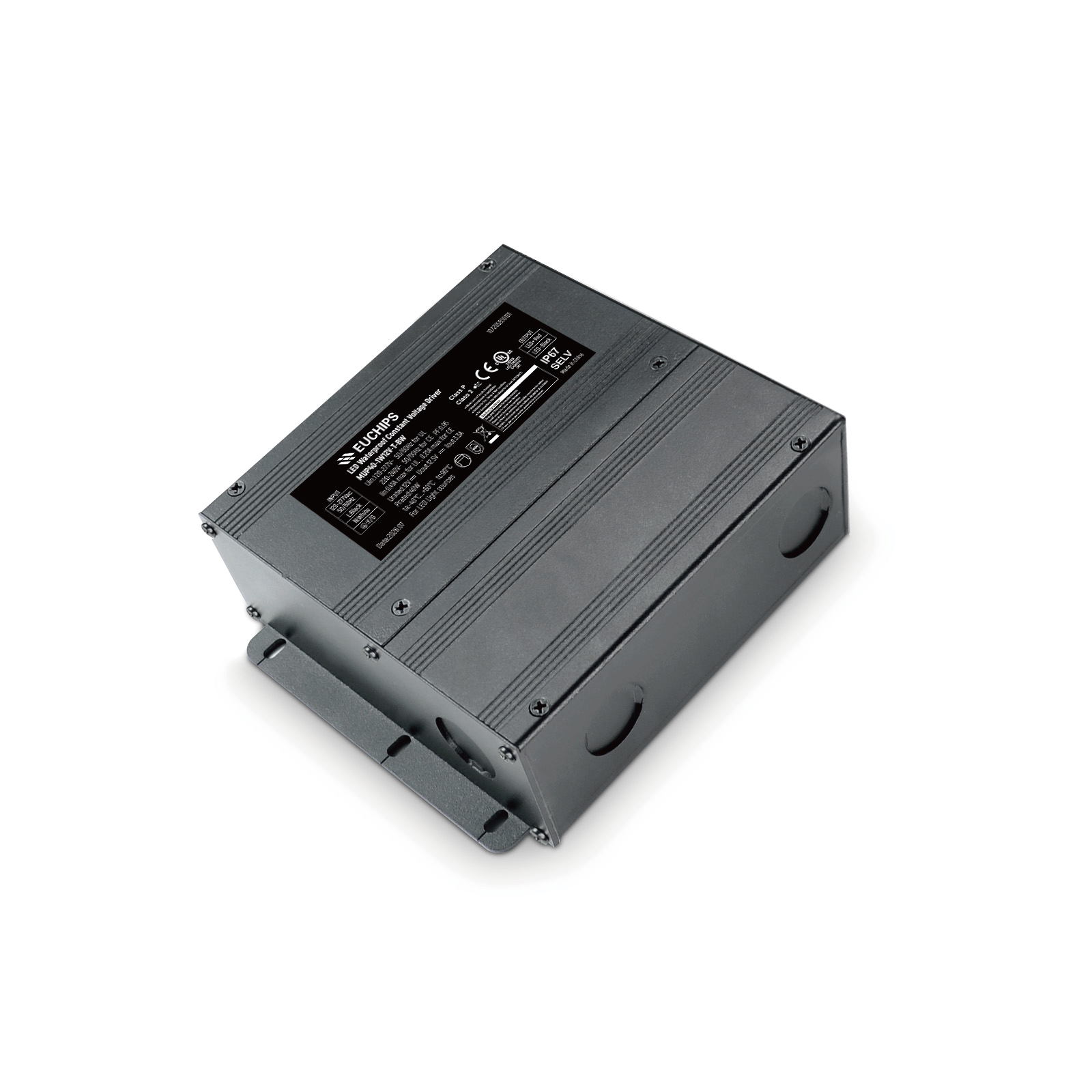

40W 12VDC Non-dimmable CV Driver MUP40-1W12V-T-BW
Features
- Single-channel 12V constant voltage output, up to 3.3A / 40W
- Wide input voltage range: 120–277Vac
- Extended ambient operating temperature range: -40°C to +60°C
- Built-in over-temperature protection with automatic power derating
- Comprehensive protection: short circuit, overload, overcurrent, and over-temperature
- 50,000-hour lifetime at tc = 85°C
- 5-year warranty
- Flicker-free output
- Safety according to UL8750 & UL 1310
- Suitable for Dry , Damp & Wet Locations
Technical Parameters
|
Model |
MUP40-1W12V-T-BW | |
|
Input |
Efficiency | ≥85%@120VAC, ≥87%@230VAC, ≥87%@277VAC, full load |
| Voltage | 120VAC-277VAC for UL, 220-240V~for CE | |
| Input voltage range | 108VAC-305VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.41A@120VAC, 0.21A@230VAC, 0.175A@277VAC, full load | |
| PF | ≥0.95@120VAC, ≥0.95@230VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <10%@230VAC, <10%@277VAC, full load | |
| Inrush Current(max) | Cold start, , 20A@120VAC 186us, 30A@230VAC 200us, 34A@277VAC 200us | |
| No-load power | <0.5W(@120VAC-277VAC) | |
| Turn on Time | <0.50s(@120VAC-277VAC)(When the light begins to shine) | |
|
Output |
Current | 3.3A |
| Voltage | 12VDC | |
| Voltage Range | 12VDC±3% | |
| Power | 40W | |
| Channel | 1 | |
| Overpower Limit | ≥135% | |
| Ripple | ≤120mV Test condition: pure resistive load, output connected via 15 cm twisted-pair wires, with a 47μF electrolytic capacitor and a 0.01μF ceramic capacitor connected in parallel at the load end (20 MHz bandwidth). | |
|
Protection |
Short Circuit | Output shut down, auto-recover after fault cleared. |
| Overload | Current reduction hiccup protection, auto-recover after fault cleared. | |
| Overcurrent | Current reduction hiccup protection, auto-recover after fault cleared. | |
| Overtemperature | Power reduces to 50% at 70-80°C ambient (tc 90-100°C); auto-recovery when temperature drops. | |
|
Safety&EMC |
Surge | L-N: 6kV, L-PE: 6kV, N-PE: 6kV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA | |
| Safety standards | EN61347-1, EN61347-2-13, UL8750, UL1310, UL879 | |
| EMI | EN55015@230VAC, FCC Part 15 Class B@120/277VAC | |
| Insulation Resistance | 5Mfi | |
|
Others |
Working Temp. | -40℃~+60℃ (-40°F~140°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F~185°F), 20-95%RH | |
| tc | 85℃ (185°F) for safety & 8 life | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Dimension | 150*106*41.5mm(5.91*4.17*1.63 Inch)(L*W*H) | |
| Packing(weight) | Net weight: 617g(1.23 lb)±5%/PCS; 18 PCS/Carton;11.5kg(25.35lb)±5%/Carton; Carton Size: 327*327*166mm(12.87*12.87*6.54 Inch)(L*W*H) | |
