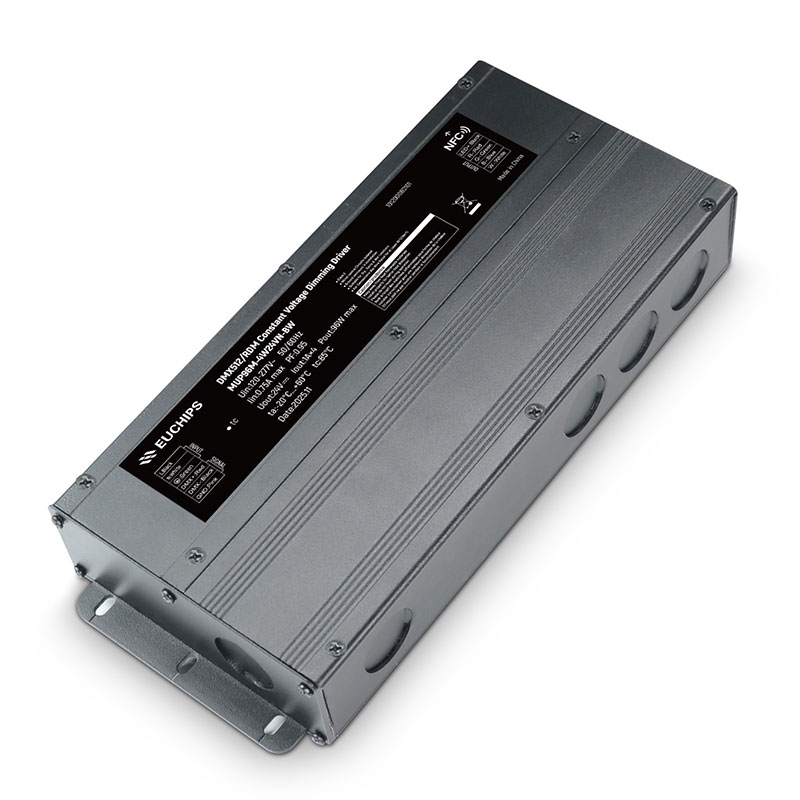

96W 24VDC 4ch DMX/RDM CV Driver MUP96M-4W24VN-BW
96W 24VDC 4ch DMX/RDM CV Driver MUP96M-4W24VN-BW
Features
·4-channel constant voltage output, with a maximum output current of 1A per channel.
·Supports DMX512 signal.
·The number of output channels is 4.
·NFC-enabled for reading and writing DMX addresses and adjusting output voltage.
·Smooth dimming curve, free from flicker.
·Equipped with output short-circuit protection and overload protection, And overcurrent protection
·50,000 hours lifespan @tc85℃(185°F).
·5-year warranty @tc85℃(185°F).
·UL Class 2.
·Safety compliance with UL8750 & UL 1310.
·Suitable for Dry , Damp & Wet Locations
Technical Parameters
|
Model |
MUP96M-4W24VN-BW | |
| Input | Efficiency | ≥88%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.75Amax @120VAC, 0.35Amax@230VAC, 0.30Amax@277VAC | |
| PF | ≥0.95@120VAC, ≥0.90@277VAC, full load | |
| THD | <10%@120VAC, <20%@277VAC, full load | |
| Inrush Current(max) | Cold start,20.30A@120VAC 264us | |
| Standby power | <2.0W@120VAC | |
| No load power | <2.0W@120VAC | |
| Start-up Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 4 channels, each with 1A |
| Voltage | 24VDC | |
| Voltage Range | 24-26VDC ±5%(The voltage can be adjusted via NFC) | |
| Power | 96W | |
| Channel | 4 | |
| Overpower limit | 104% | |
| Ripple Voltage | ≤200mV | |
| PWM Frequency | 4KHz PWM | |
| Function | Dimming Type | DMX512/RDM |
| Dimming Range | 1%-100% (DMX) | |
| Dimming curve | Logarithm/Linearity (NFC Programming) | |
| Flicker | Flicker free | |
| Protection | Short Circuit | No output, Auto-Recover when fault removed |
| Overload | Hiccup Protection, Auto-Recover when fault removed | |
| Overcurrent | Hiccup Protection, Auto-Recover when fault removed | |
| Safety&EMC | Surge | L-N:6kV L-N-PG:6kV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-Signal:500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART 15 Class B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5Mfi | |
| Others | Working Temp. | -20℃~60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F-185°F), 20-90%RH | |
| tc | 85℃ (185°F) | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 930g(2.05 lb)±5%/PCS; 12PCS/Carton; 11.16kg(24.60 lb)±5%/Carton; Carton Size:314*263*249mm(12.36*10.35*9.80 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.633 Inch)(L*W*H) | |
