Features
- Device list: control feedback, update status
- Supports scene function: add scenes
- Automation function
- Security function
- Clock: local clock, network clock, automatic synchronization of network time
- System detection, device status reporting: device online status, offline status, device abnormal information
- Drive management of third-party products
- Factory reset function
- Data backup and data recovery function
Technical Parameters

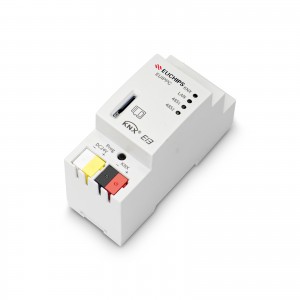

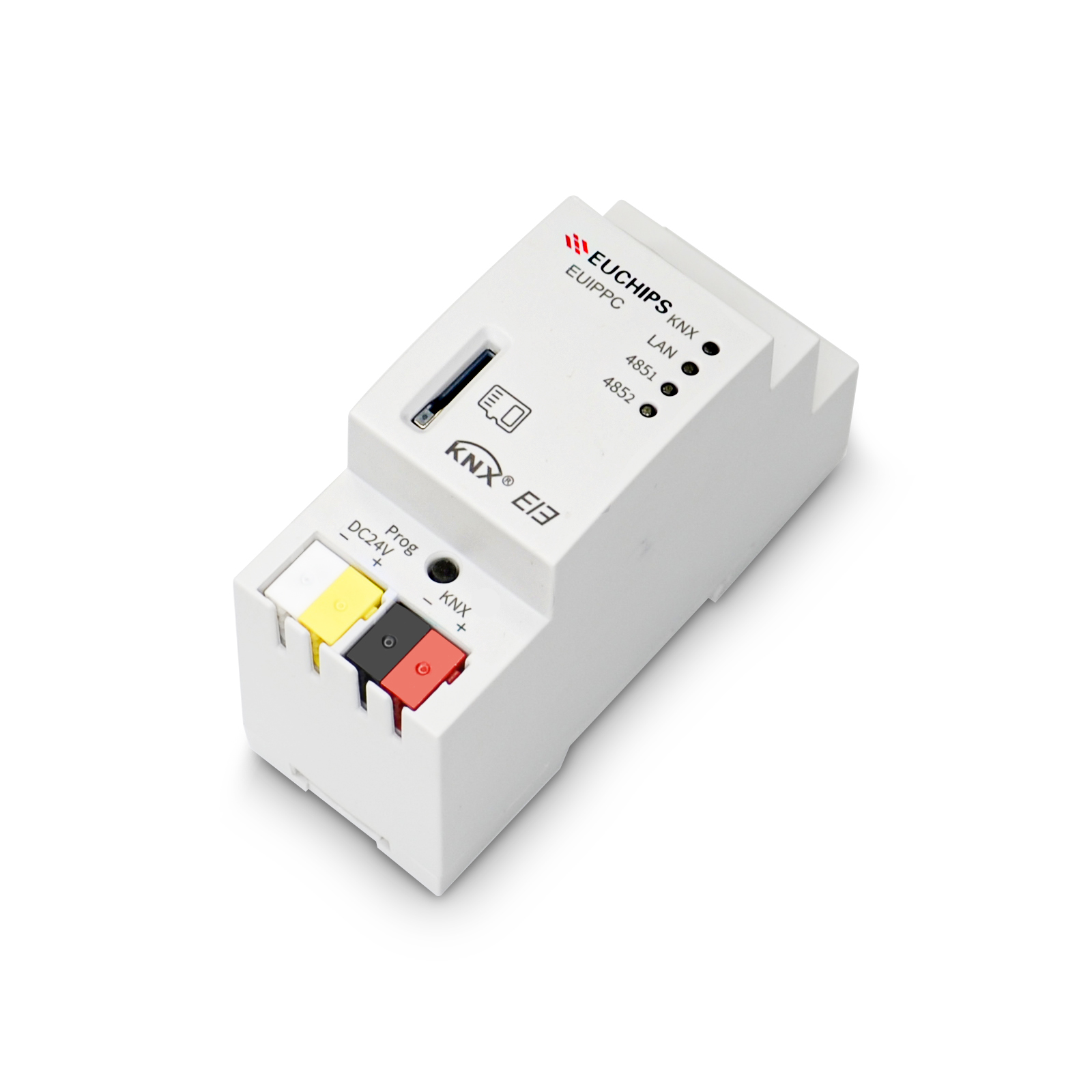

| Product Model |
EUIPPC |
| Rated voltage |
30VDC |
| Rated current |
20mA/30VDC |
| Auxiliary voltage |
20~30VDC |
| Auxiliary current |
200mA/24VDC |
| Communication protocol |
KNX, RS485, Ethernet |
| Cable diameter of KNX terminal |
0.6-0.8mm |
| Interface |
KNX connector*1 Auxiliary power supply*1 RS485 connector*2 RJ45 port*1 SD card slot*1 |
| Operation system |
Linux |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounted |
| Installation size |
36mm×63.7mm×90mm |
| Net weight |
87g |
| Housing material |
Flame-retardant Nylon |
Previous:
KNX Panel EUK04.1
Next:

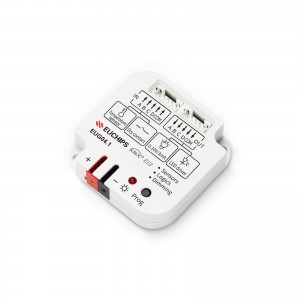

4ch Dry Contact input/0utput Module EUG04.1
