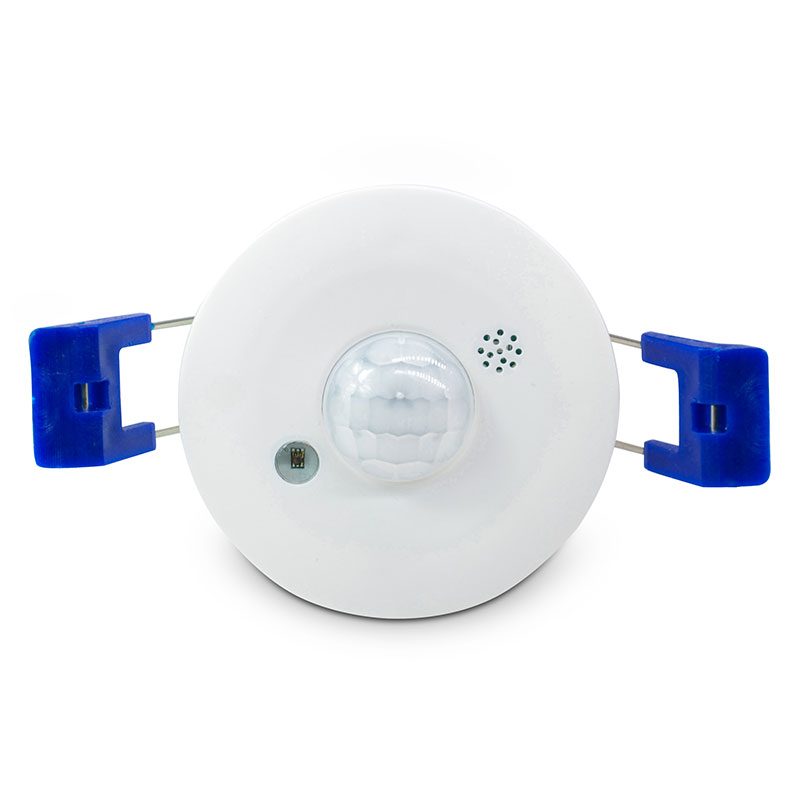

Infrared Mobile Sensor KNX-EUR02
Infrared Mobile Sensor KNX-EUR02
Features
· The function of cyclic output of illuminance values
· 2 illuminance control channels, capable of outputting 1-bit, 4-bit, and 1-byte data
· Infrared movement trigger control function
· Infrared movement and brightness logic function
· The master-slave function of infrared movement
· The channel control output function for enabling or disabling the movement of illuminance and infrared through the object
· The function of combining illuminance and movement to jointly control the lighting
· Infrared mobile and illuminance dual-in-one sensor
Technical Parameters
| Product model | KNX-EUR02 |
| Bus voltage | 21-30VDC |
| Bus current | ≤ 12mA |
| Working power | ≤ 360mW |
| Sensing distance | The installation height is 2.5m to 3m, and the radiation range is 5m to 7m |
| Product size | Height H=45mm, diameter D=60mm |
| Opening size | Φ46mm ≤d ≤52mm |
| Installation method | Embedded installation |
| Shell material | ABS |
| Weight | 0.05kg |
| Working temperature | -5°C- 45°C |
| Storage temperature | - 20°C…+55°C |
| Transportation temperature | - 20°C-…+70°C |
| Relative humidity | max 90% |
