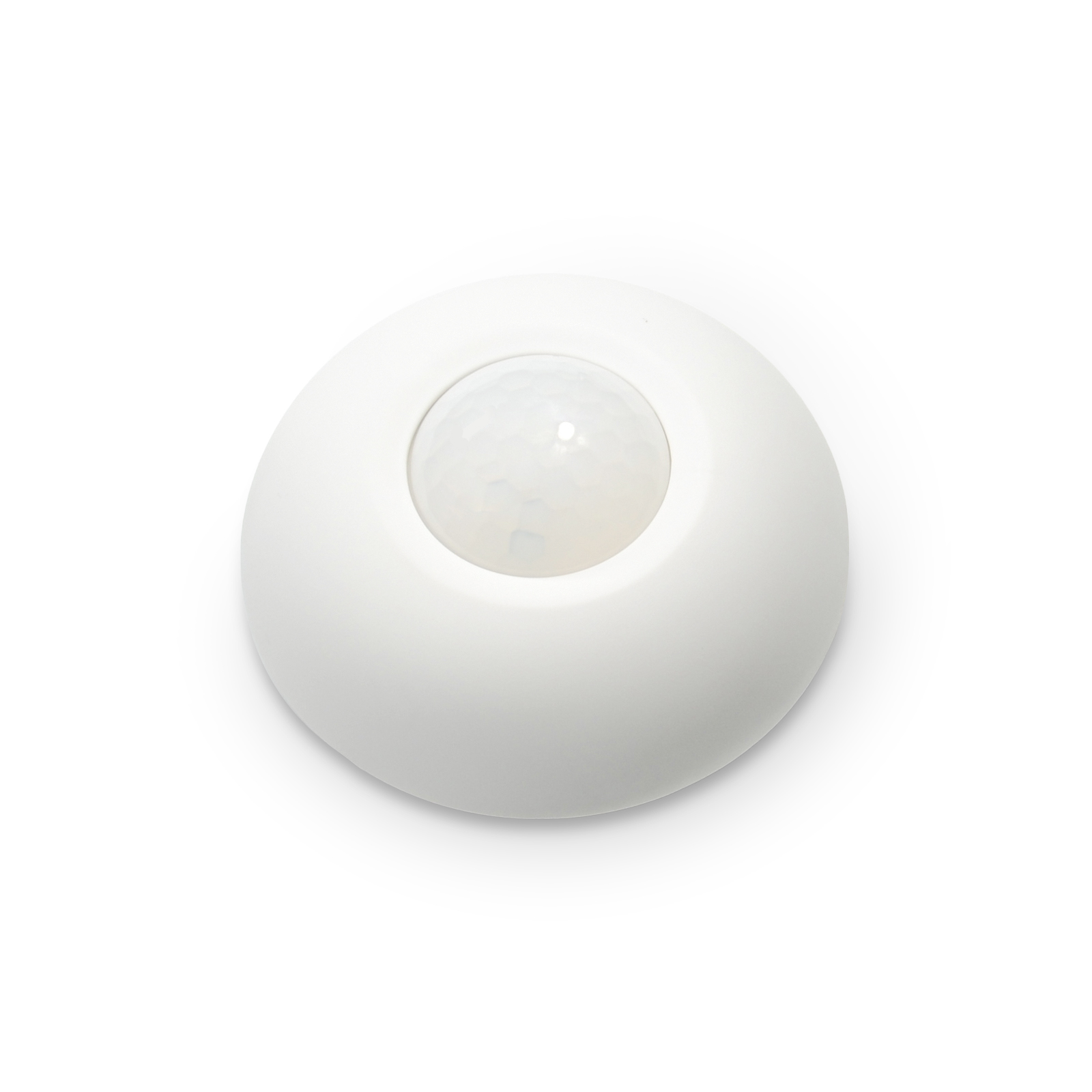

PlR Sensor with Lux Sensor EUKR01.1

Features

• KNX communication protocol
• Online setting and configuration via Engineering Tool Software (ETS)
• 5 logical blocks: each block configures with 10 object outputs. Dry contact, telegram lock/unlock and delay unlock time can be set. Sending on/off telegram can be set when processing lock or unlock.
• 5 conditions for logic inputs: PIR sensor status, brightness value, temperature, dry contact status and external telegrams.
• 2 logical relations: AND, OR. Either of the logical relations can set.
• Logic validity can be set by external telegram.
• 2 working modes: single mode, master/slave mode.
• 2CH lighting control: each channel supports four selections for brightness level and delay time setting. With such a gradually dimming effect, the device supports automatic or semi-automatic mode. Telegram lock/unlock and delay unlock time can be set. Sending on/off telegram can be set when processing lock or unlock.
• 2CH constant brightness control: dimming values and forced dimming can be set.
• 2CH dry contact interface can be used for dry contact termination and LED status display. The types for dry contact targets include switches, dimming devices and scenes.
• Types for control targets: Switches, absolute dimming devices, curtains, alarms, scenes, percentage control, sequence control, string (14 bytes) control, threshold control, and logic combination control

Technical Parameters
